Back Door Closer does not Operate (To 8/2009): Wiring Diagram

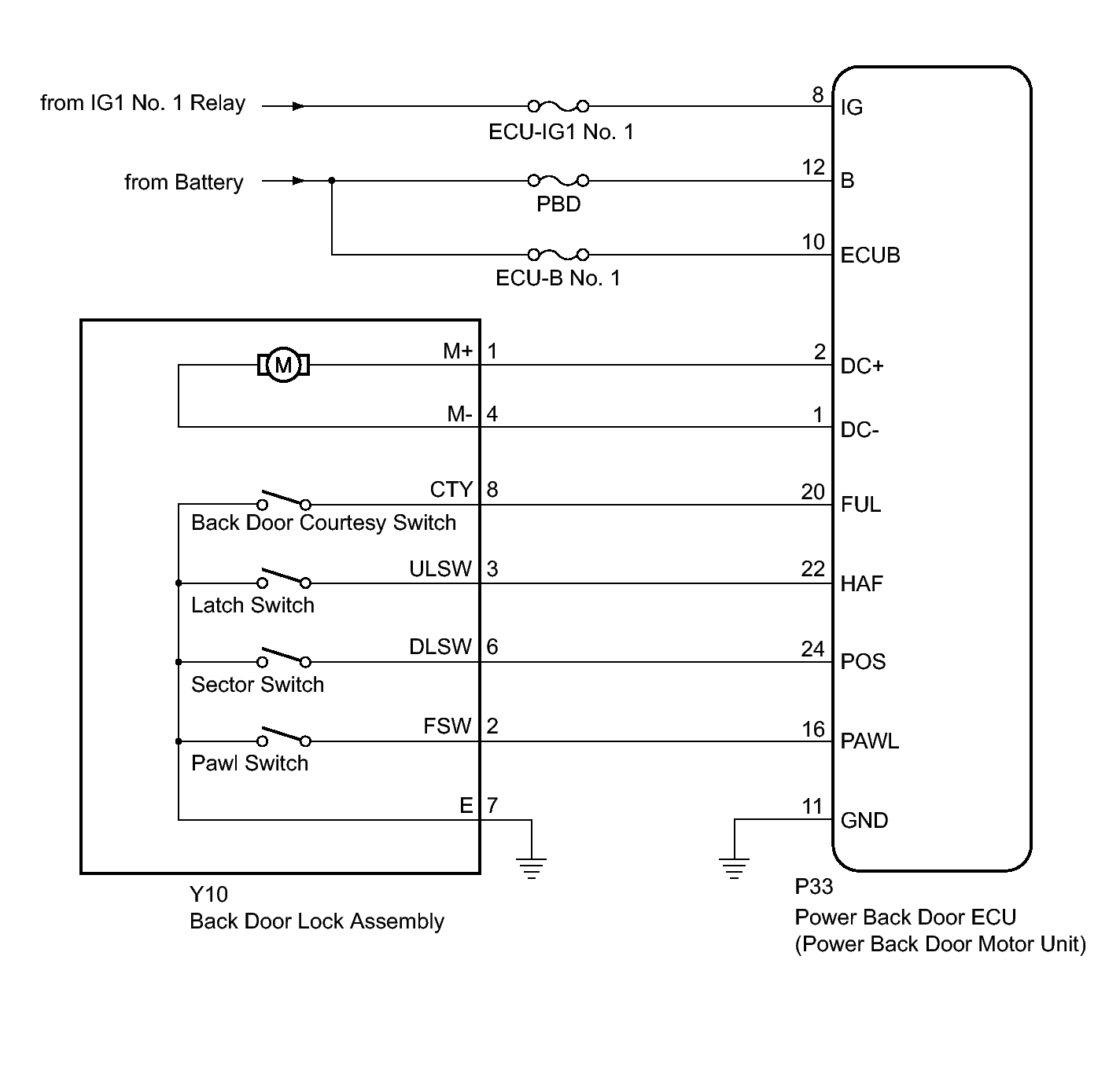

Fig 1: Identifying Back Door Closer Wiring Diagram

GTY264497

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
