REMOVAL (To 8/2009): Removal

PRECAUTION (w/ Air Suspension)
NOTE:
Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION .
REMOVE FRONT WHEEL RH
REMOVE FRONT FENDER LINER RH
1. Using a screwdriver, turn the pin 90 degrees and remove the 2 pin hold clips.

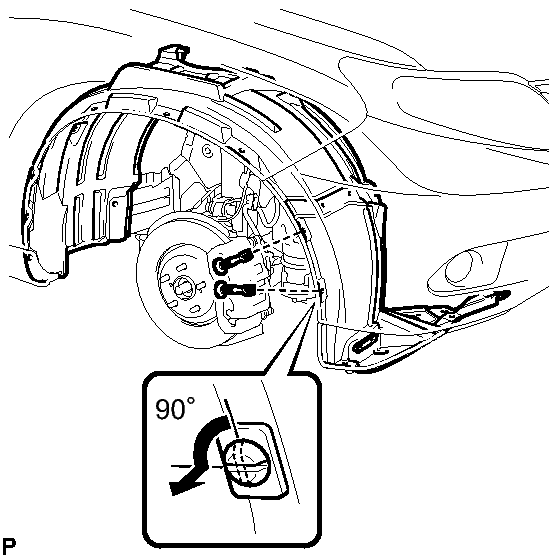

  Fig 1: Turn The Pin 90 Degrees
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a 4 mm hexagon wrench, remove the 4 hexagon screws.

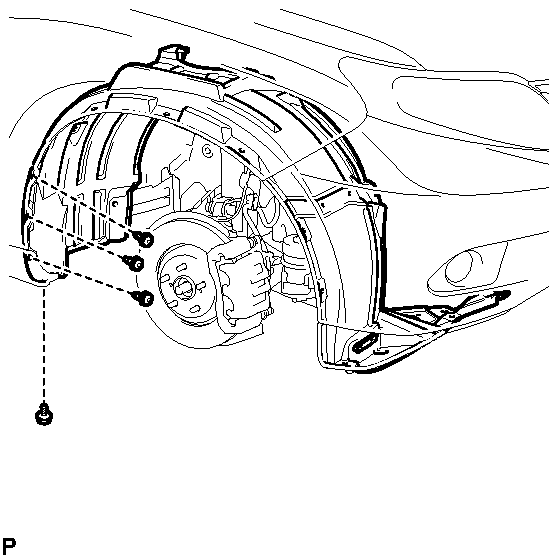

  Fig 2: Remove The 4 Hexagon Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 7 clips and 6 screws.

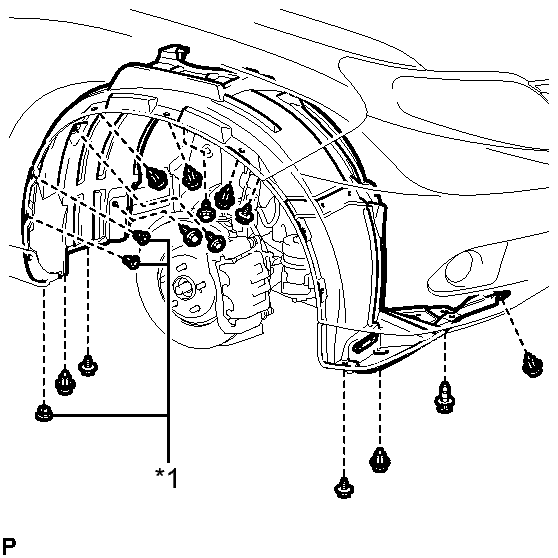

  Fig 3: Remove the 7 Clips And 6 Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Grommet
4. Remove the 3 grommets and front fender liner RH.
  HINT:

  The grommets need to be replaced with new ones because they will break when they are removed.
DRAIN WASHER FLUID
1. Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.
  HINT:

  Use a container to collect the washer fluid.

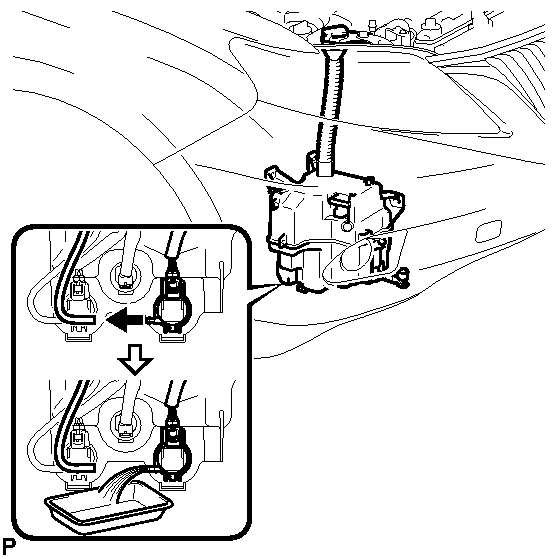

  Fig 4: Disconnect The Washer Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT WASHER MOTOR AND PUMP ASSEMBLY
1. Disconnect the connector.

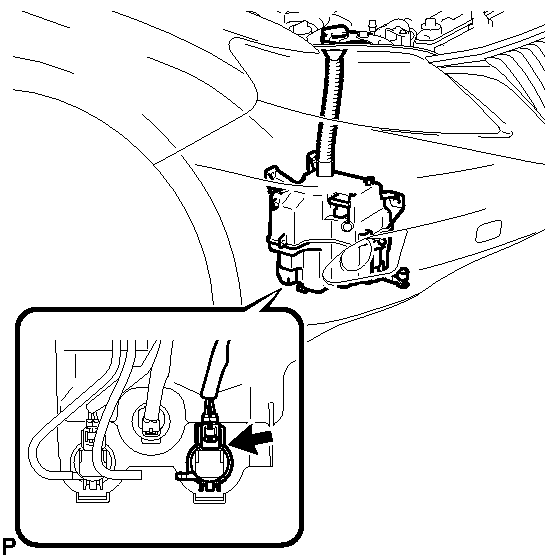

  Fig 5: Disconnect The Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the windshield washer motor and pump assembly.
  HINT:

  Use a container to collect the washer fluid.
