Switch Lights of Remote Touch Always Illuminate or cannot be Controlled Using Rheostat (To 8/2009): Wiring Diagram

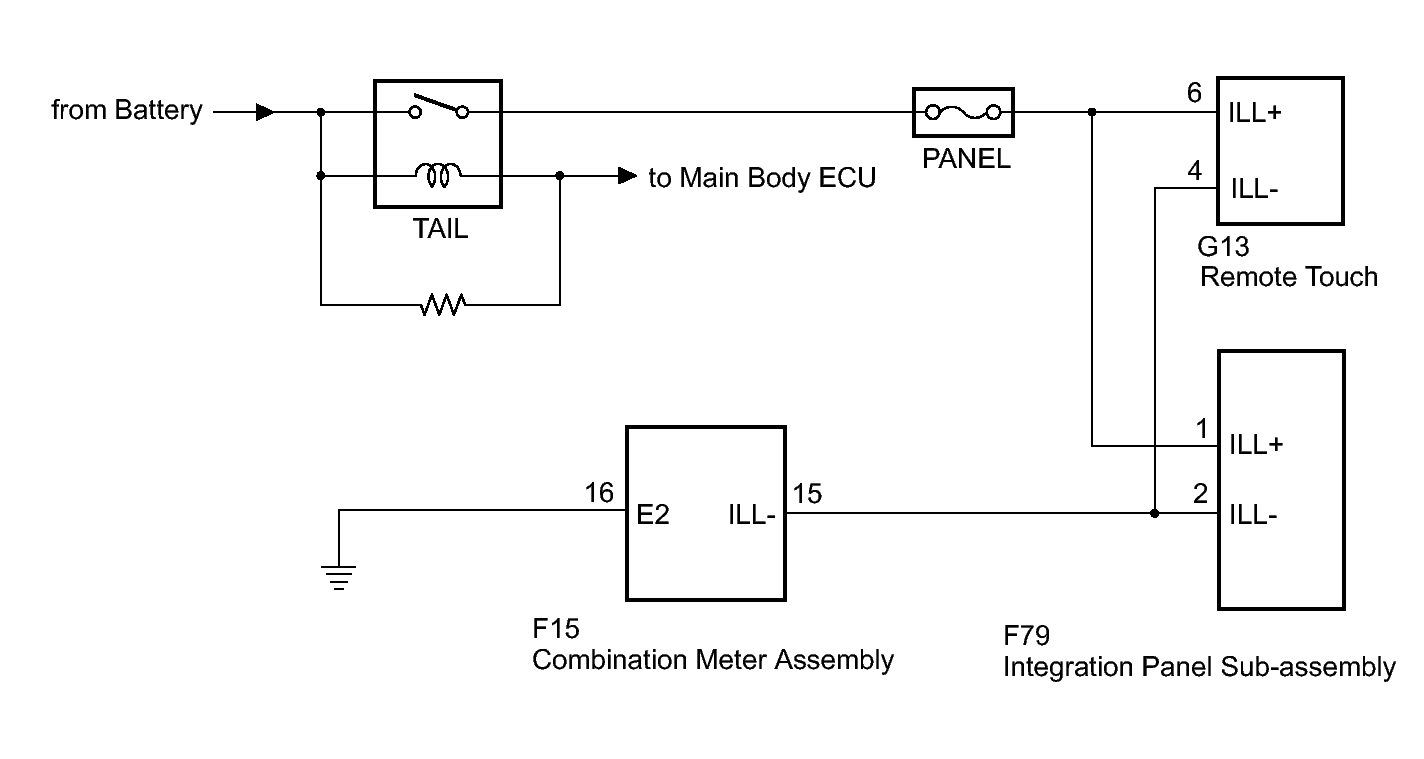

Fig 1: Identifying Switch Lights Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
