Navigation ECU Power Source Circuit (To 8/2009): Wiring Diagram

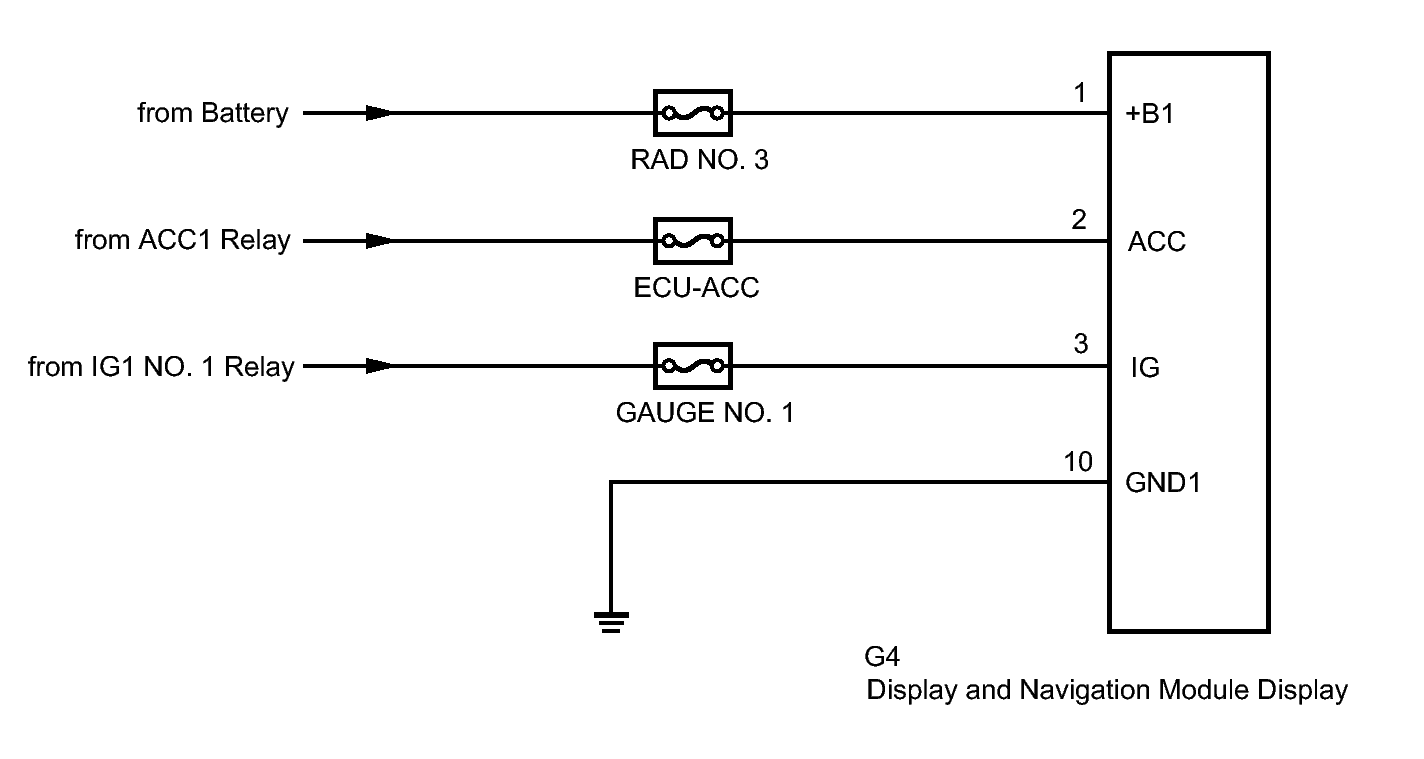

Fig 1: Identifying Navigation ECU Power Source Circuit

GTY278920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
