DVD Image Signal Circuit between Navigation ECU and Multi-display (To 8/2009): Wiring Diagram

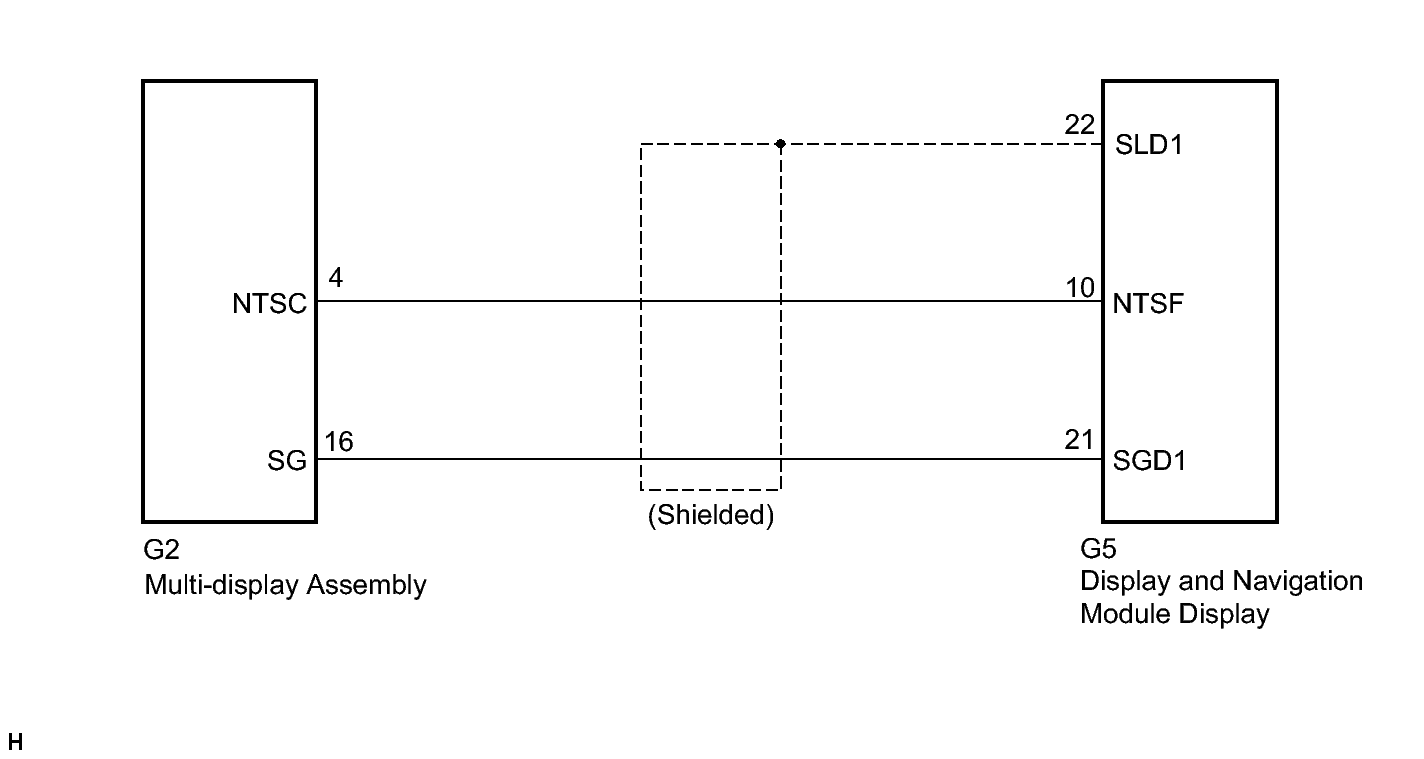

Fig 1: Identifying DVD Image Signal Circuit Wiring Diagram

GTY281051

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
