Vehicle Speed Signal Circuit between Radio Receiver and Combination Meter (To 8/2009): Wiring Diagram

for 2GR-FE:

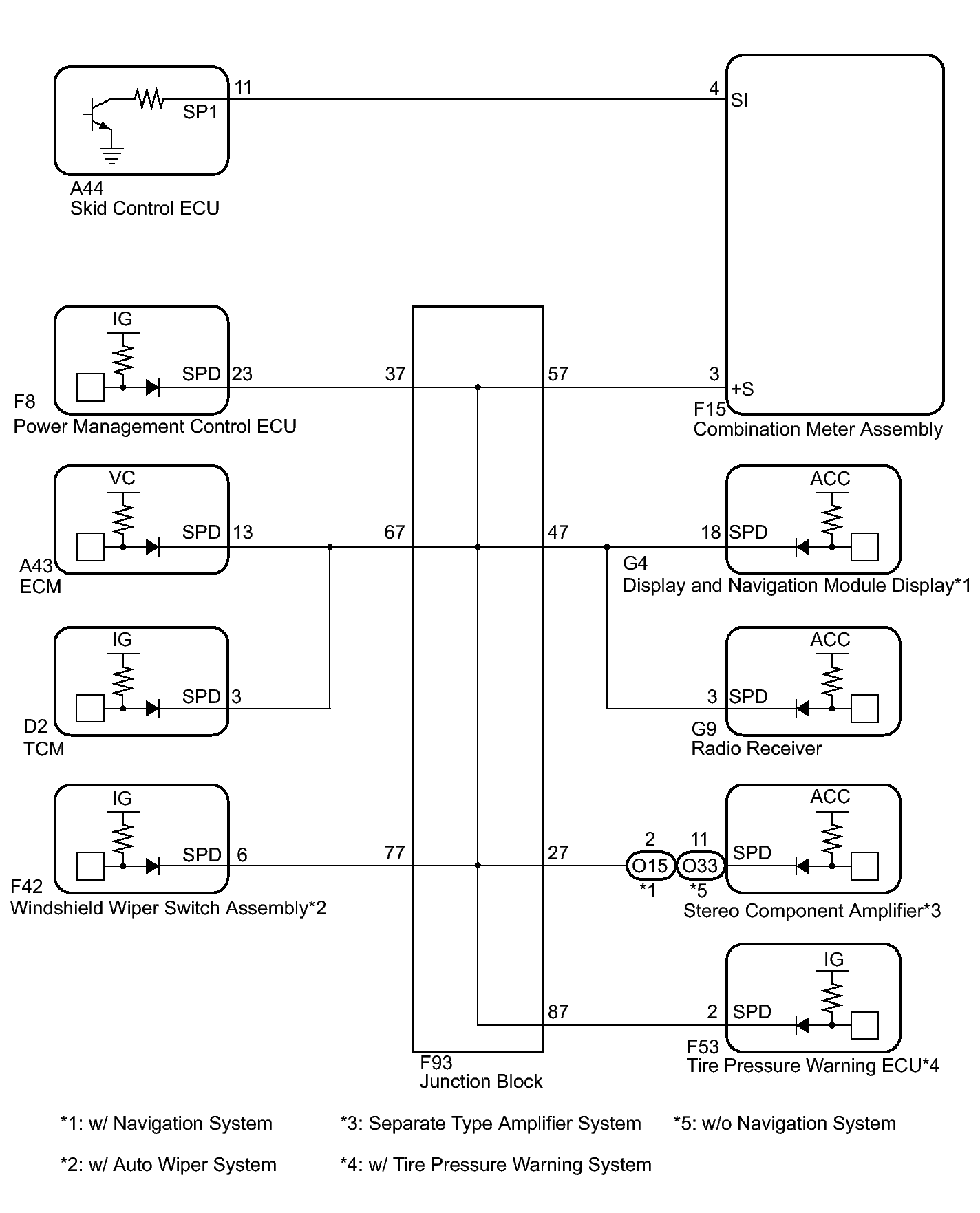

Fig 1: Identifying Vehicle Speed Signal Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
