Steering Pad Switch Circuit (To 8/2009): Wiring Diagram

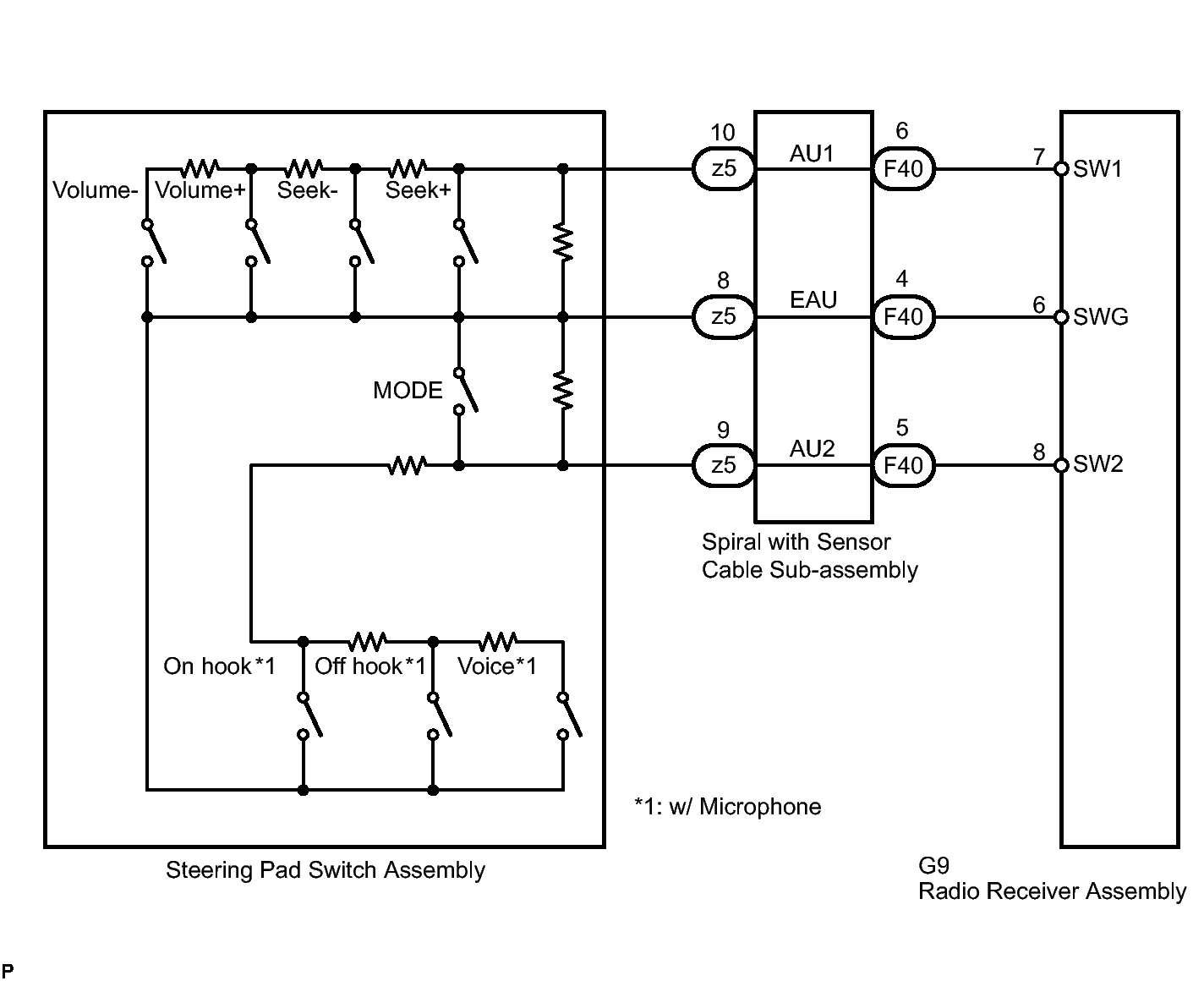

Fig 1: Identifying Steering Pad Switch Circuit Wiring Diagram

GTY284168

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
