Speaker Circuit (To 8/2009): Wiring Diagram

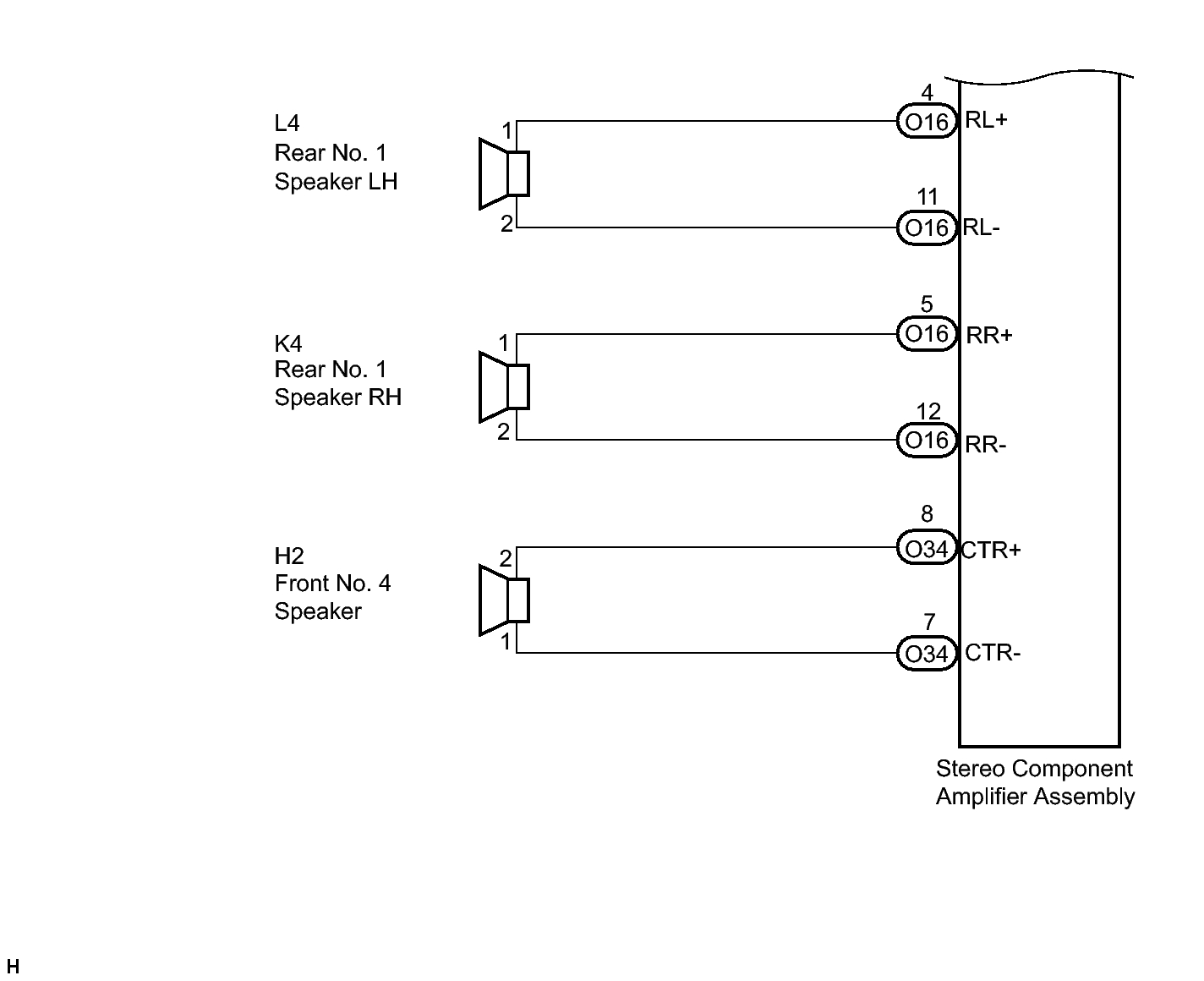

Fig 1: Identifying Speaker Circuit Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

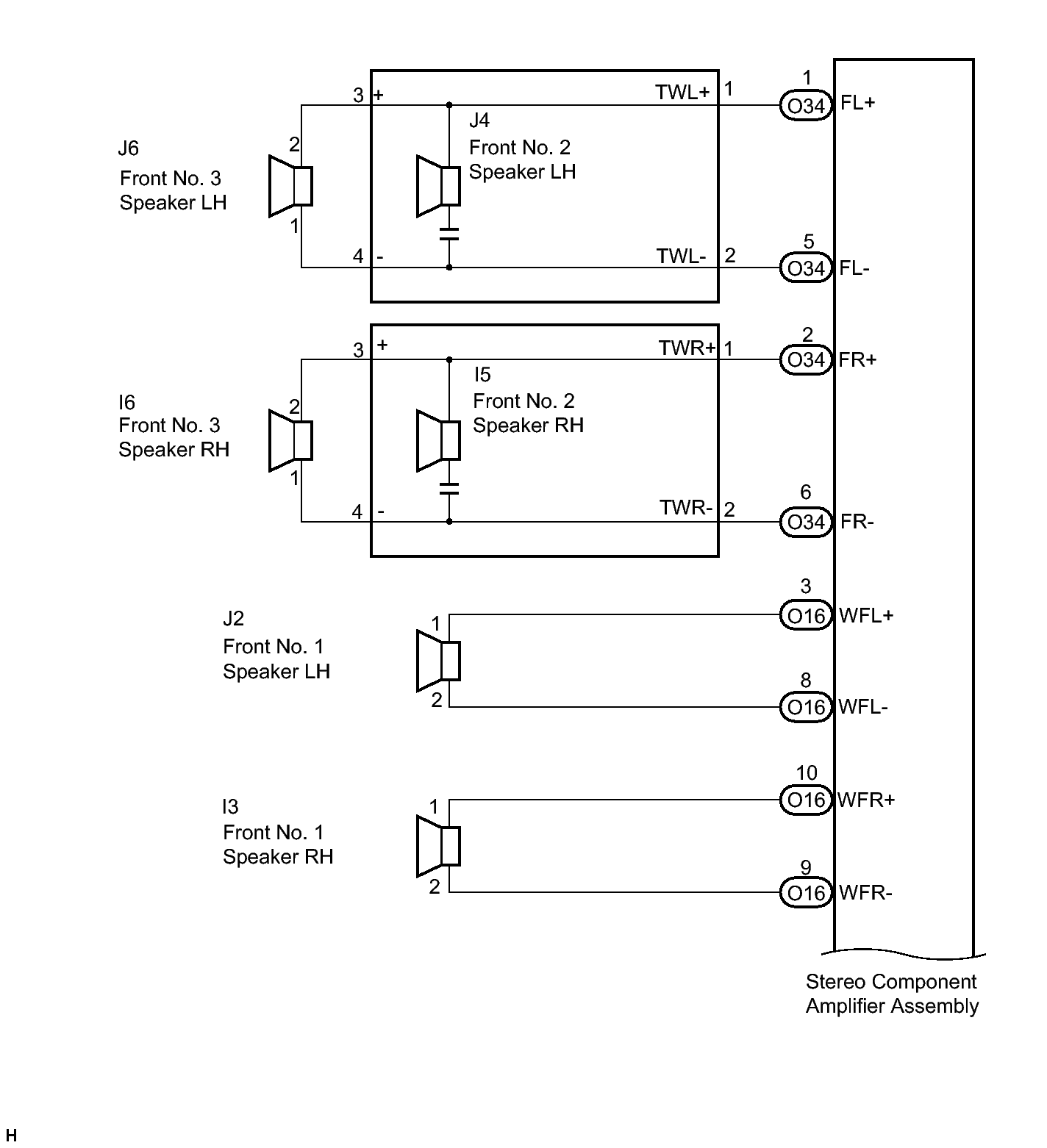

Fig 2: Identifying Speaker Circuit Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
