Radio Receiver Power Source Circuit (To 8/2009): Wiring Diagram

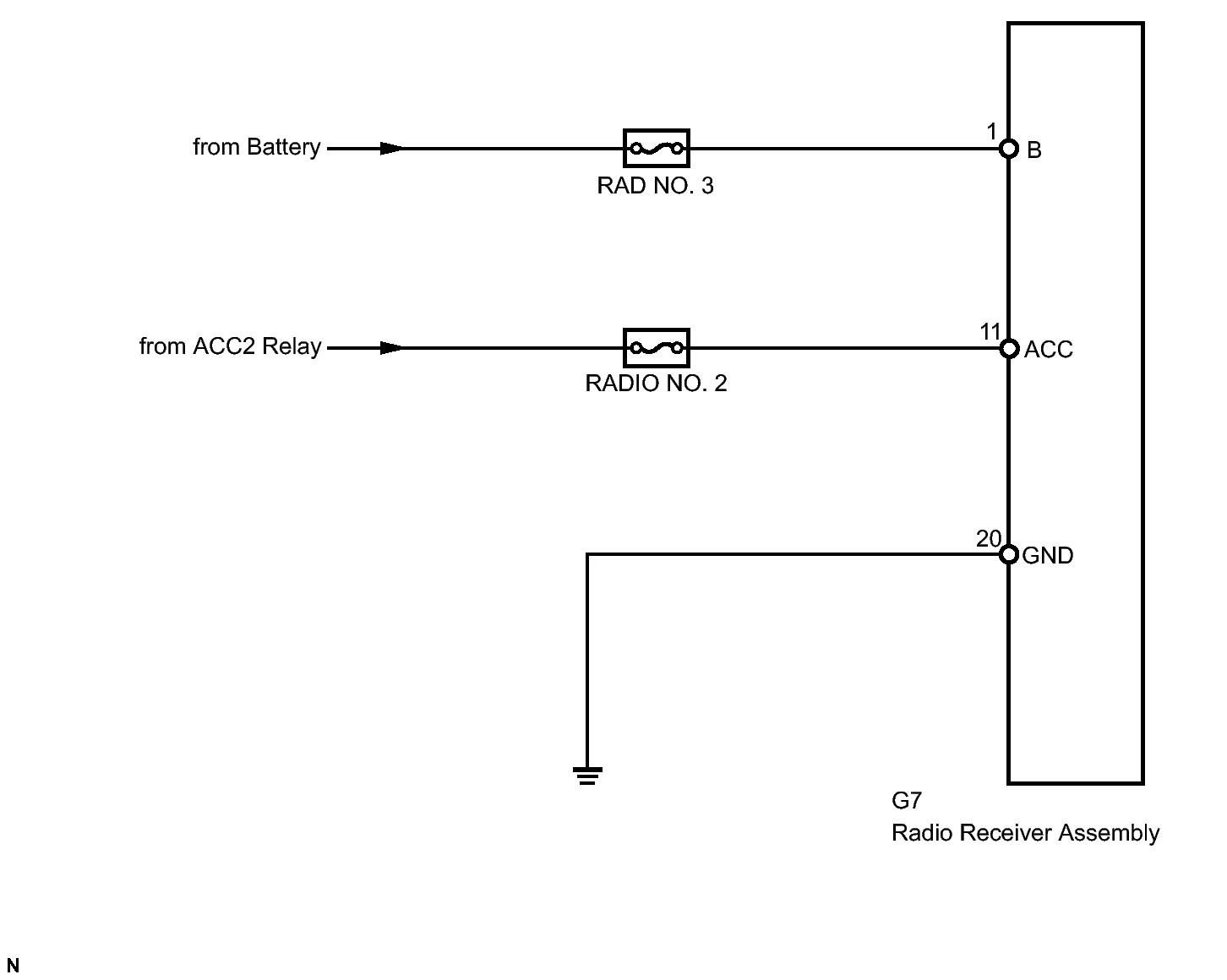

Fig 1: Identifying Radio Receiver Power Source Circuit Wiring Diagram

GTY261075

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
