Illumination Circuit (To 8/2009): Wiring Diagram

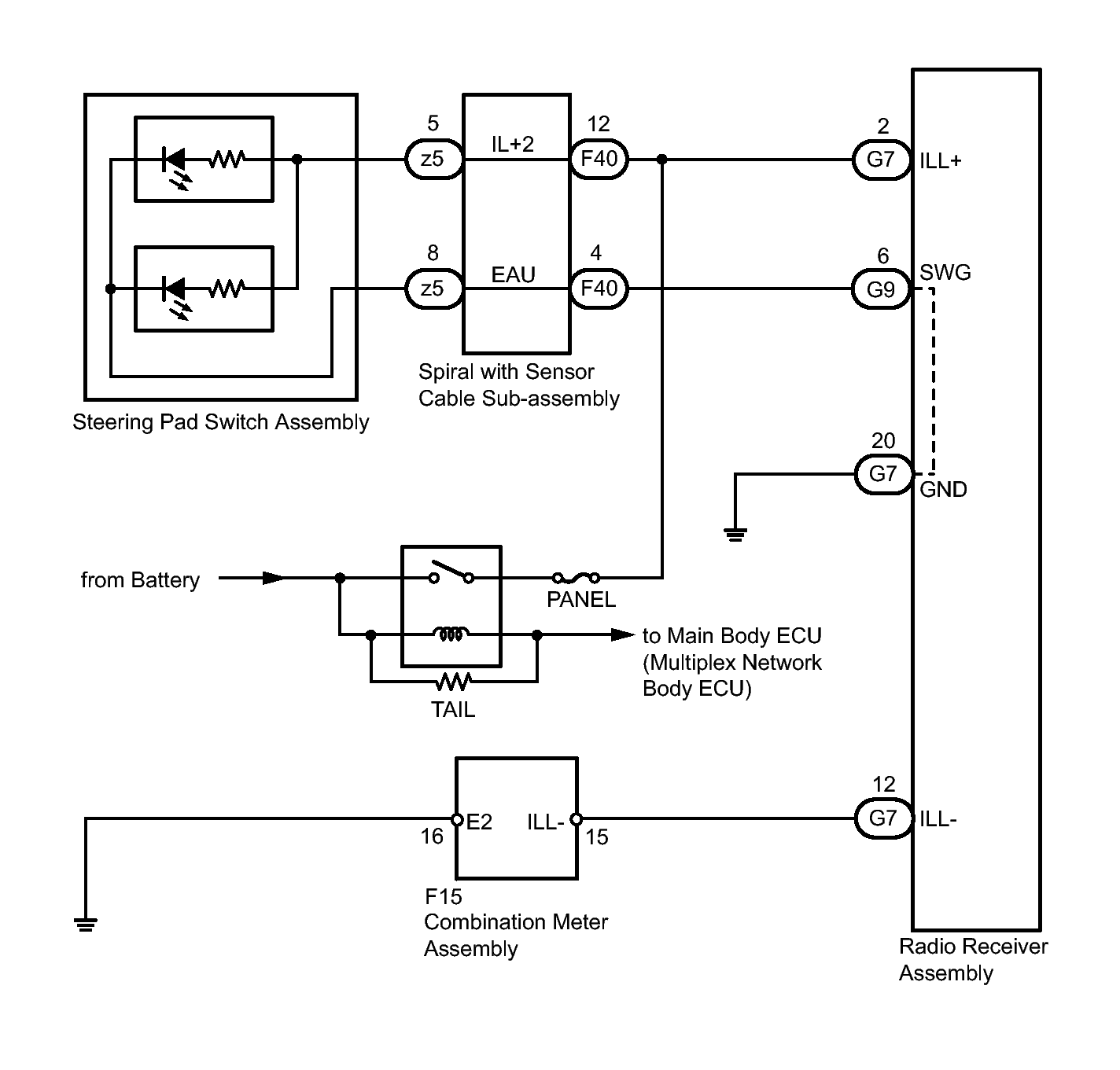

Fig 1: Identifying Illumination Circuit Wiring Diagram

GTY255300

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
