ODO/Trip Switch Malfunction (To 8/2009): Wiring Diagram

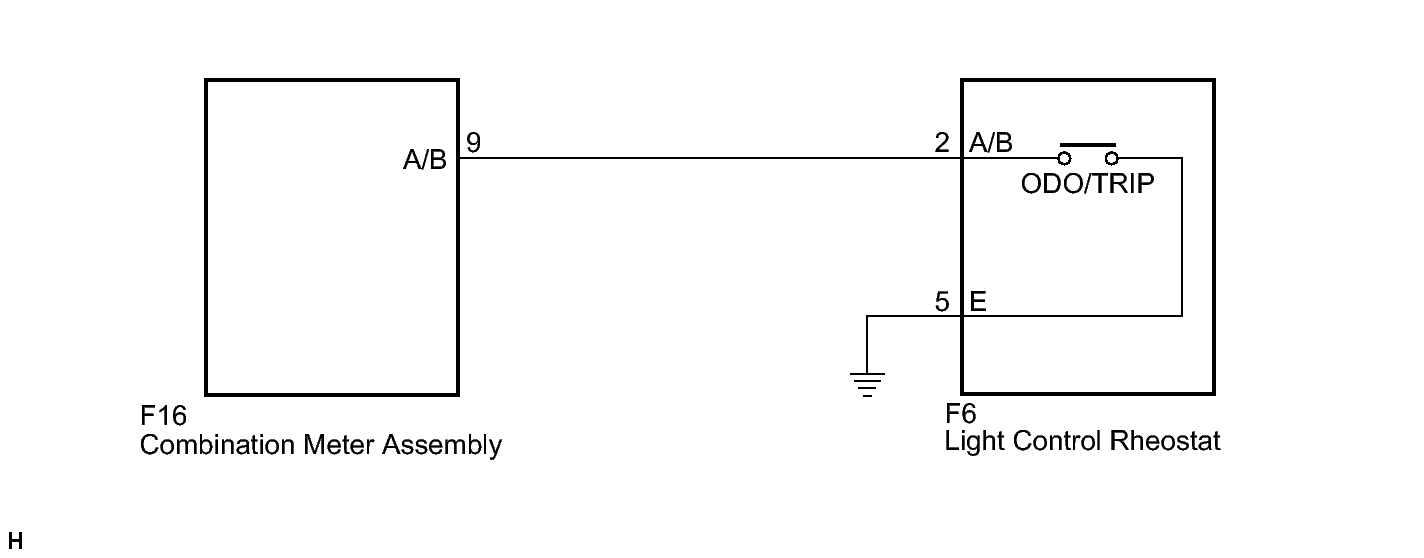

Fig 1: Identifying ODO/Trip Switch Wiring Diagram

GTY260056

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
