Entire Combination Meter does not Operate (To 8/2009): Wiring Diagram

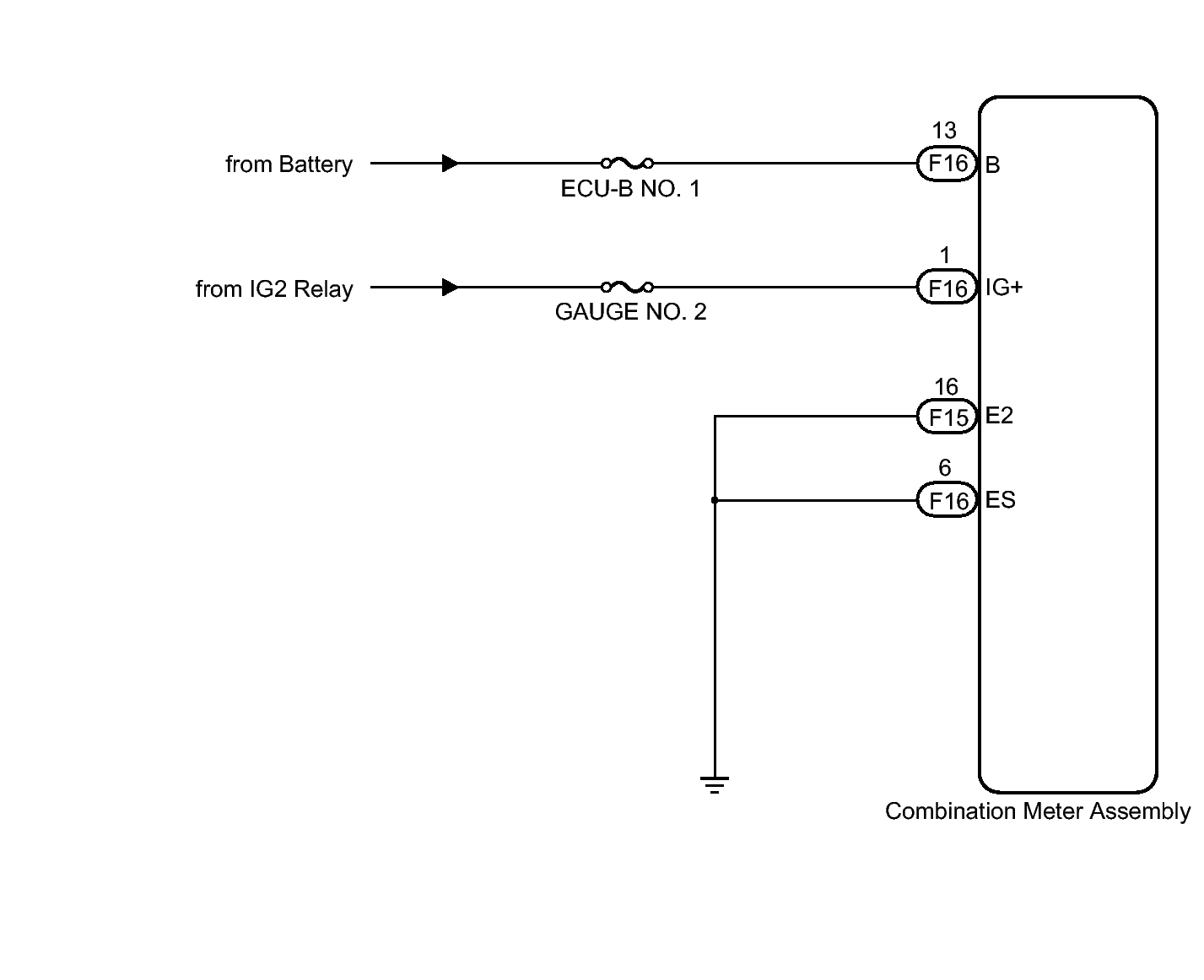

Fig 1: Identifying Entire Combination Meter Wiring Diagram

GTY262082

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
