Accessory Meter does not Illuminate (To 8/2009): Wiring Diagram

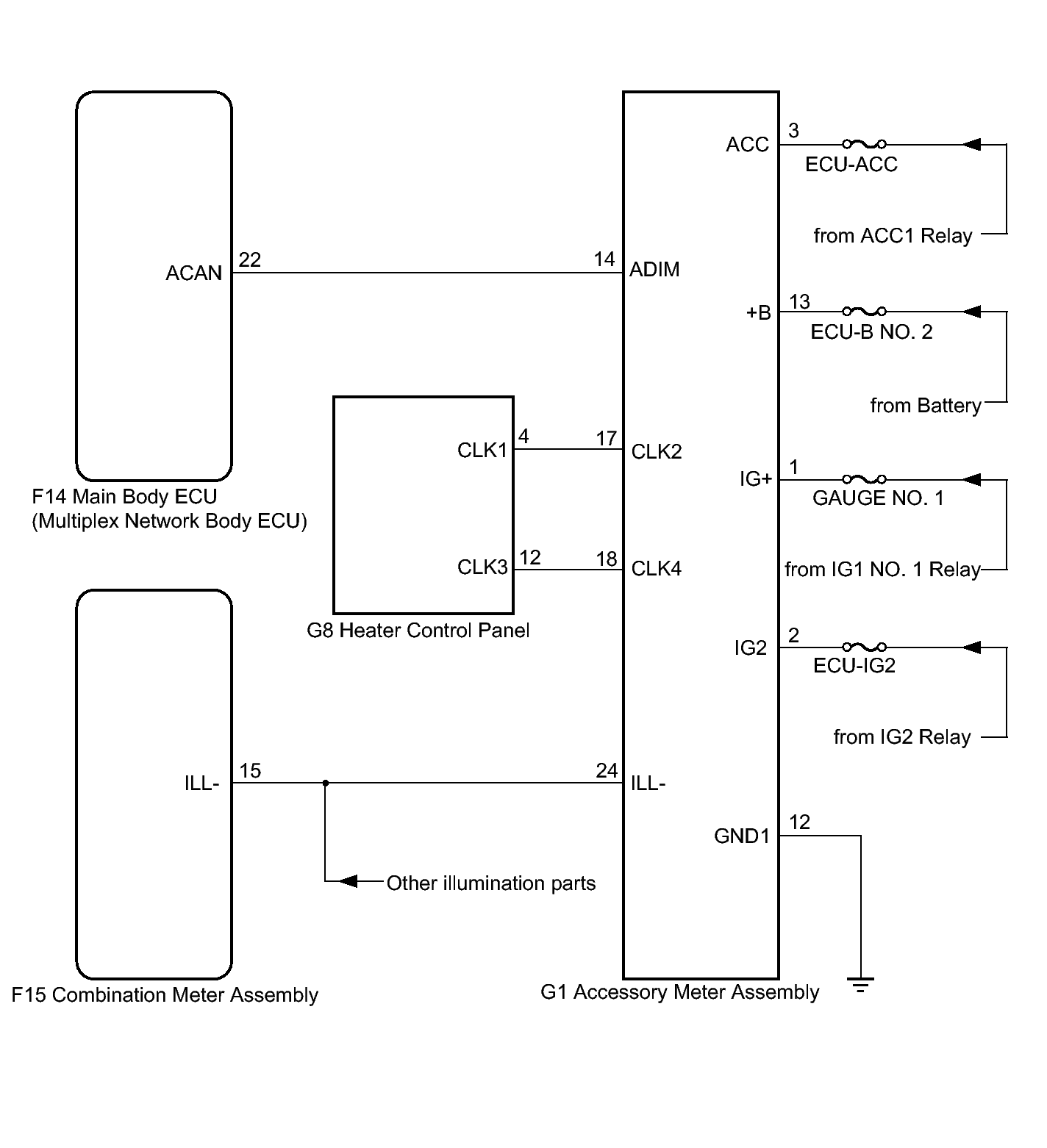

Fig 1: Identifying Accessory Meter Wiring Diagram

GTY260002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
