Headlight Solenoid Circuit (To 08/2009): Wiring Diagram

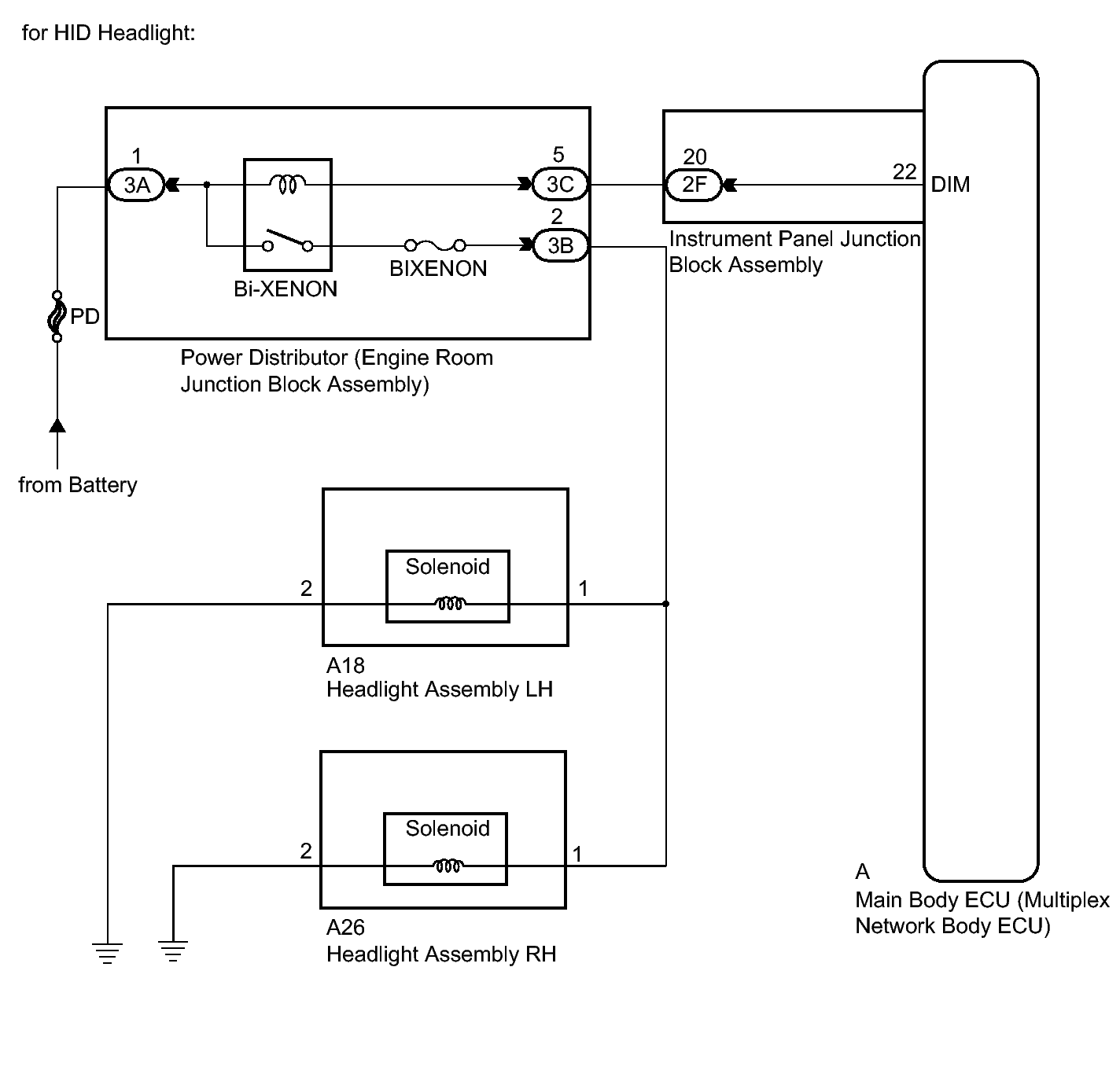

Fig 1: BIXENON Relay - Wiring Diagram

GTY279481

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
