Headlight Dimmer Switch Circuit (To 08/2009): Wiring Diagram

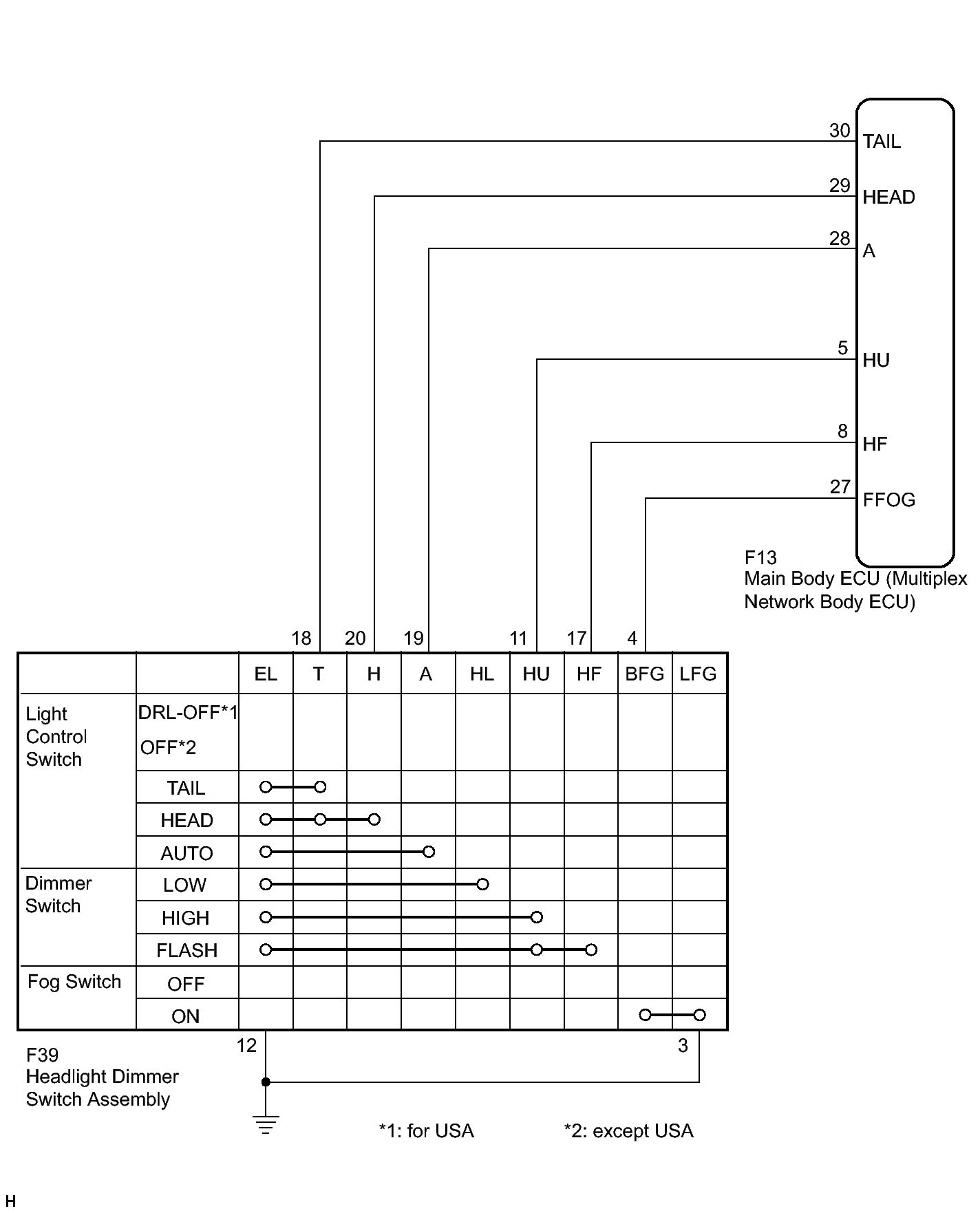

Fig 1: F13 Main Body ECU (Multiplex Network Body ECU) - Wiring Diagram (Switch Information)

GTY275769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
