Front Fog Light Circuit (To 08/2009): Wiring Diagram

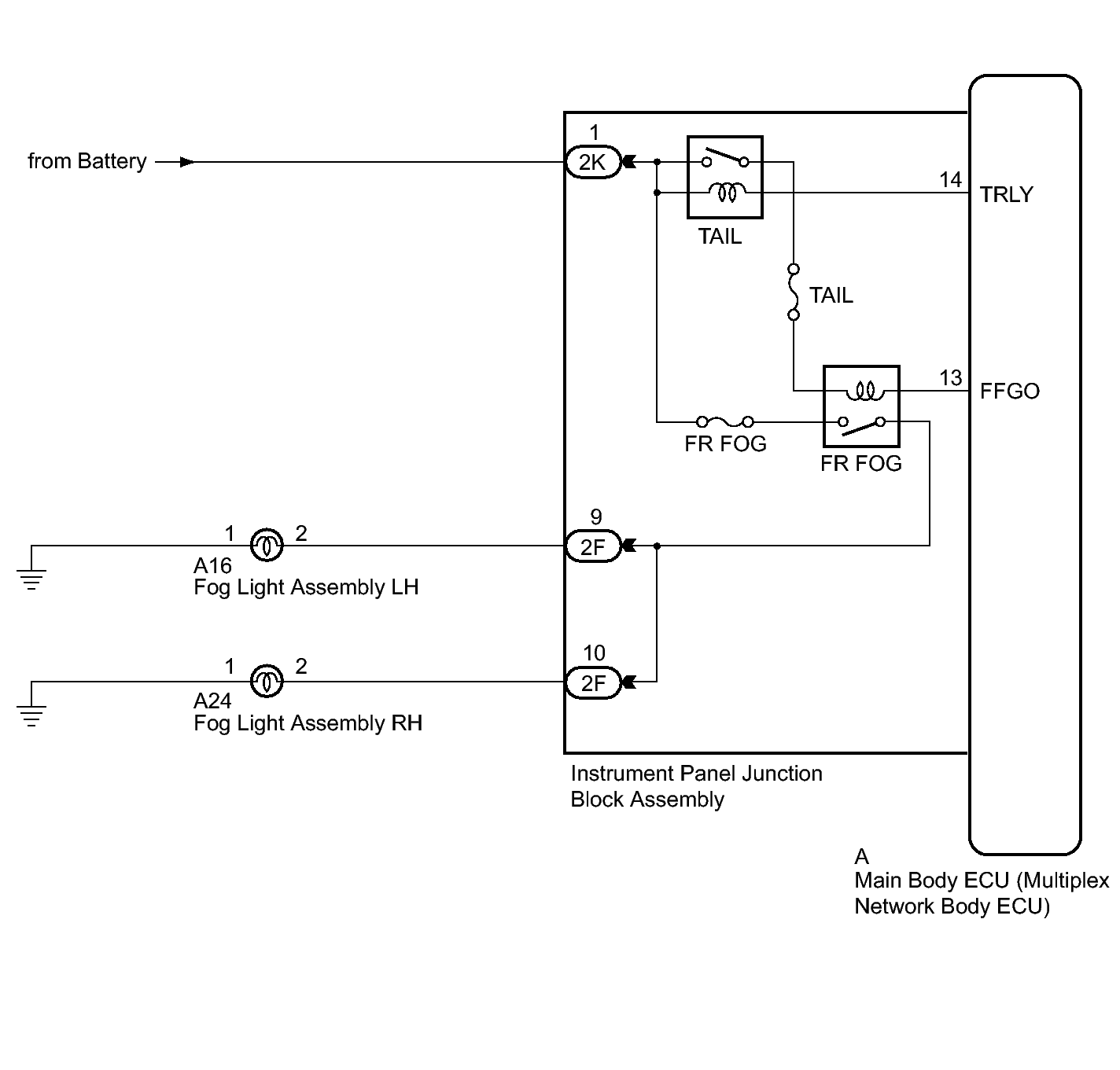

Fig 1: A Main Body ECU (Multiplex Network Body ECU) - Wiring Diagram

GTY279546

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
