Daytime Running Light Relay Circuit (To 08/2009): Wiring Diagram

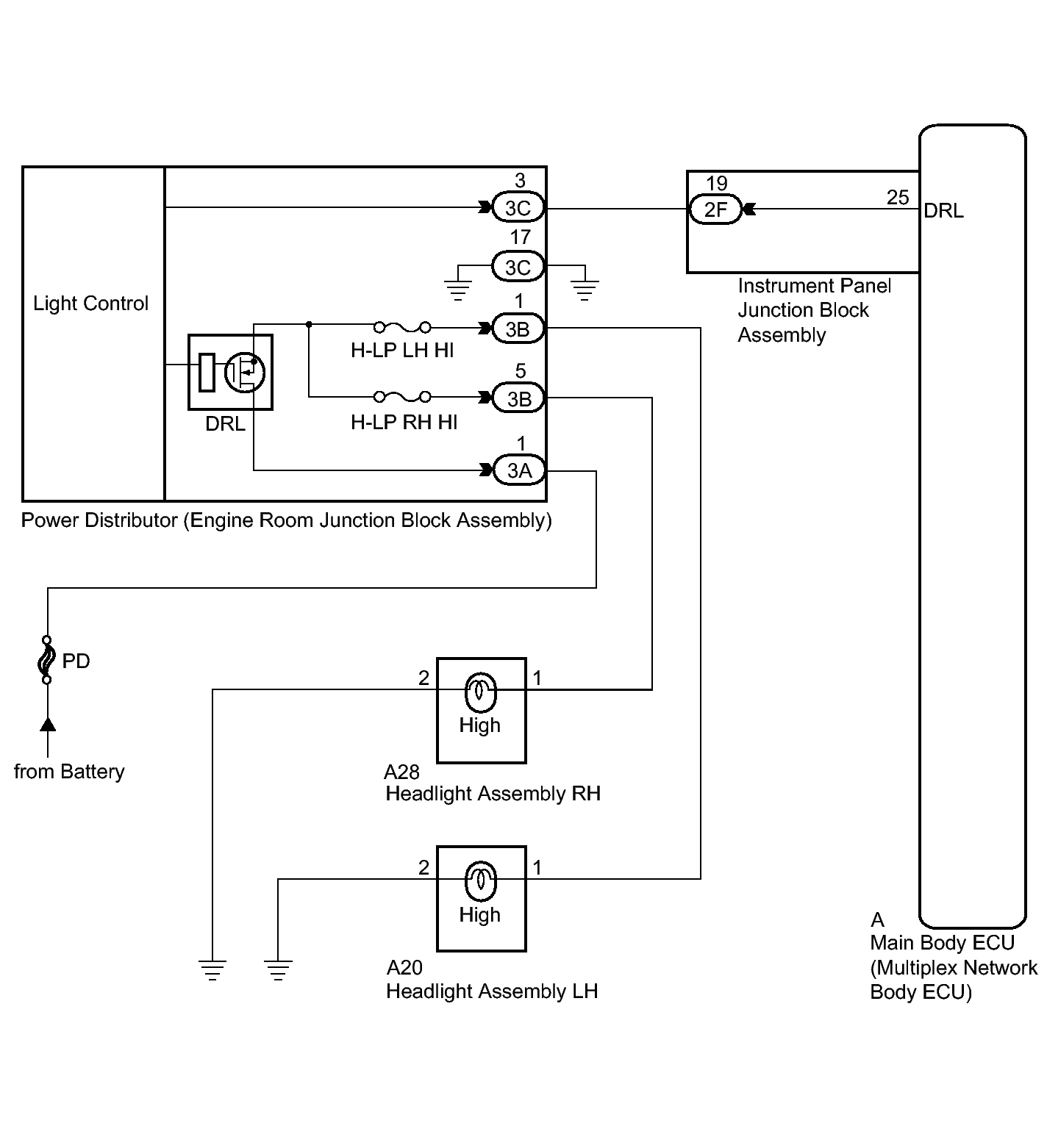

Fig 1: Power Distributor (Engine Room Junction Block Assembly) - Wiring Diagram

GTY274612

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
