DTC B241A: Rear Height Control Sensor (From 08/2009): Wiring Diagram

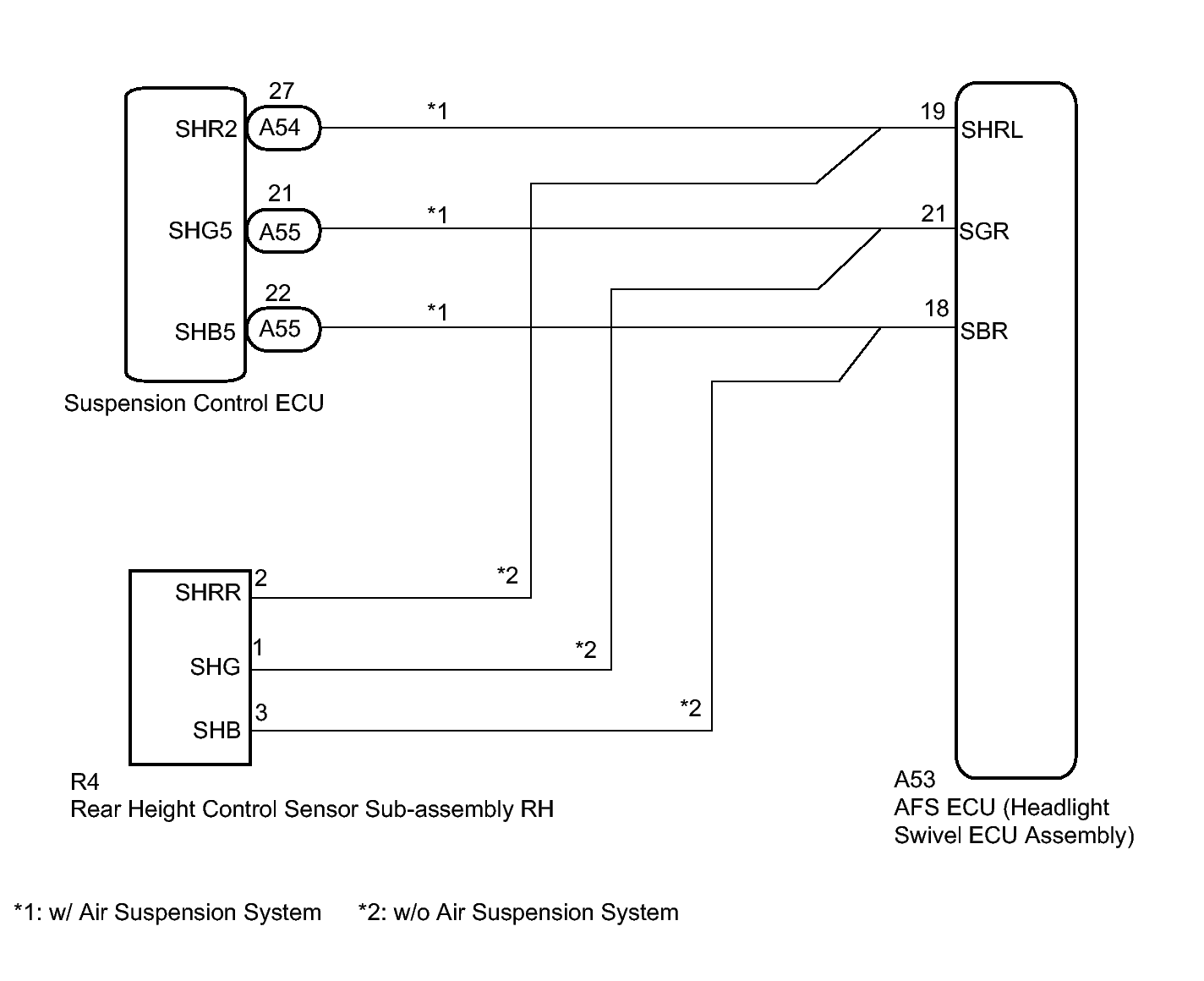

Fig 1: R4 Rear Height Control Sensor Sub - Assembly RH - Wiring Diagram

GTY261047

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
