DTC B2416: Height Control Sensor Malfunction (From 08/2009): Wiring Diagram

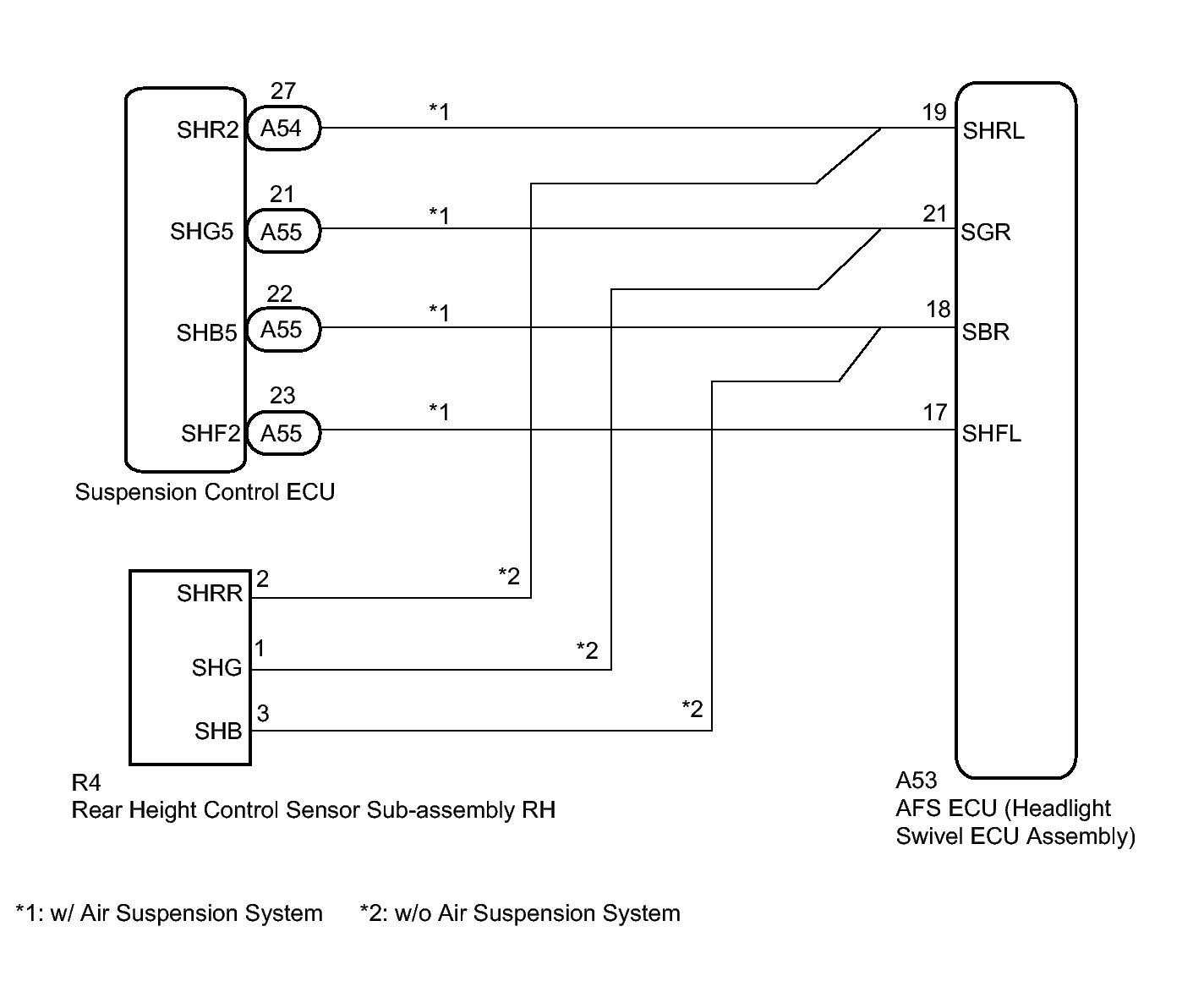

Fig 1: A53 AFS ECU (Headlight Swivel ECU Assembly) - Wiring Diagram

GTY255680

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
