Rear Brake Pad, Brake Caliper & Brake Rotor: Components: Illustration

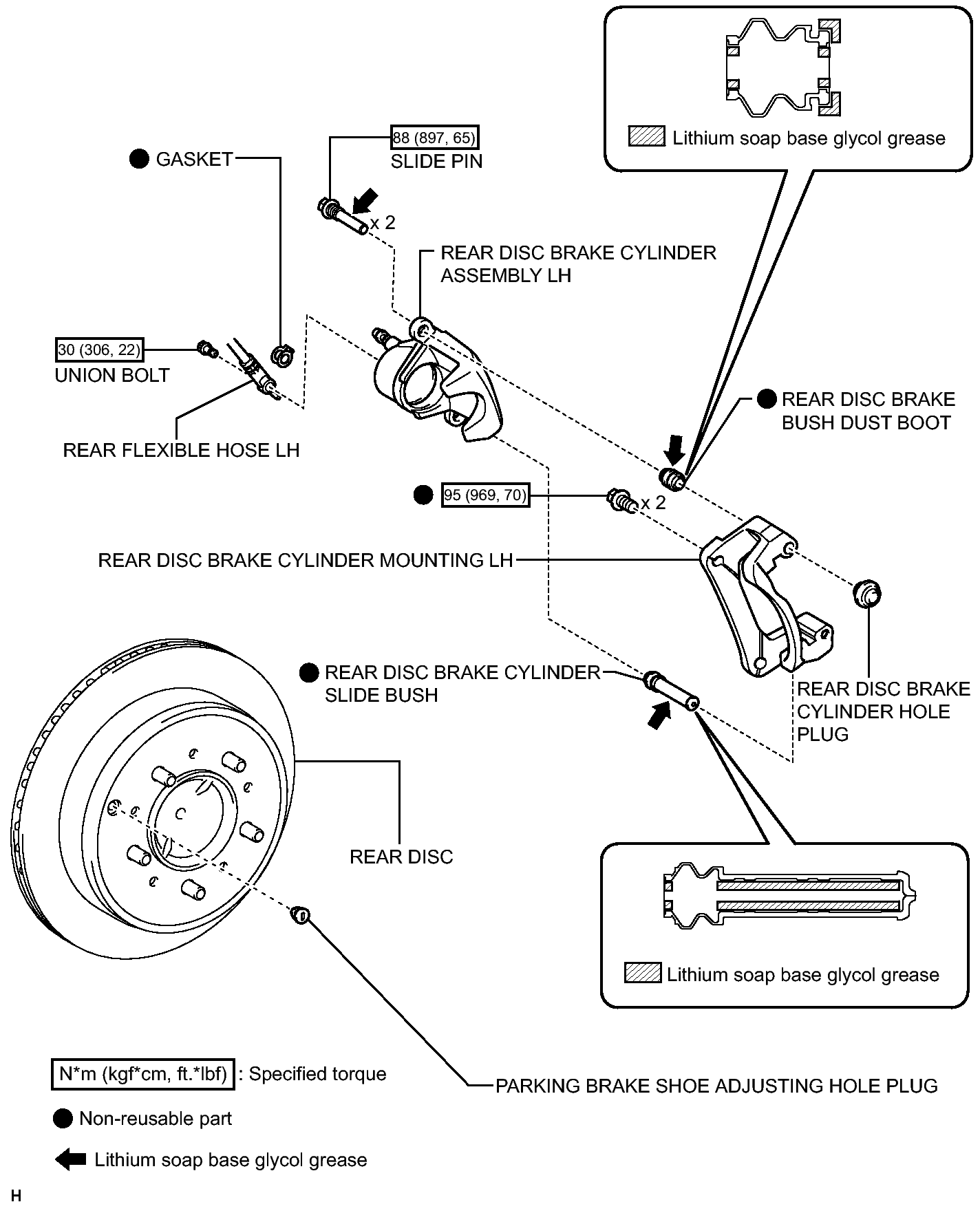

Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications (1 Of 2)
GTY131429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

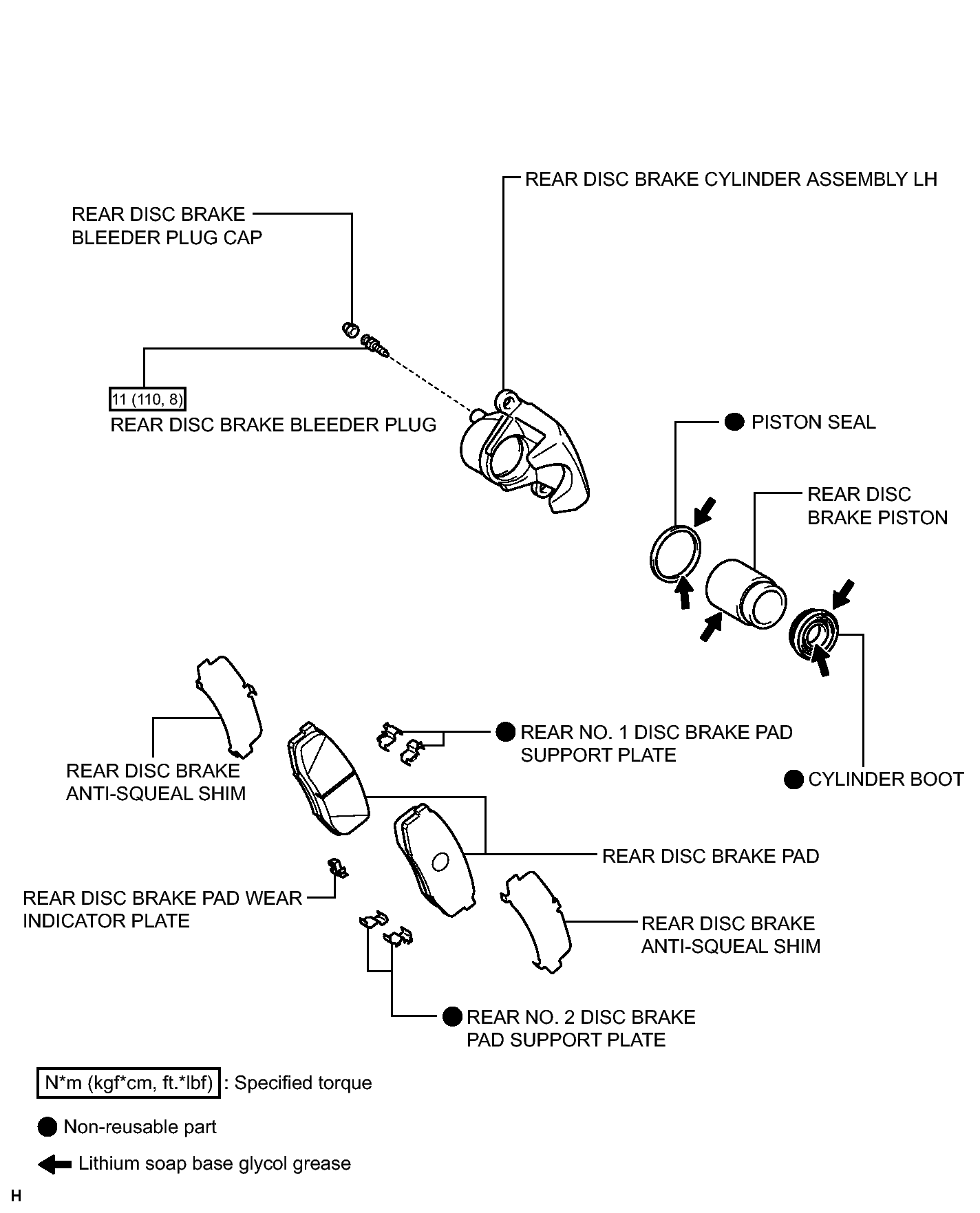

Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications (2 Of 2)
GTY139508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
