Rear Brake Flexible Hose: Components: Illustration

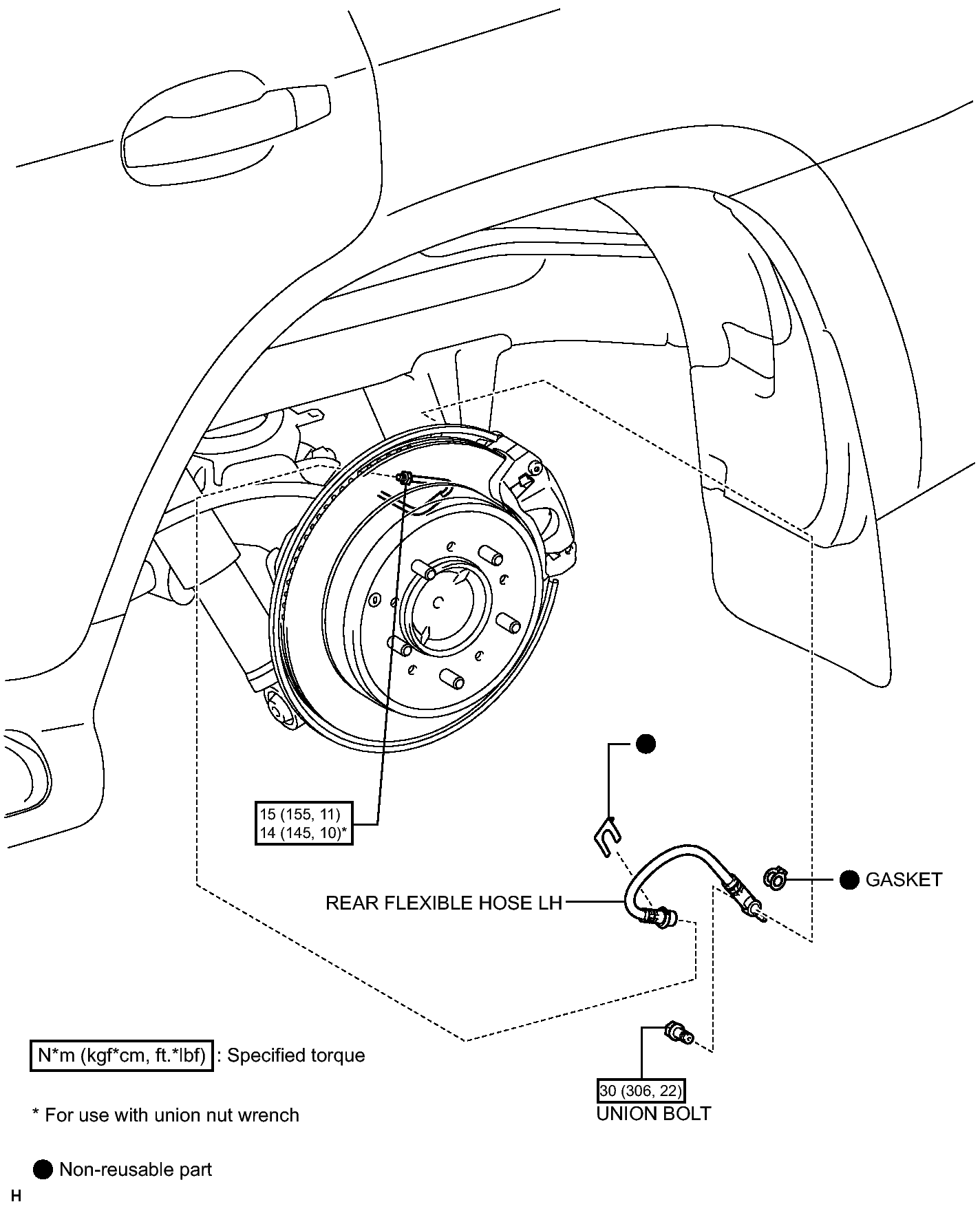

Fig 1: Identifying Rear Brake Flexible Hose Replacement Components With Torque Specification (1 Of 2)
GTY143430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

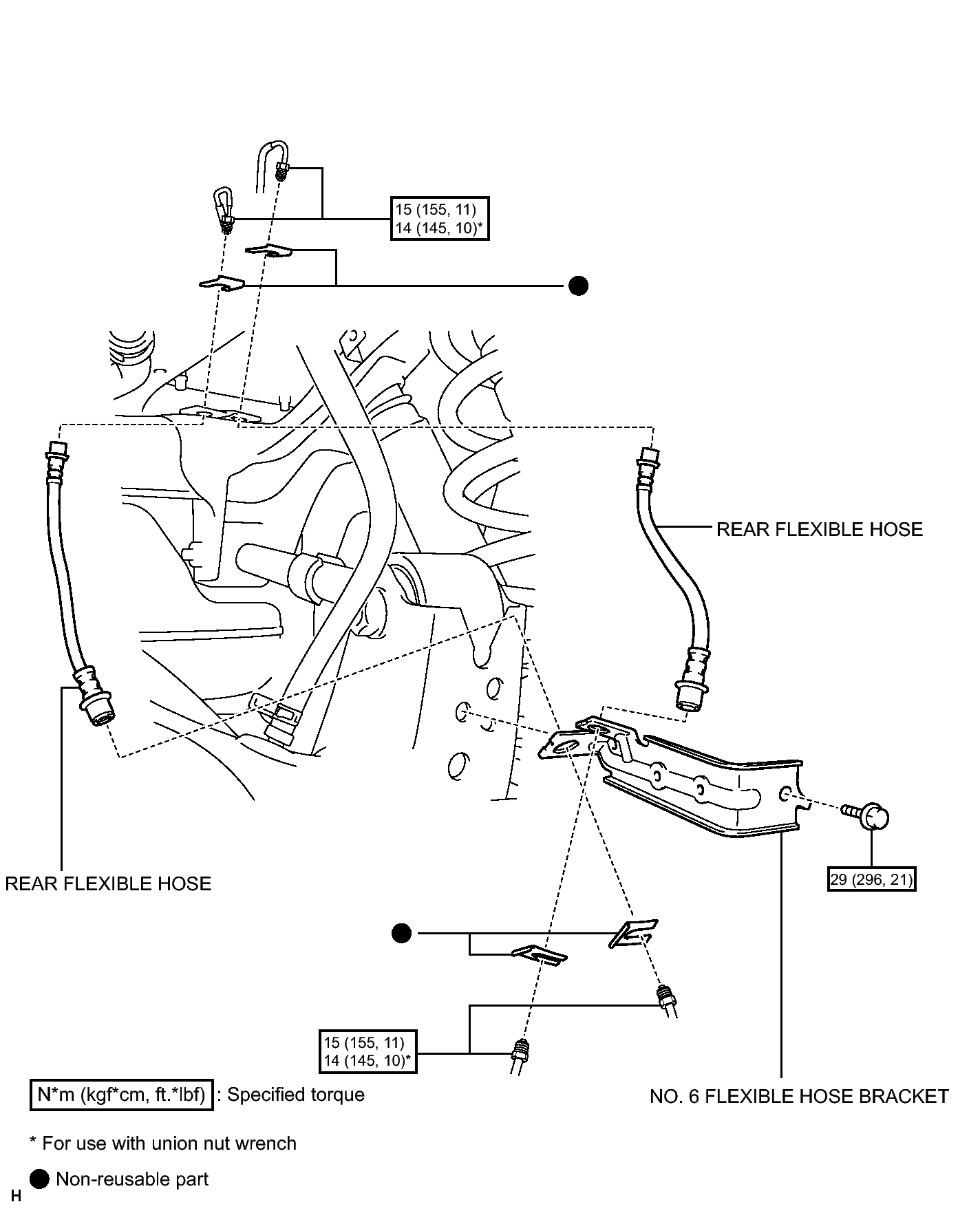

Fig 1: Identifying Rear Brake Flexible Hose Replacement Components With Torque Specification (2 Of 2)
GTY109161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
