Parts Location: Illustration

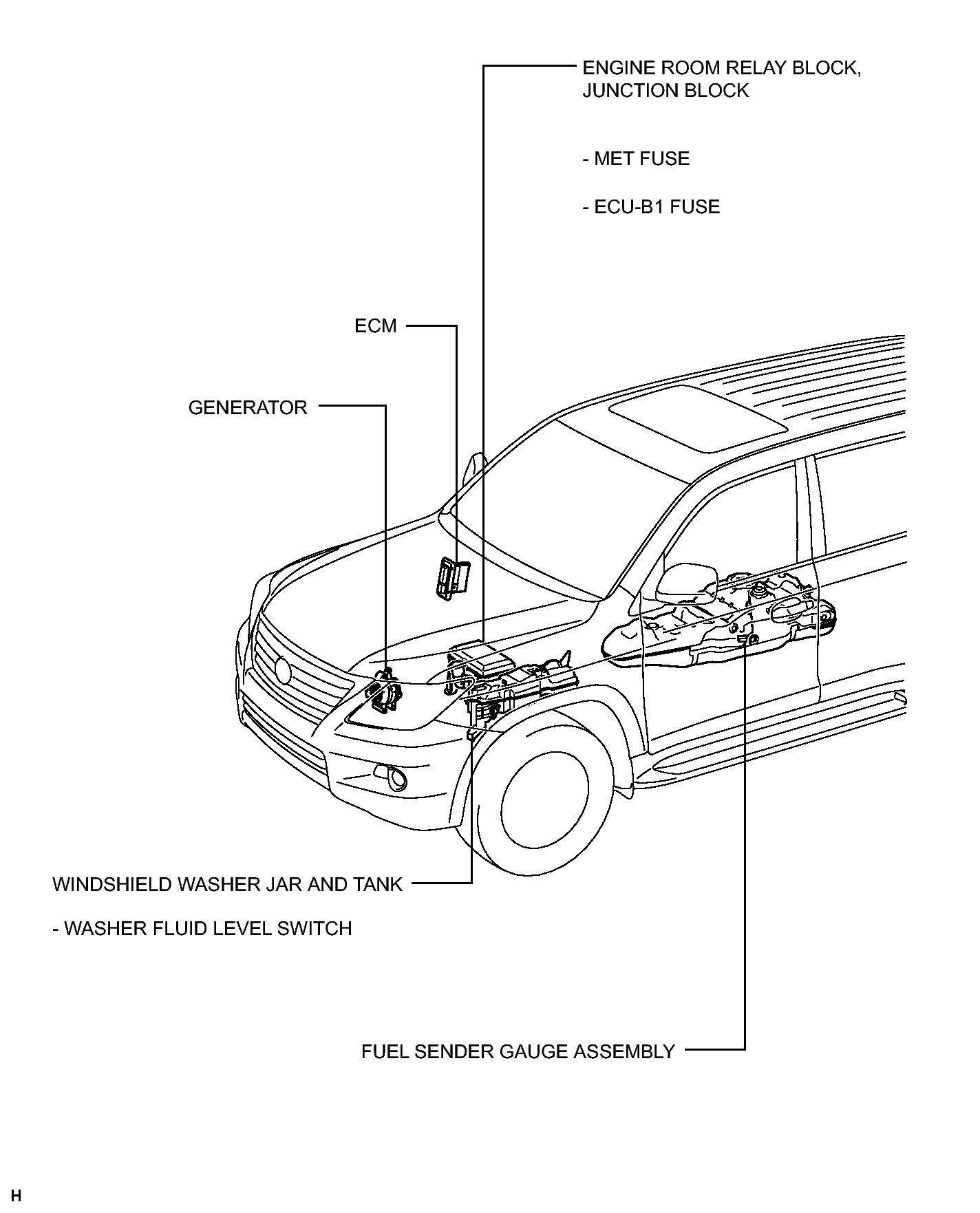

Fig 1: Identifying Meter / Gauge System Parts Location (1 Of 7)
GTY125079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Parts Location (2 Of 7)
GTY131030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Parts Location (3 Of 7)
GTY153712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

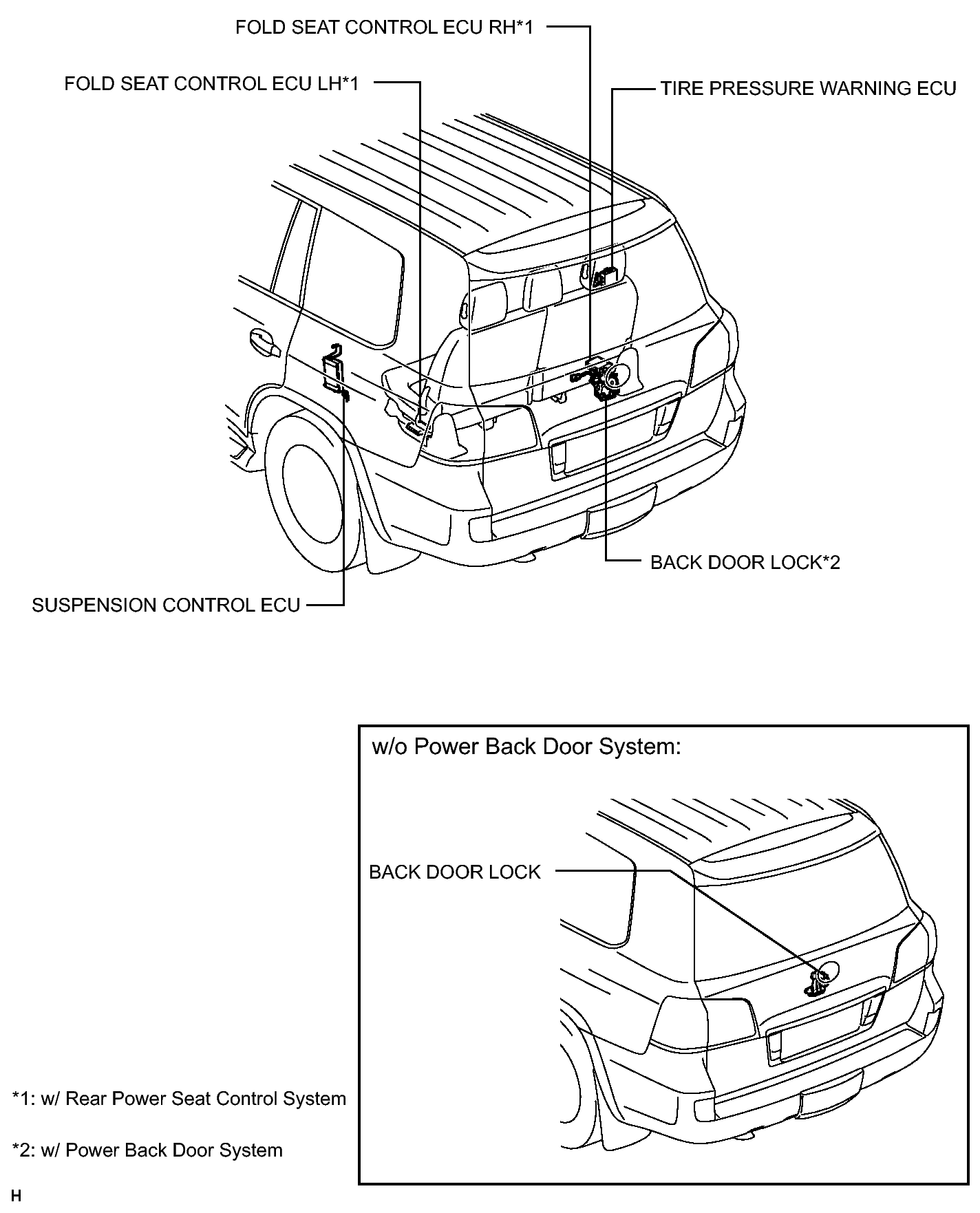

Fig 1: Identifying Meter / Gauge System Parts Location (4 Of 7)
GTY153713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

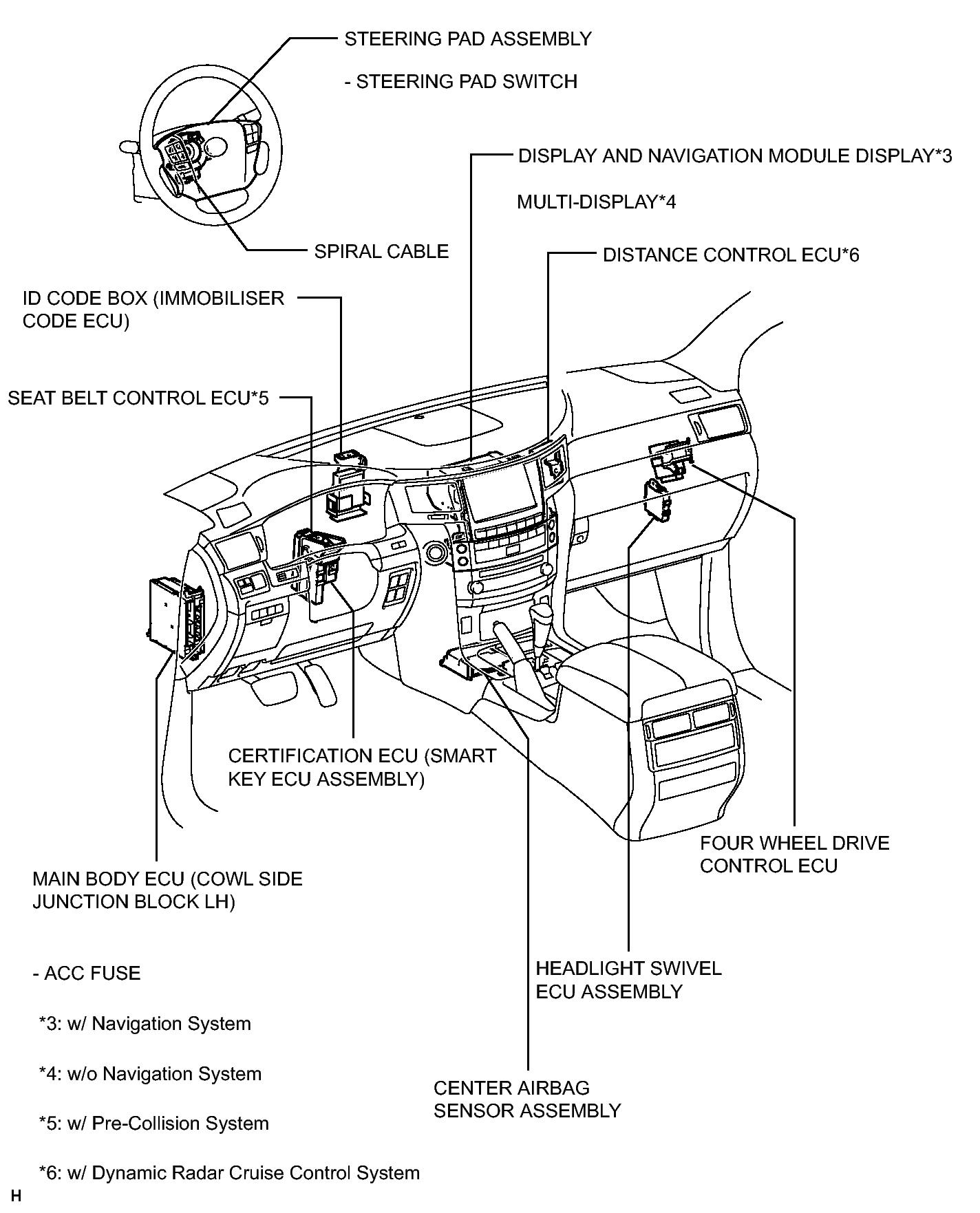

Fig 1: Identifying Meter / Gauge System Parts Location (5 Of 7)
GTY139716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

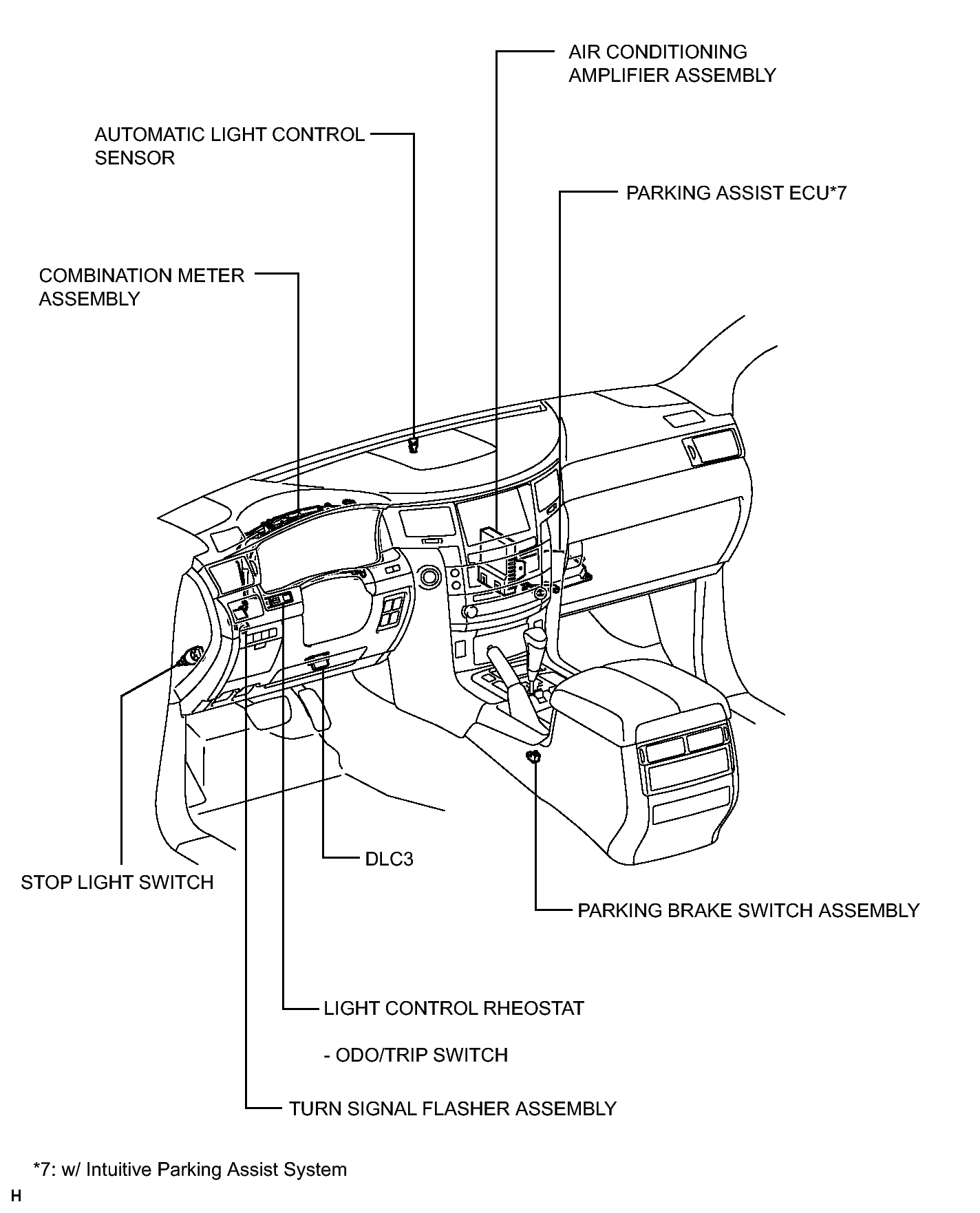

Fig 1: Identifying Meter / Gauge System Parts Location (6 Of 7)
GTY123031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

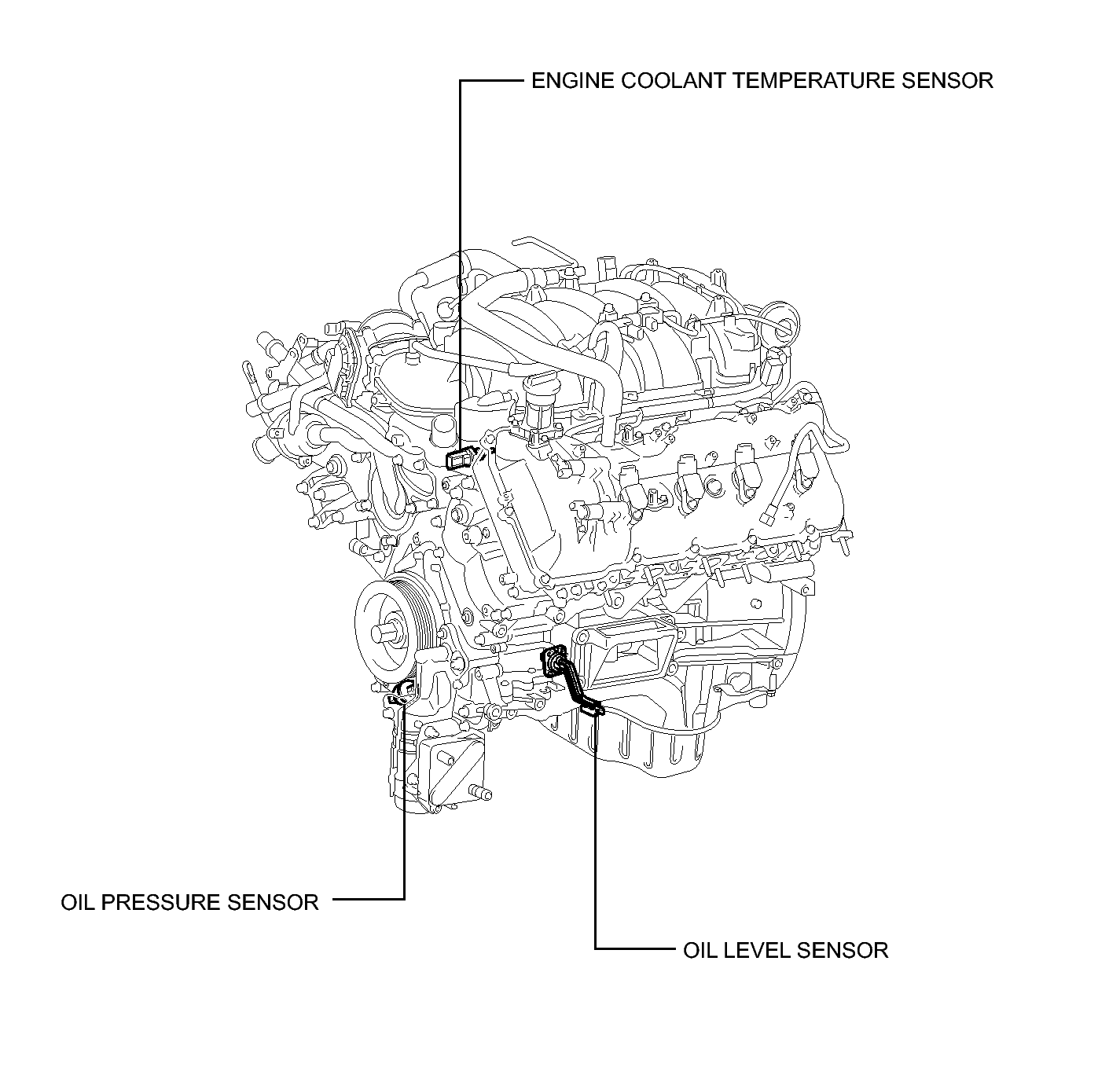

Fig 1: Identifying Meter / Gauge System Parts Location (7 Of 7)
GTY153824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
