Turn Signal Light does not Illuminate: Wiring Diagram

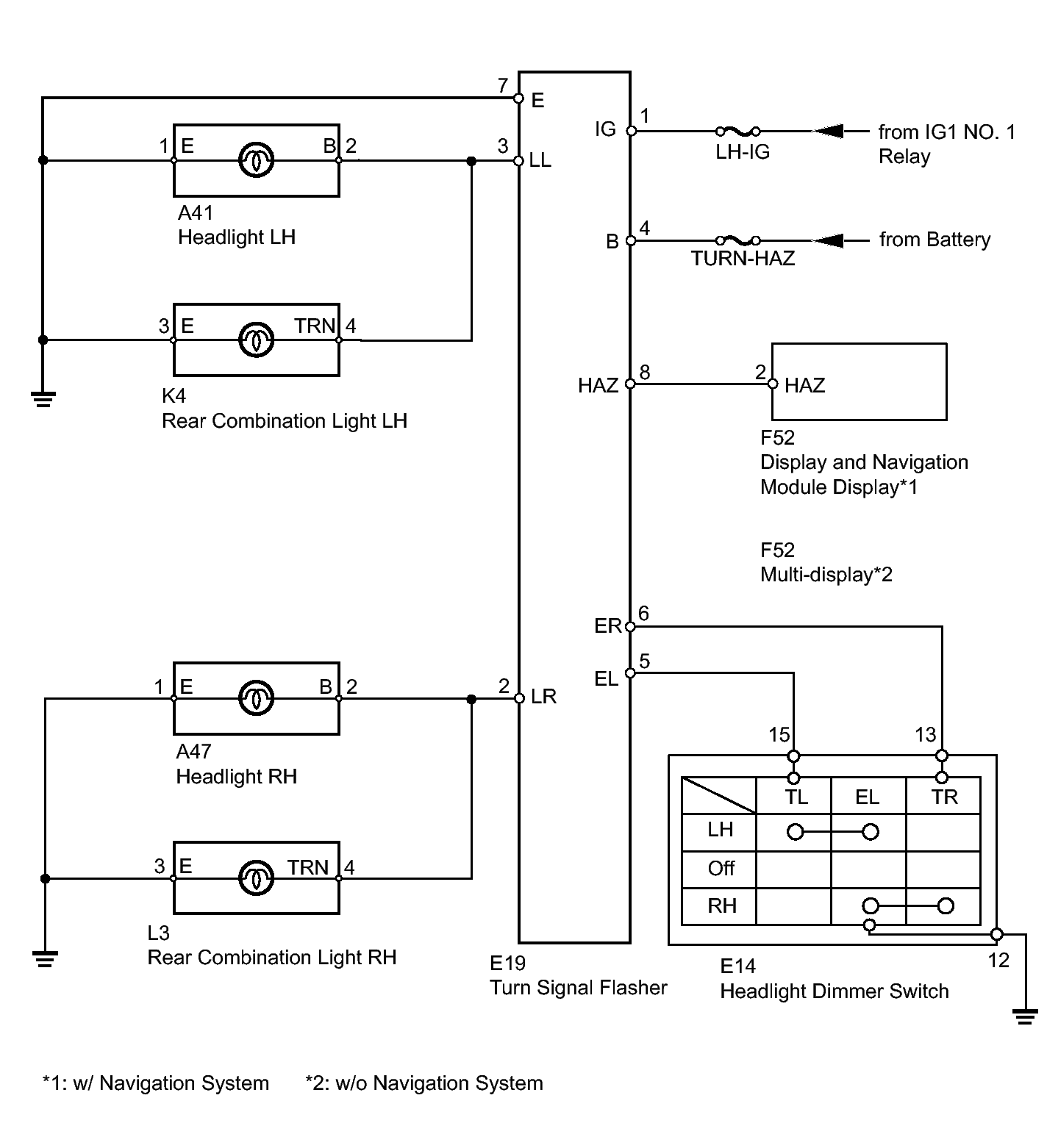

Fig 1: Turn Signal Light Does Not Illuminate - Wiring Diagram

GTY278241

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
