Stop Light does not Illuminate: Wiring Diagram

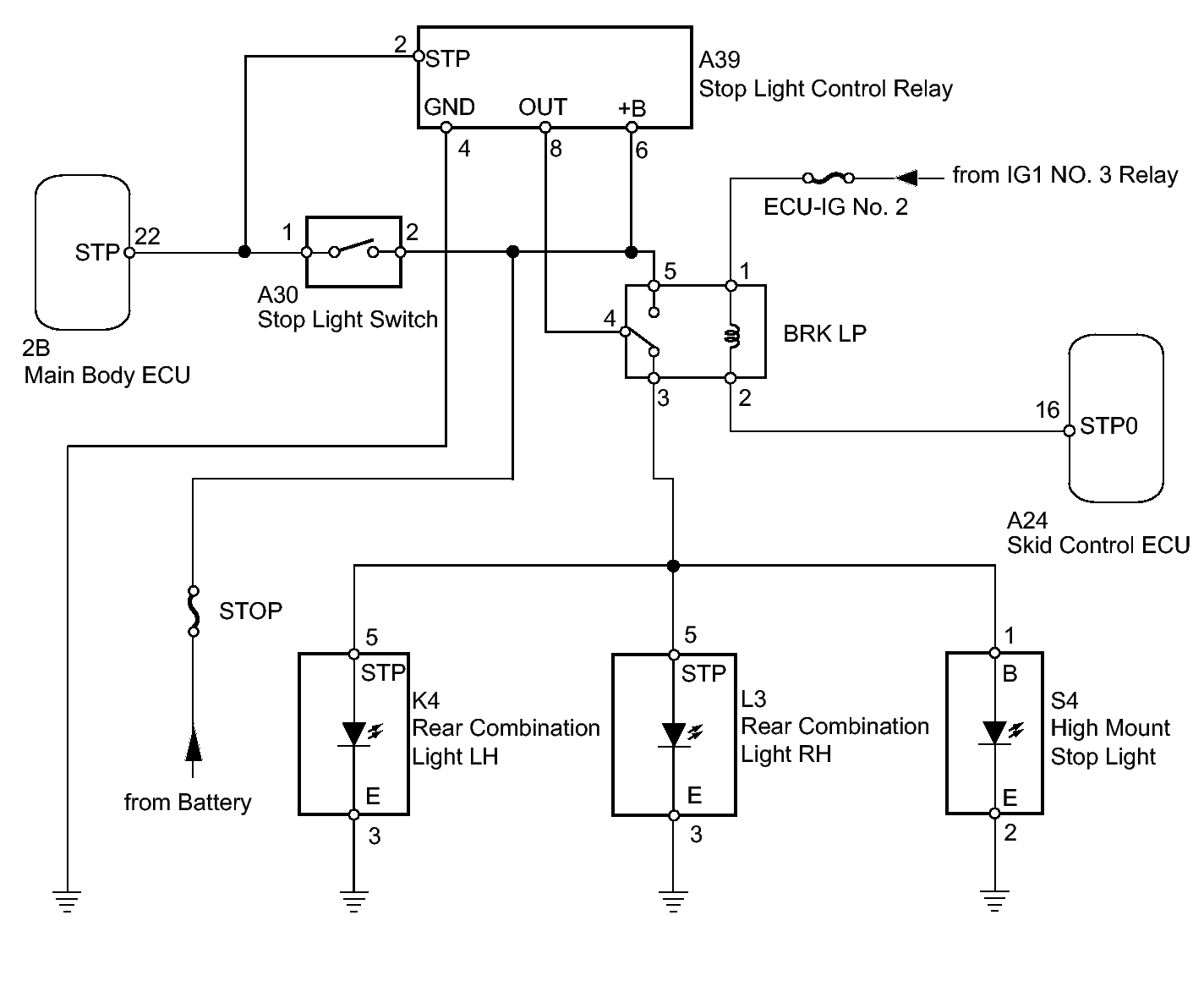

Fig 1: Stop Light Does Not Illuminate - Wiring Diagram

GTY274084

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
