Room Light Control does not Operate: Wiring Diagram

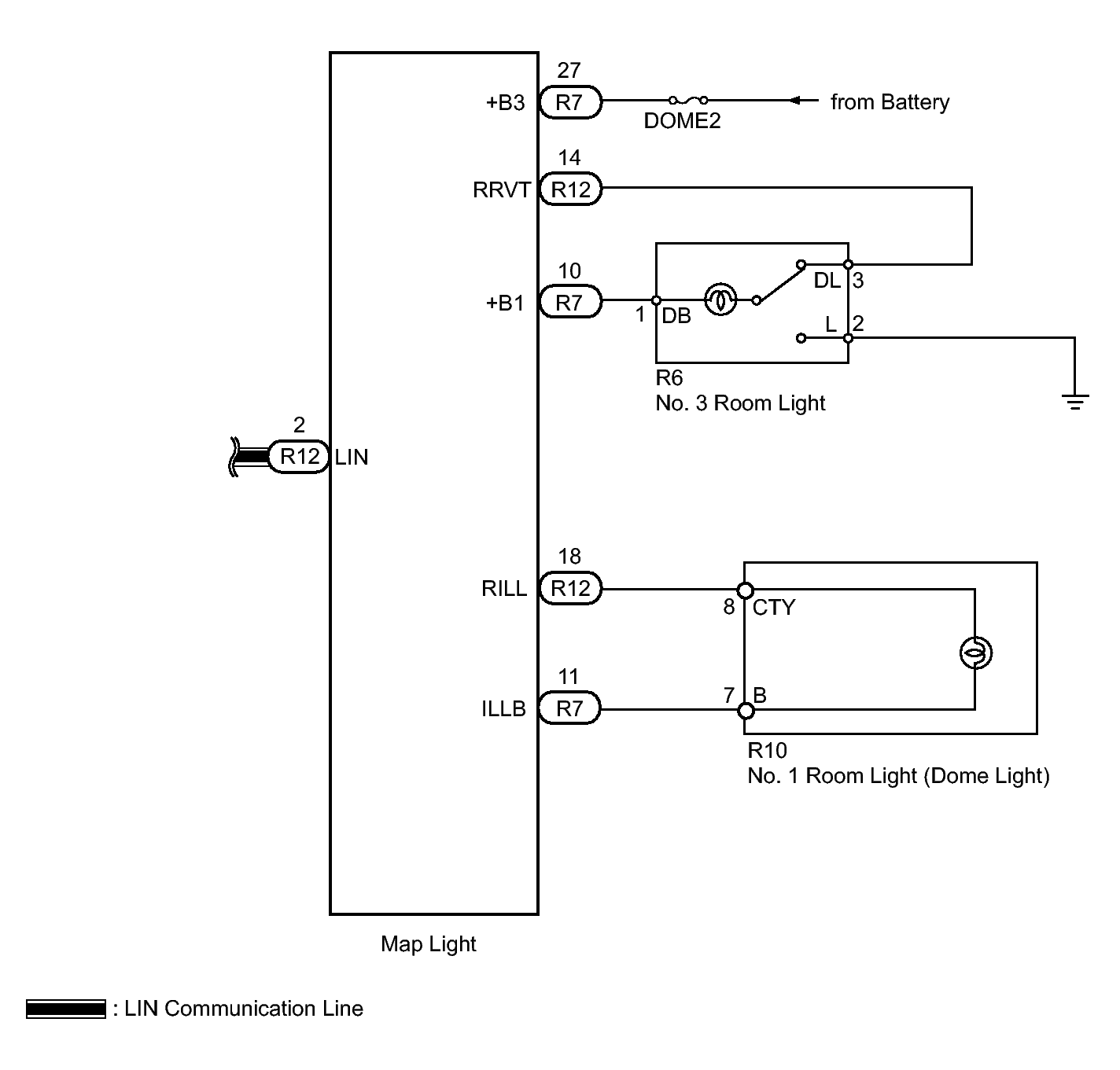

Fig 1: Room Light Control Does Not Operate - Wiring Diagram

GTY264830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
