Personal Light does not Illuminate: Procedure

  1. CONFIRM LIGHT POSITION
    1. Check the malfunctioning personal light.
      RESULT

      Result Proceed to
      Rear personal light A
      Front personal light B

    B → See step   5

    A: Go to next step

  2. CHECK HARNESS AND CONNECTOR (MAP LIGHT - BATTERY)
    Fig 1: Checking Harness And Connector (MAP Light - Battery)
    GTY152418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the R7 light connector.
    2. Measure the voltage to the according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      R7-27 (+B3) - Body ground Always 11 to 14 V

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. INSPECT NO. 1 ROOM LIGHT
    Fig 2: Inspecting No. 1 Room Light
    GTY154271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the No. 1 room light connector. Refer to ON-VEHICLE INSPECTION .
    2. Apply battery voltage to the connector, and check the illumination condition.

      OK

      Measurement Condition Specified Condition
      Battery positive (+) → Terminal 1 (MPR)
      Battery negative (-) → Terminal 9 (E)
      Illuminates
      Battery positive (+) → Terminal 3 (MPL)
      Battery negative (-) → Terminal 9 (E)
      Illuminates
      Result Proceed to
      OK A
      NG (w/ Rear Seat Entertainment System) B
      NG (w/o Rear Seat Entertainment System) C

    C → See step   7

    B → See step   6

    A: Go to next step

  4. CHECK HARNESS AND CONNECTOR (MAP LIGHT - NO. 1 ROOM LIGHT)

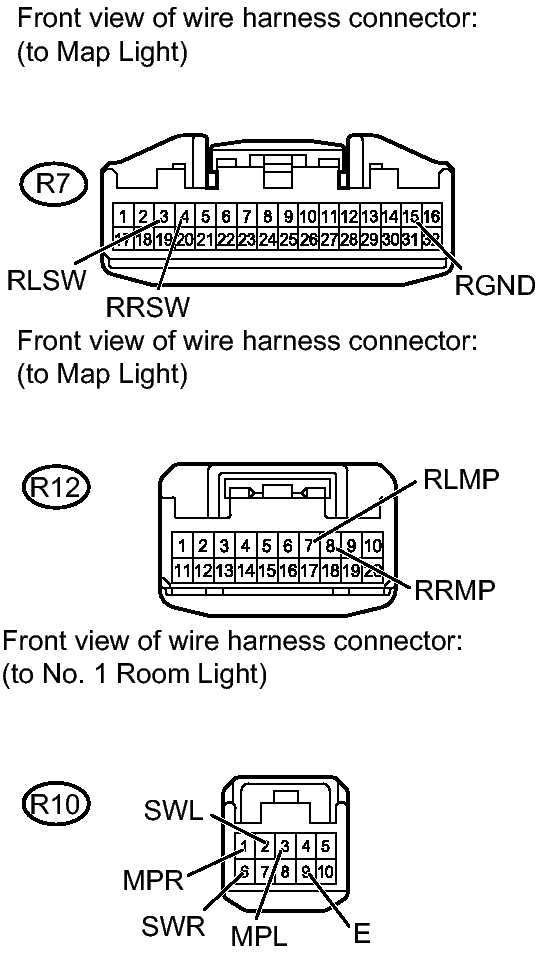

    Fig 3: Checking Harness And Connector (MAP Light - No. 1 Room Light)
    GTY152863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the R7, R12 and R10 light connectors.
    2. Measure the resistance to the according value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R7-15 (RGND) - R10-9 (E) Always Below 1 Ω
      R7-3 (RLSW) - R10-2 (SWL)
      R7-4 (RRSW) - R10-6 (SWR)
      R12-7 (RLMP) - R10-3 (MPL)
      R12-8 (RRMP) - R10-1 (MPR)
      R7-15 (RGND) - Body ground Always 10 kΩ or higher
      R7-3 (RLSW) - Body ground
      R7-4 (RRSW) - Body ground
      R12-7 (RLMP) - Body ground
      R12-8 (RRMP) - Body ground

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   5

  5. REPLACE MAP LIGHT. Refer to  REMOVAL
  6. REPLACE NO. 1 ROOM LIGHT. Refer to  REMOVAL - Step 4
  7. REPLACE NO. 1 ROOM LIGHT. Refer to  REMOVAL - Step 34
