Interior Foot Light does not Illuminate: Wiring Diagram

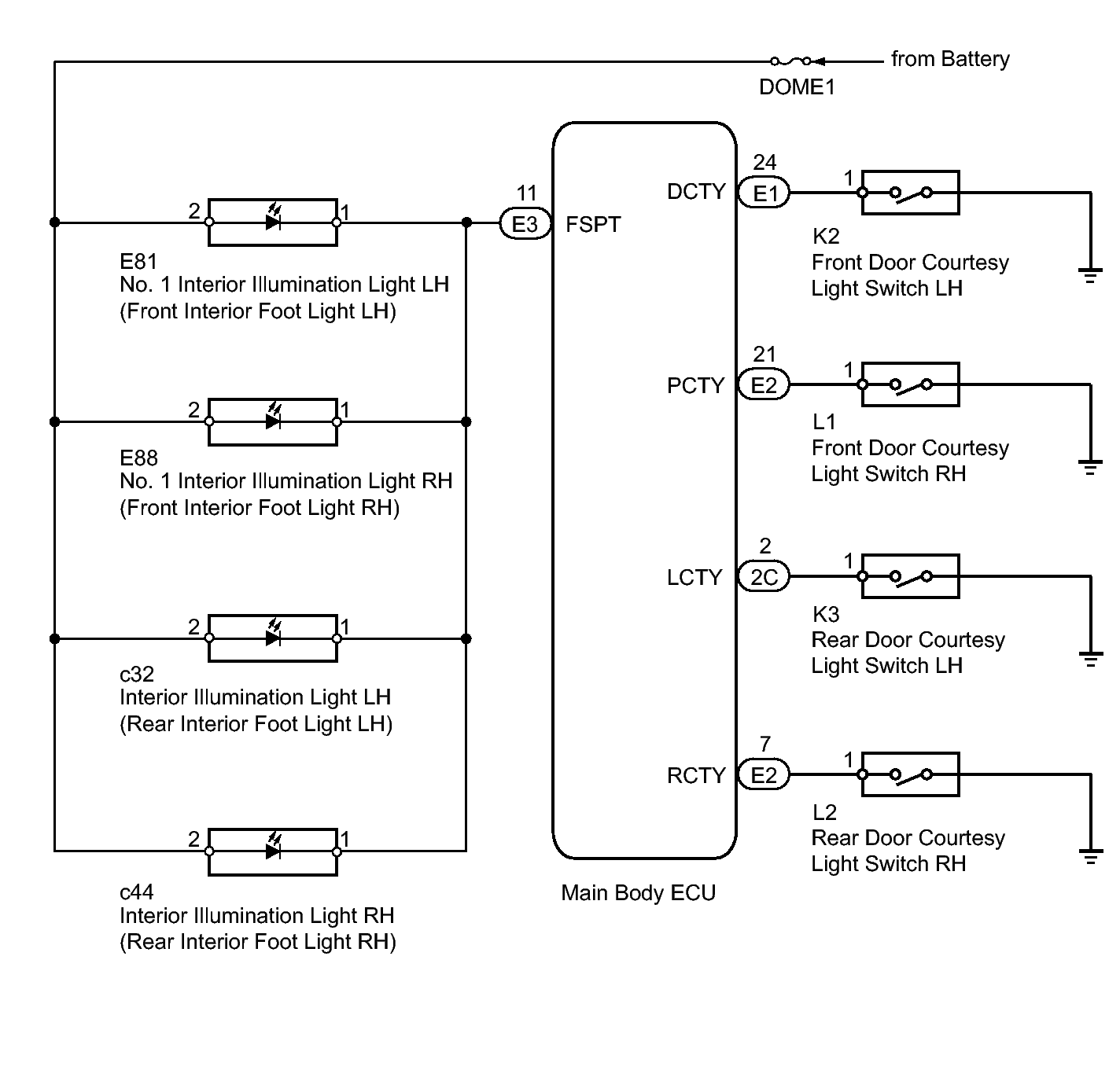

Fig 1: Interior Foot Light Does Not Illuminate - Wiring Diagram

GTY140976

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
