Inside Handle Light does not Illuminate: Wiring Diagram

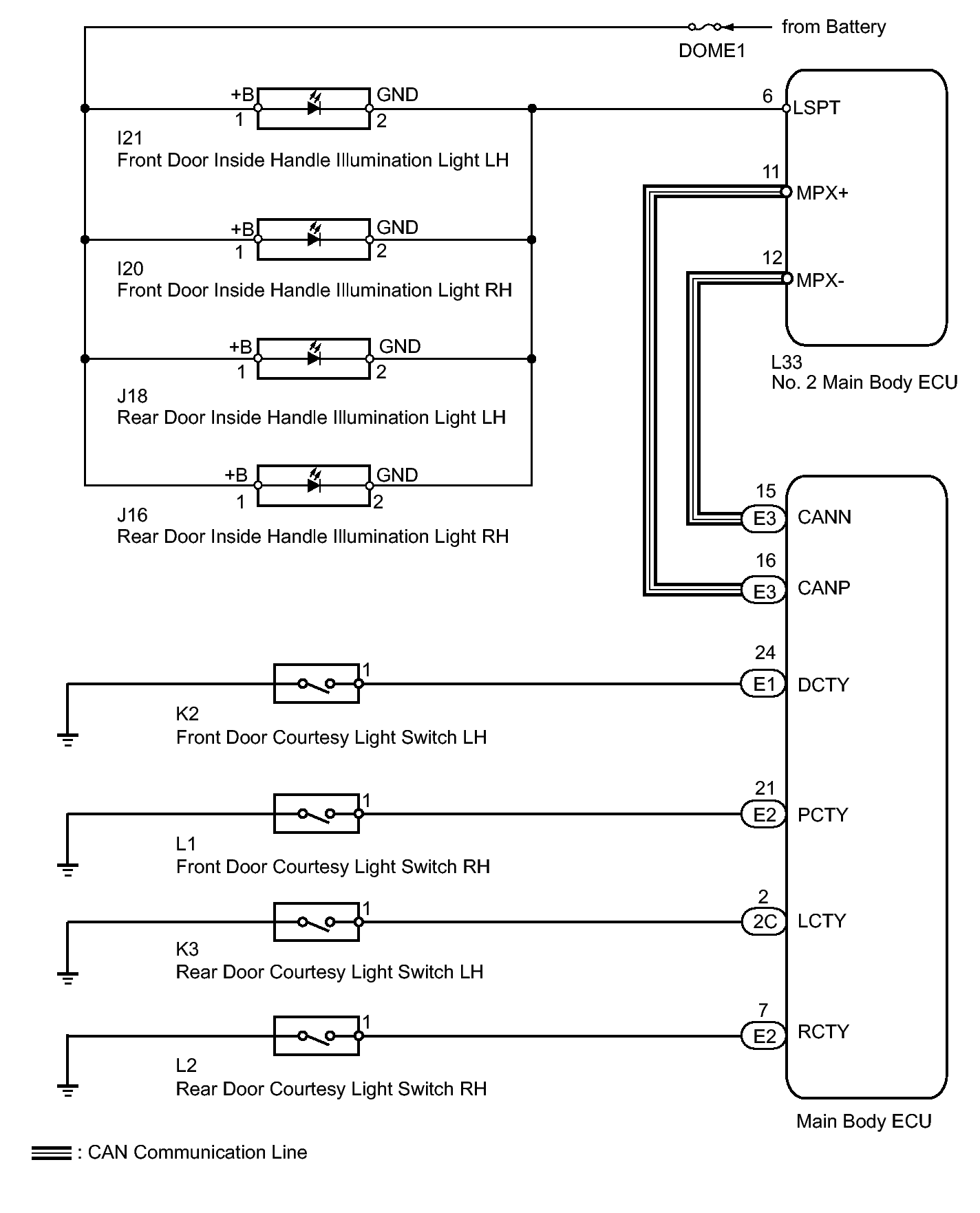

Fig 1: Inside Handle Light Does Not Illuminate - Wiring Diagram

GTY154289

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
