HI-beam Headlight does not Illuminate: Wiring Diagram

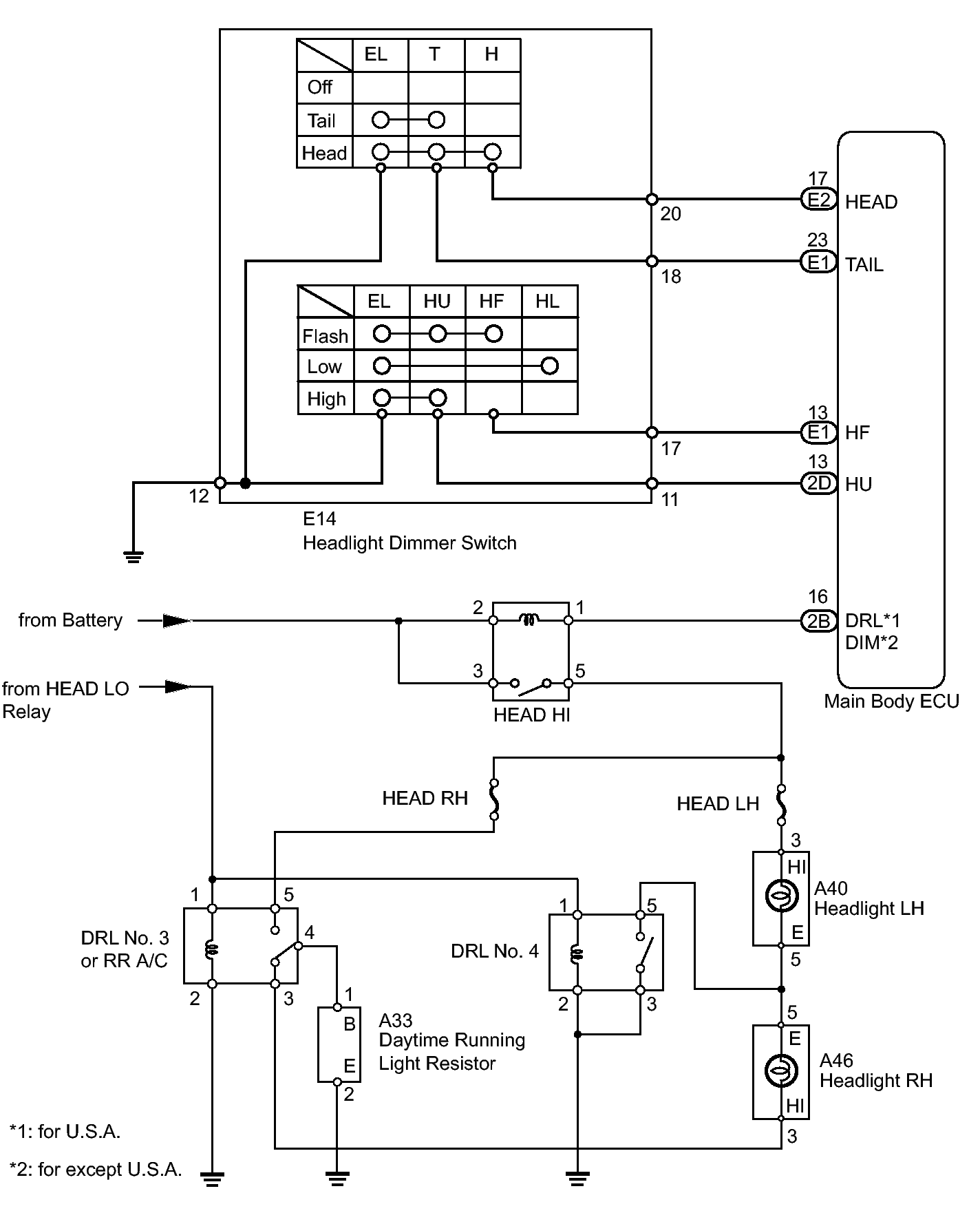

Fig 1: HI-Beam Headlight Does Not Illuminate - Wiring Diagram

GTY262093

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
