Front Fog Light does not Illuminate: Wiring Diagram

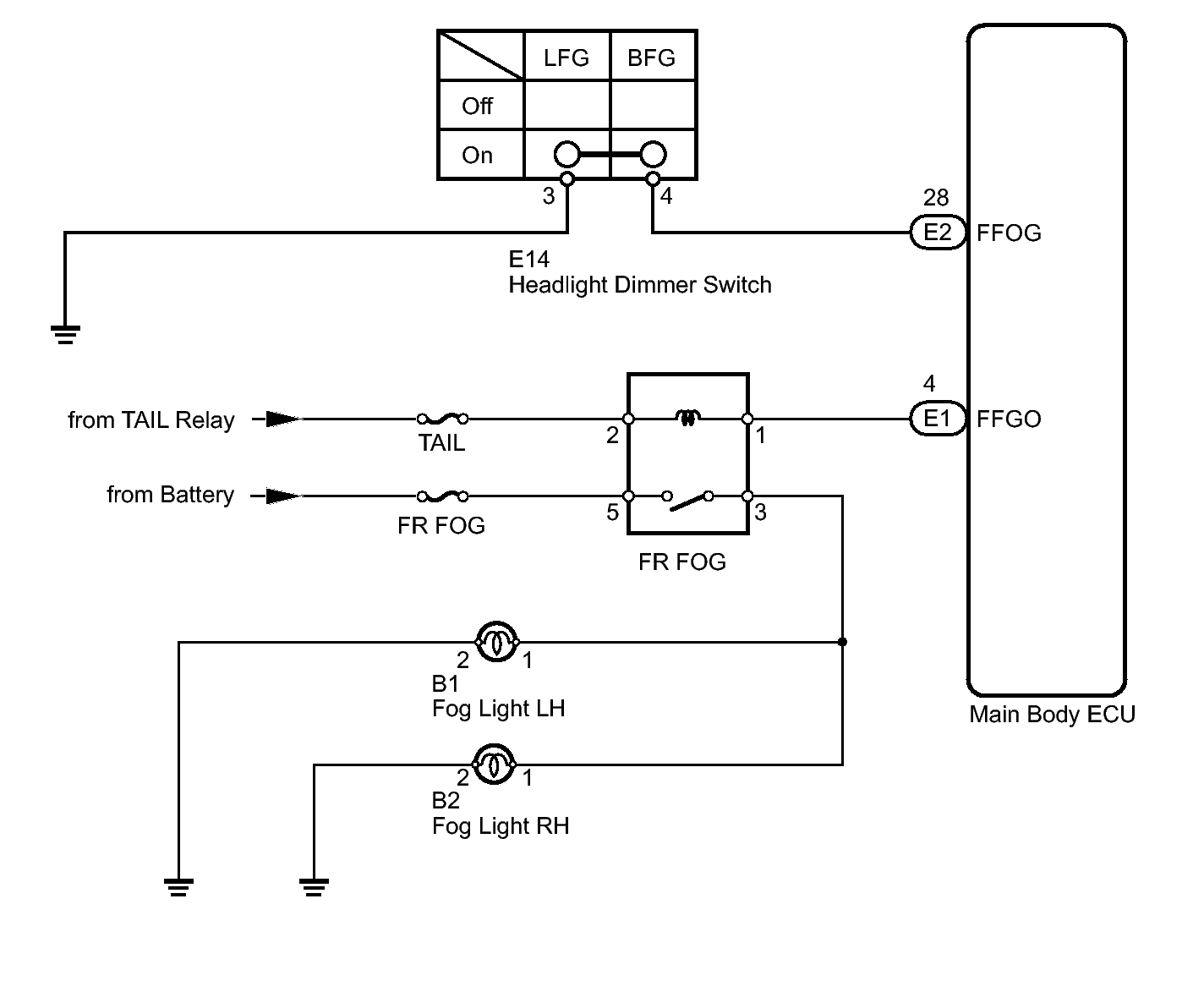

Fig 1: Front Fog Light Does Not Illuminate - Wiring Diagram

GTY257884

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
