DTC C1752: Height Control Compressor Motor Circuit Malfunction: Wiring Diagram

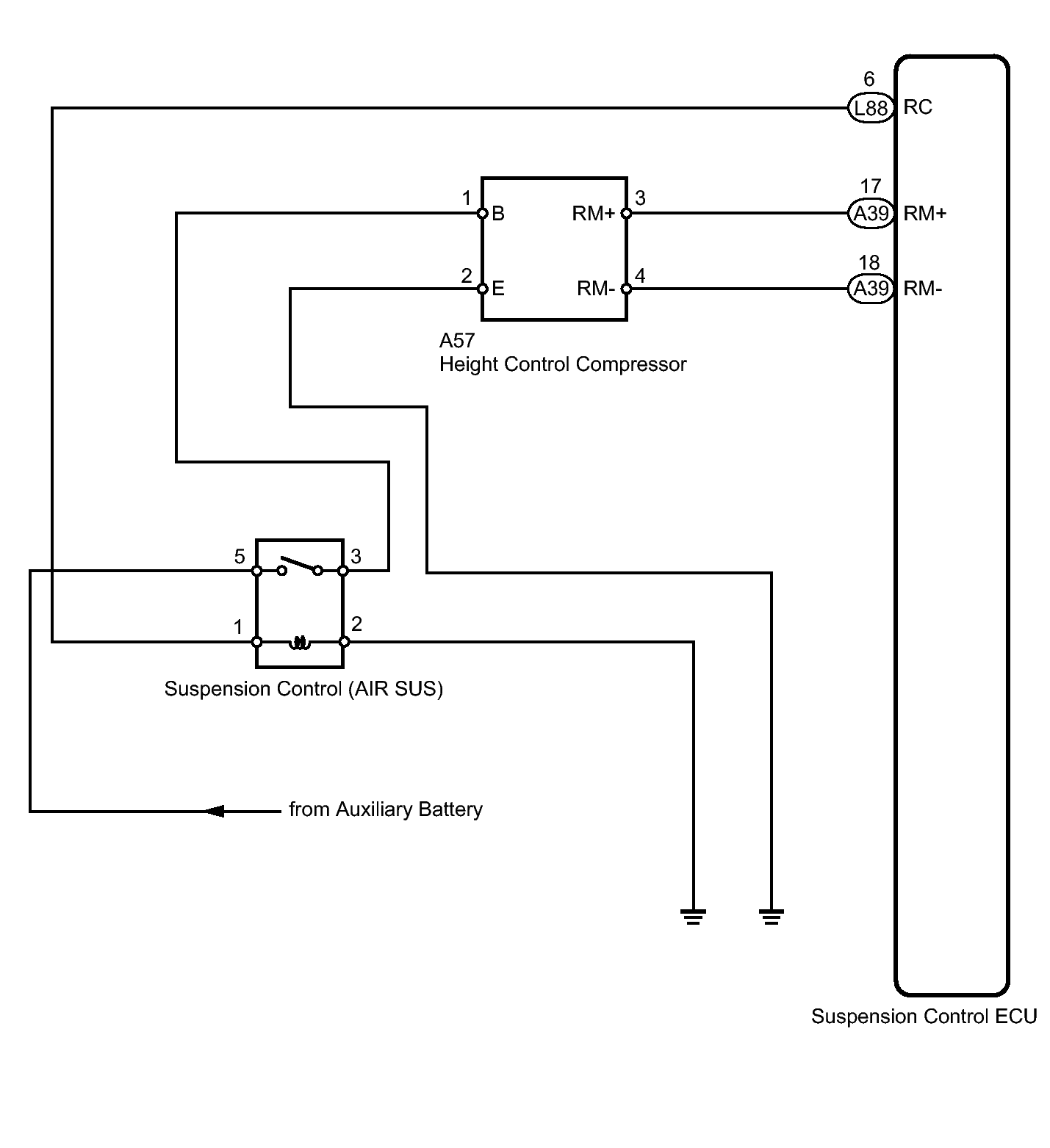

Fig 1: Height Control Compressor Wiring Diagram

GTY267834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
