DTC C1752: Height Control Compressor Motor Circuit Malfunction: Procedure

1. Turn the power switch OFF.
2. Remove the suspension control relay from the engine room No. 5 relay block.
   Fig 1: Identifying Suspension Control Relay And Relay Block

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   3 - 5	When 12 V battery voltage is not applied to terminal 1 and 2	10 kΩ or higher
   	When 12 V battery voltage is applied to terminal 1 and 2	Below 1 Ω

NG → REPLACE SUSPENSION CONTROL RELAY

OK: Go to next step

1. Remove the suspension control relay from the engine room No. 5 relay block.
   Fig 2: Identifying Suspension Control Relay Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   Relay block suspension control relay terminal 5 - Body ground	Always	11 to 14 V

3. Disconnect the A57 compressor connector.

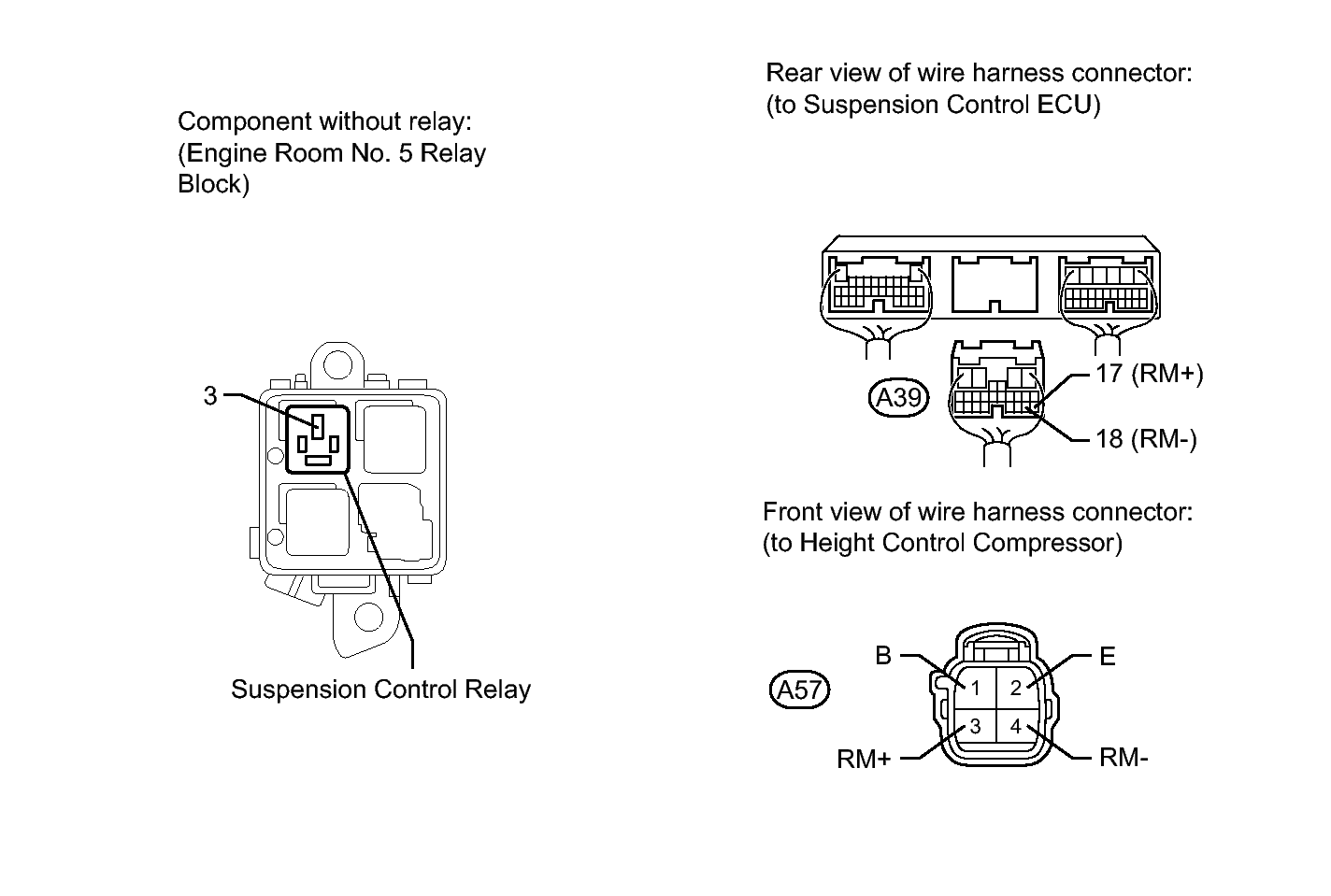

   Fig 3: Identifying Suspension Control Relay Terminals, Height Control Compressor Connector A57 And Suspension Control ECU Connector A39

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the A39 ECU connector.
5. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   Relay block suspension control relay terminal 3 - A57-1 (B)	Always	Below 1 Ω
   Relay block suspension control relay terminal 3 or A57-1 (B) - Body ground	Always	10 kΩ or higher
   A57-2 (E) - Body ground	Always	Below 1 Ω
   A57-3 (RM+) - A39-17 (RM+)	Always	Below 1 Ω
   A57-3 (RM+) or A39-17 (RM+) - Body ground	Always	10 kΩ or higher
   A57-4 (RM-) - A39-18 (RM-)	Always	Below 1 Ω
   A57-4 (RM-) or A39-18 (RM-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the height control compressor. Refer to REMOVAL .
   Fig 4: Identifying Height Control Compressor Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply 12 V battery voltage to the compressor motor and check the operation of the motor.

   OK

   Measurement Condition	Specified Condition
   12 V battery positive (+) → Terminal 1 (B) 12 V battery negative (-) → Terminal 2 (E)	Motor operates

   NOTE:

   • Do not allow the motor to operate for approximately 60 seconds or more.
   • If the compressor is shorted, locked, or has a similar type of malfunction, a large amount of current will be flowing. Therefore, if the motor does not operate, immediately stop this inspection.

NG → See step   4

OK → See step   5
