DTC C1745: Exhaust Solenoid Valve Circuit Malfunction: Wiring Diagram

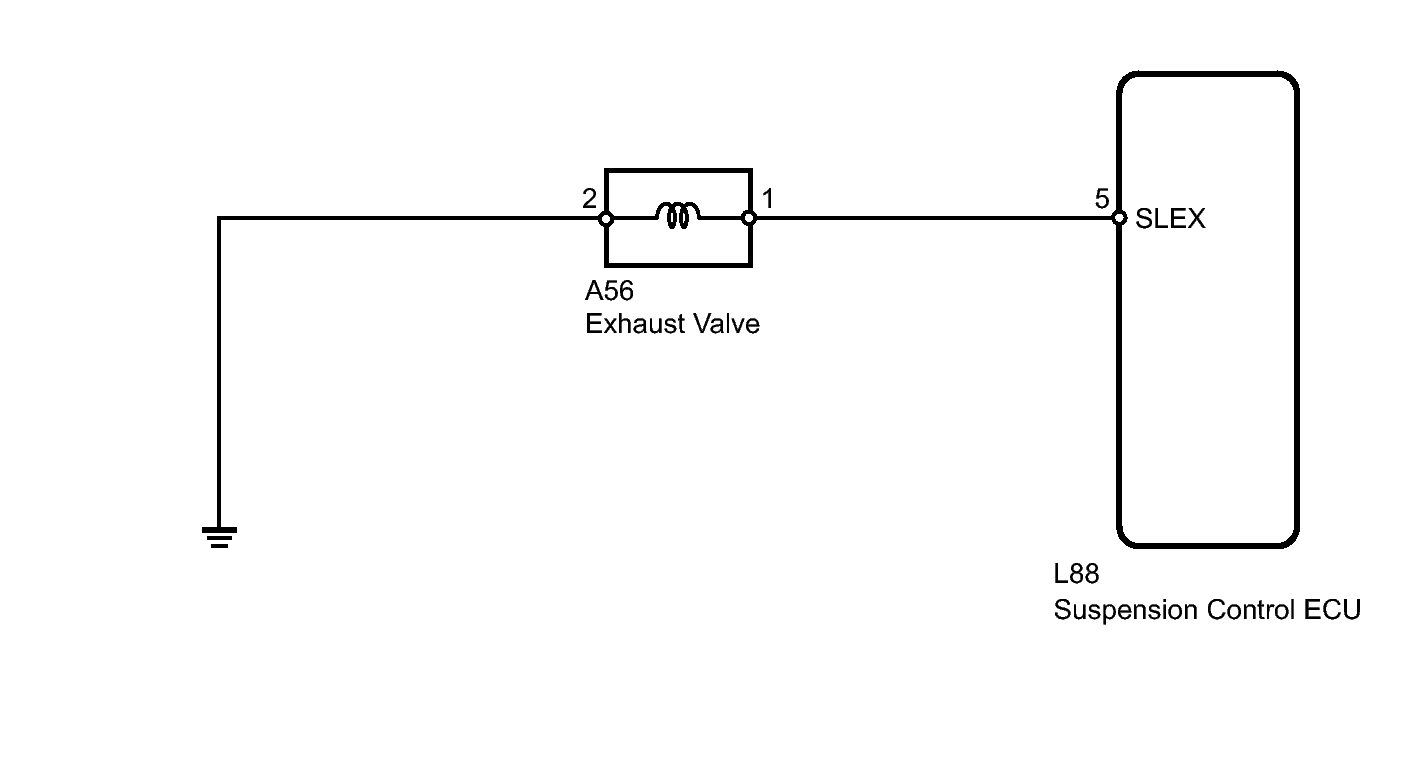

Fig 1: Exhaust Solenoid Valve - Wiring Diagram

GTY109877

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
