DTC C1745: Exhaust Solenoid Valve Circuit Malfunction: Procedure

1. Clear the DTC. Refer to DTC CHECK / CLEAR .

NEXT: Go to next step

1. Turn the power switch OFF.
2. Connect the Techstream to the DLC3.
3. Turn the power switch ON (IG) and the Techstream ON.
4. Enter the following menus: Chassis / Air suspension / Active Test.
5. Check the operation sound of the exhaust valve when the solenoid is turned on through the ACTIVE TEST.
   AIR SUSPENSION



   Tester Display	Test Part	Control Range	Diagnostic Note
   Exhaust Solenoid	Exhaust solenoid	ON or OFF	Operation of solenoid (clicking sound) can be heard

   OK

   Operation of solenoid (clicking sound) can be heard

NG → See step   3

OK → See step   7

1. Turn the power switch OFF.
2. Remove the height control compressor. Refer to REMOVAL .

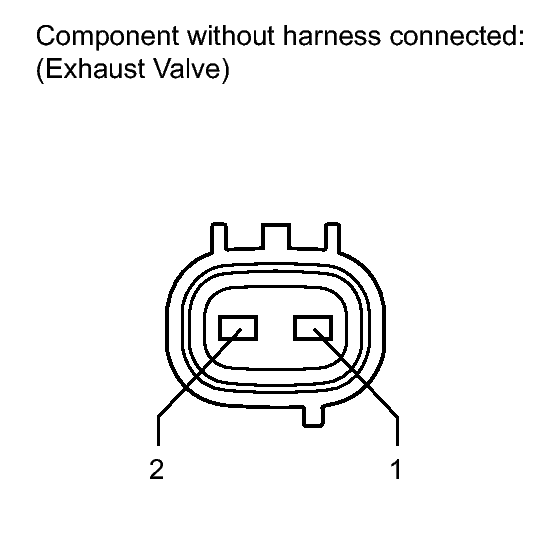

   Fig 1: Identifying Exhaust Solenoid Valve Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   1 - 2	20°C (68°F)	10 to 14 Ω

NG → See step   6

OK: Go to next step

1. Turn the power switch OFF.
2. Disconnect the L88 ECU connector.
3. Disconnect the A56 exhaust valve connector.
4. Measure the resistance according to the value(s) in the table below.

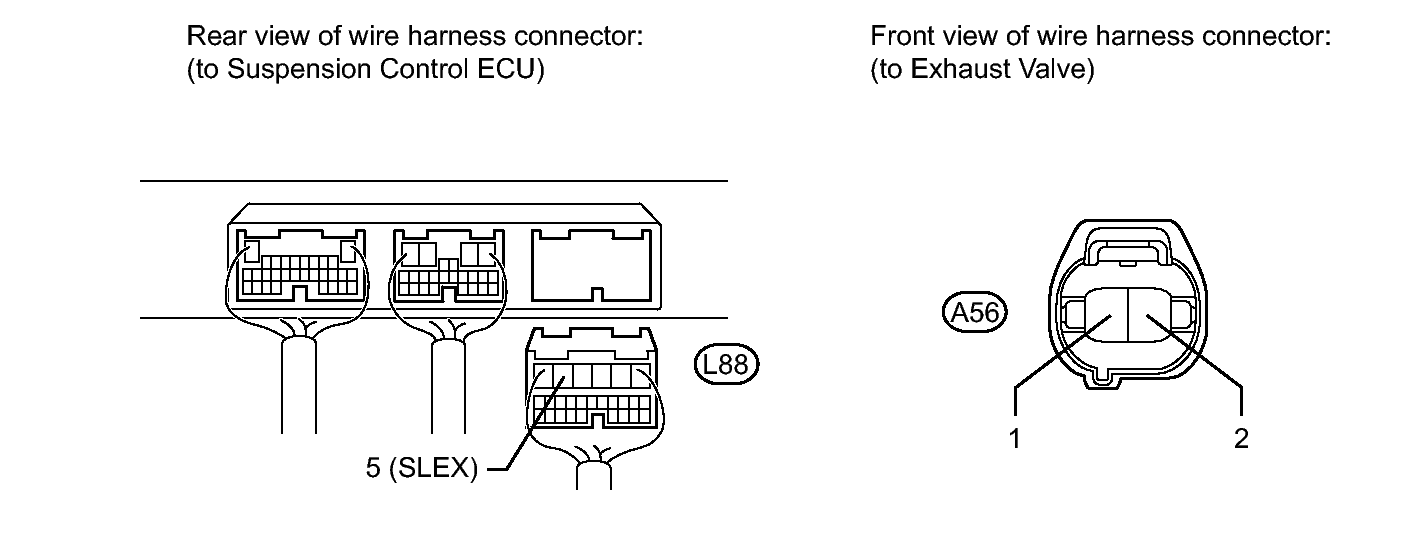

   Fig 2: Identifying L88 ECU Connector And A56 Exhaust Valve Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Tester Connection	Condition	Specified Condition
   A56-1 - L88-5 (SLEX)	Always	Below 1 Ω
   A56-1 or L88-5 (SLEX) - Body ground	Always	10 kΩ or higher
   A56-2 - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   5
