DTC C1743: Rear Height Control Solenoid Valve RH Circuit Malfunction; DTC C1744: Rear Height Control Solenoid Valve LH Circuit Malfunction: Procedure

1. Clear the DTC. Refer to DTC CHECK / CLEAR .

NEXT: Go to next step

1. Turn the power switch OFF.
2. Connect the Techstream to the DLC3.
3. Turn the power switch ON (IG) and the Techstream ON.
4. Enter the following menus: Chassis / Air suspension / Active Test.
5. Check the operation sound of the height control solenoid valve when the solenoid is turned on through the ACTIVE TEST.
   AIR SUSPENSION



   Tester Display	Test Part	Control Range	Diagnostic Note
   Rear Right Solenoid	Rear height control solenoid valve RH	ON or OFF	Operation of solenoid (clicking sound) can be heard
   Rear Left Solenoid	Rear height control solenoid valve LH	ON or OFF	Operation of solenoid (clicking sound) can be heard

   OK

   An operation sound is heard 1 second after the height control solenoid valve is turned on.

NG → See step   3

OK → See step   7

1. Remove the rear height control valve. Refer to REMOVAL .
   Fig 1: Identifying Rear Height Control Valve Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   C1743:



   Tester Connection	Condition	Specified Condition
   1 (+RH) - 2 (E)	20°C (68°F)	10 to 14 Ω

   C1744:



   Tester Connection	Condition	Specified Condition
   3 (+LH) - 2 (E)	20°C (68°F)	10 to 14 Ω

NG → See step   6

OK: Go to next step

1. Disconnect the L88 ECU connector.
2. Disconnect the z14 height control valve connector.
3. Measure the resistance according to the value(s) in the table below.

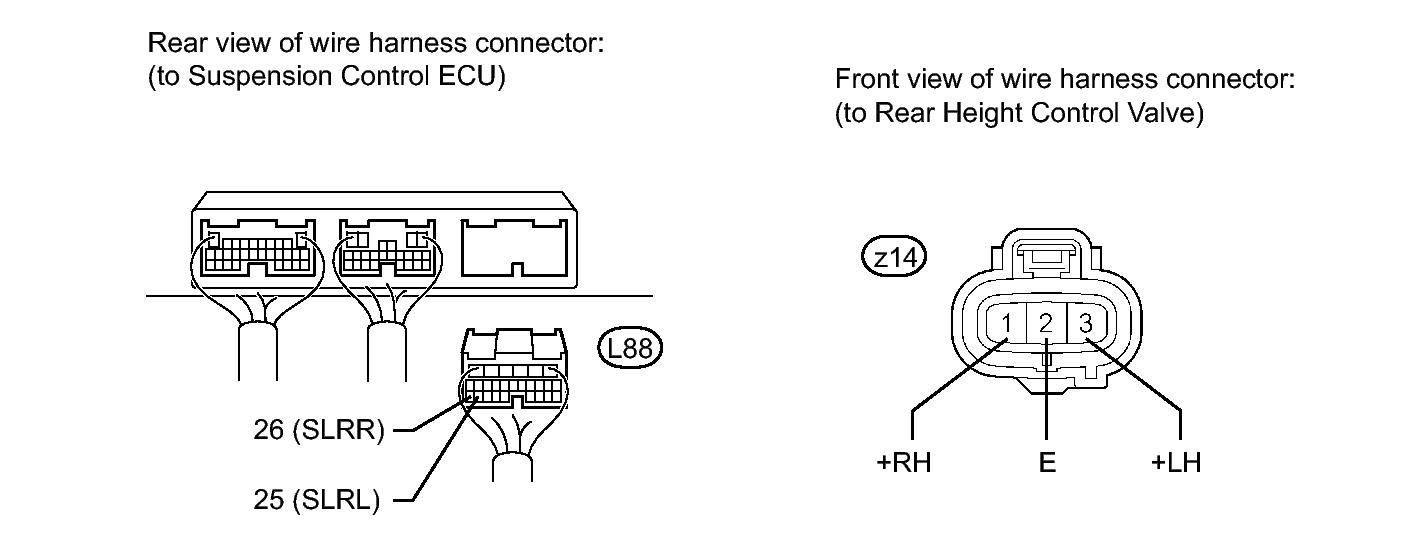

   Fig 2: Identifying Suspension Control ECU Connector L88 And Rear Height Control Valve Connector Z14

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   C1743:



   Tester Connection	Condition	Specified Condition
   L88-26 (SLRR) - z14-1 (+RH)	Always	Below 1 Ω
   L88-26 (SLRR) or z14-1 (+RH) - Body ground	Always	10 kΩ or higher
   z14-2 (E) - Body ground	Always	Below 1 Ω

   C1744:



   Tester Connection	Condition	Specified Condition
   L88-25 (SLRL) - z14-3 (+LH)	Always	Below 1 Ω
   L88-25 (SLRL) or z14-3 (+LH) - Body ground	Always	10 kΩ or higher
   z14-2 (E) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   5
