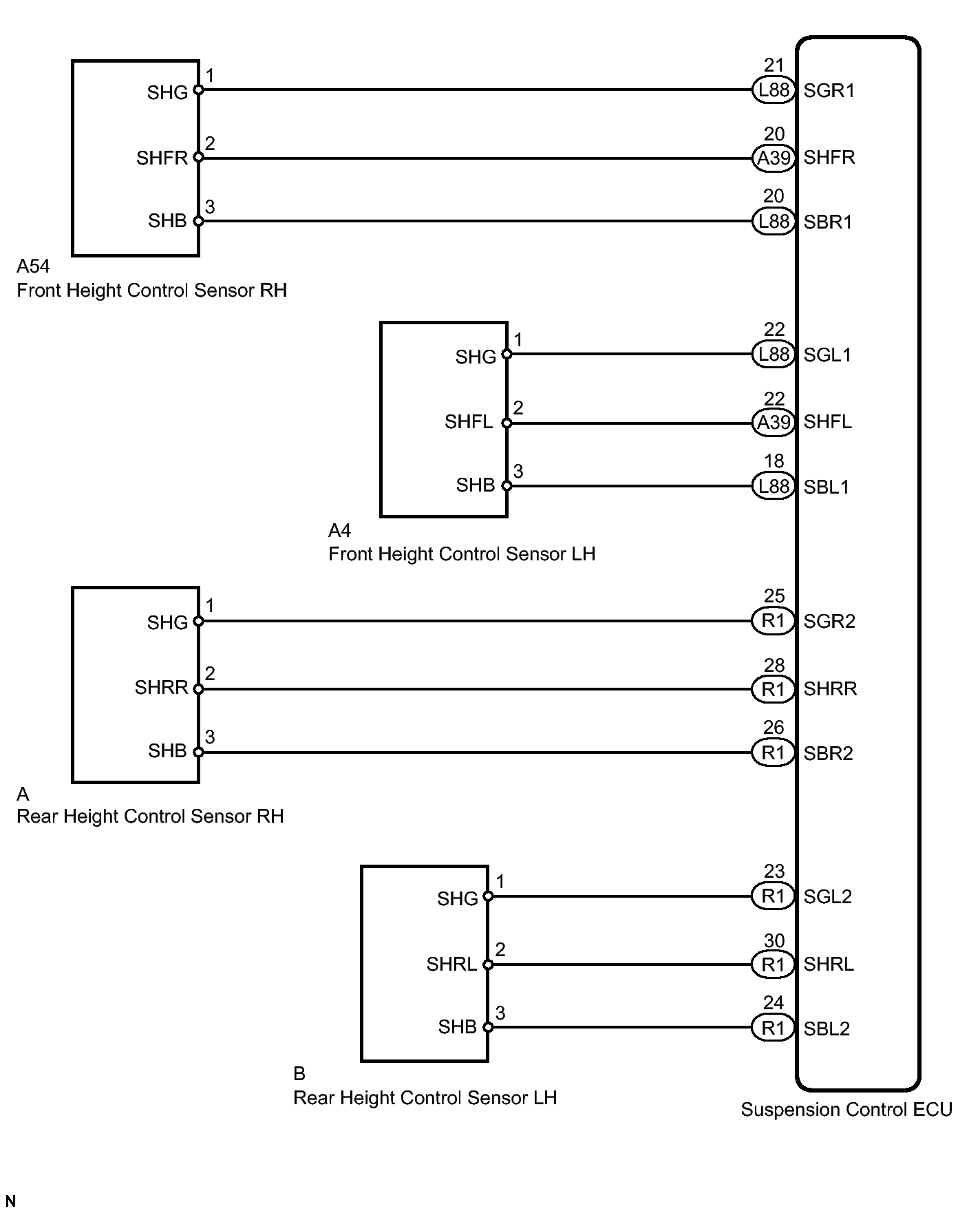

DTC C1711: Front Height Control Sensor RH Circuit Malfunction; DTC C1712: Front Height Control Sensor LH Circuit Malfunction; DTC C1713: Rear Height Control Sensor RH Circuit Malfunction; DTC C1714: Rear Height Control Sensor LH Circuit Malfunction: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
