DTC P2532-772: Ignition Switch Run Position Circuit High: Wiring Diagram

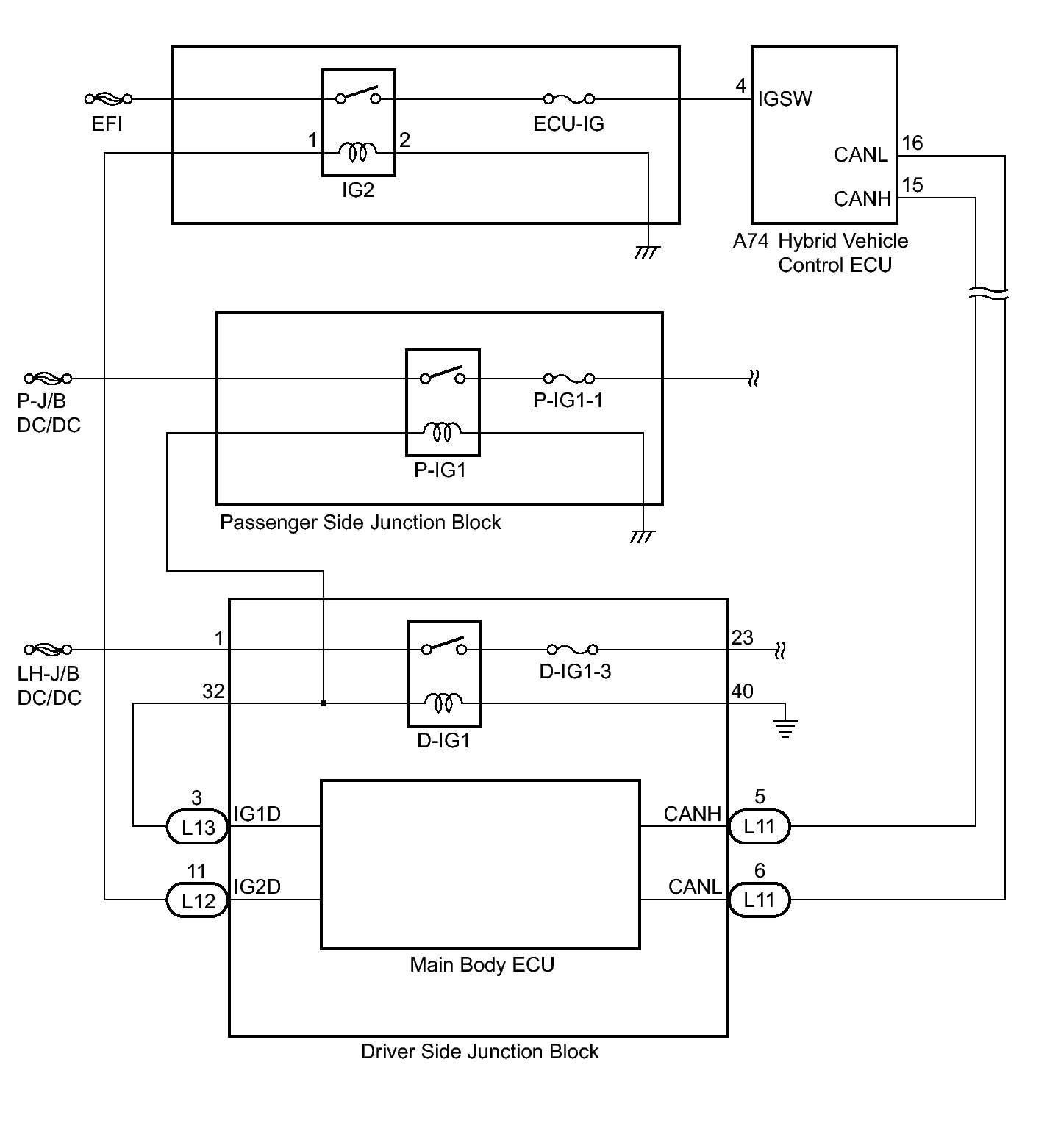

Fig 1: Ignition Switch Run Position Circuit

GTY267110

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
