DTC P2519-766: A/C Request "A" Circuit: Wiring Diagram

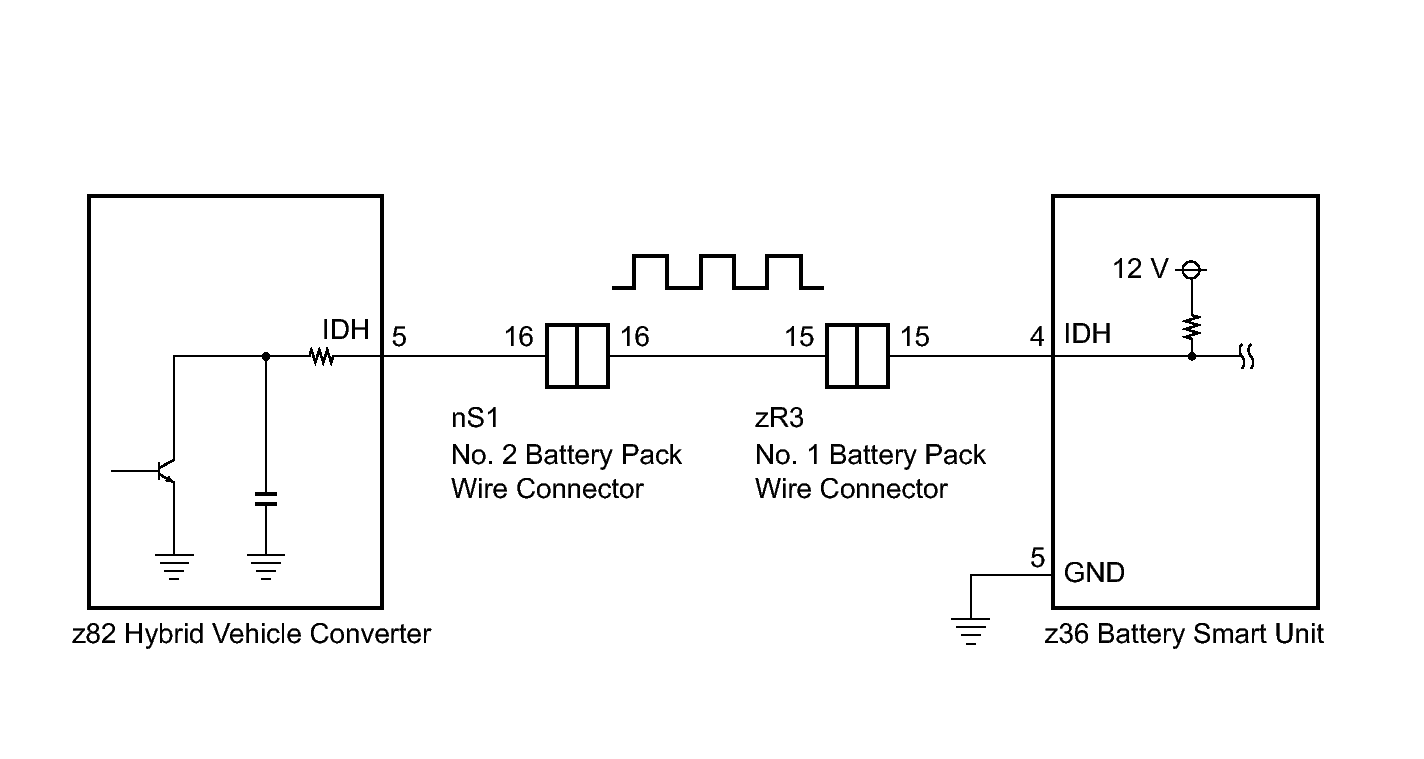

Fig 1: Hybrid Vehicle Converter To Battery Smart Unit Wiring Diagram

GTY265282

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
