DTC P0868-866: Transmission Fluid Pressure Low; DTC P0868-894: Transmission Fluid Pressure Low: Procedure

  1. CHECK DTC OUTPUT (HV)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Select the following menu items: Powertrain / Hybrid Control / Trouble Codes.
    4. Check if DTCs are output.

      Result

      Result Proceed to
      P0868-866 or P0868-894 only is output. A
      Any of the following DTCs are also output. B
      DTC No. Relevant Diagnosis
      P0722-854 Output Speed Sensor Circuit No Signal
      P0731-873 Gear 1 Incorrect Ratio
      P0732-869 Gear 2 Incorrect Ratio
      P0748-850 Pressure Control Solenoid "A" Electrical (Shift Solenoid Valve SL1)
      P0778-851 Pressure Control Solenoid "B" Electrical (Shift Solenoid Valve SL2)
      P0867-880 Transmission Fluid Pressure
      P0A3F-243 Drive Motor "A" Position Sensor Circuit
      P0A40-500 Drive Motor "A" Position Sensor Circuit Range / Performance
      P0A41-245 Drive Motor "A" Position Sensor Circuit Low

    B → See step   24

    A: Go to next step

  2. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)
    1. Turn the power switch off.
    2. Check the connections of the hybrid vehicle control ECU connectors.

      OK

      The connectors are connected securely and there are no contact problems.

    NG → CONNECT SECURELY

    OK: Go to next step

  3. CHECK CONNECTOR CONNECTION CONDITION (TRANSMISSION WIRE CONNECTOR)
    1. Check the connection of the transmission wire connector.

      OK

      The connector is connected securely and there are no contact problems.

    NG → CONNECT SECURELY

    OK: Go to next step

  4. CHECK CONNECTOR CONNECTION CONDITION (OIL PUMP MOTOR CONTROLLER CONNECTOR)
    NOTE:

    Before disconnecting the connectors, confirm that they are properly connected by checking that the locking claws are engaged and that the connectors cannot be pulled out.

    1. Check the connections of the oil pump motor controller connectors.
      Fig 1: Locating Oil Pump Motor Controller Connectors
      GTY147641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The connectors are connected securely and there are no contact problems.

      HINT:

      For connector A, when connecting it, insert it with the locking lever in the raised position. Rotate the lever downward and make sure that the connector is pulled into its socket. When the locking lever is in its fully closed position, a click will be heard as its locking claws engage. After the click is heard, pull up on the connector to confirm that it is properly connected.

    NG → CONNECT SECURELY

    OK: Go to next step

  5. CHECK FUSIBLE LINK BLOCK ASSEMBLY (OIL PMP)
    1. Check if there is an open circuit in the fusible link (OIL PMP) in the engine room No. 1 junction block.
      Fig 2: Identifying Fusible Link (Oil Pump)
      GTY148116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      There is no open circuit in the fusible link (OIL PMP).

    NG → REPLACE FUSIBLE LINK BLOCK ASSEMBLY

    OK: Go to next step

  6. CHECK HYBRID VEHICLE TRANSMISSION ASSEMBLY (SL1 SOLENOID VALVE, SL2 SOLENOID VALVE AND SP SOLENOID VALVE)
    1. Turn the power switch off.
    2. Disconnect connector E55 from the hybrid vehicle control ECU.
      Fig 3: Identifying Connector E55 From Hybrid Vehicle Control ECU
      GTY142782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      E55-8 (SP) - Body ground Power switch off 11 to 15 Ω
      E55-3 (SL1+) - E55-2 (SL1-) 68°F (20°C) 5.0 to 5.6 Ω
      E55-11 (SL2+) - E55-10 (SL2-) 68°F (20°C) 5.0 to 5.6 Ω

    NG → See step   19

    OK: Go to next step

  7. CHECK RELAY (OIL PMP) See step   8

    NG → See step   27

    OK: Go to next step

  8. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - OIL PUMP MOTOR CONTROLLER)
    1. Turn the power switch off.
      Fig 4: Identifying A74 And A78 Terminal Connectors
      GTY262633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect connector A74 from the hybrid vehicle control ECU.
    3. Disconnect connector A78 from the oil pump motor controller.
    4. Turn the power switch on (IG).
    5. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      A74-32 (OPM1) - Body ground Power switch on (IG) Below 1 V
      A74-33 (OPST) - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the hybrid vehicle control ECU connector and oil pump motor controller connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    6. Turn the power switch off.
    7. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      A74-32 (OPM1) - A78-6 (SI) Power switch off Below 1 Ω
      A74-33 (OPST) - A78-7 (OPST) Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      A74-32 (OPM1) - Body ground and other terminals Power switch off 10 kΩ or higher
      A74-33 (OPST) - Body ground and other terminals Power switch off 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  9. CHECK OIL WITH MOTOR PUMP ASSEMBLY See step   9

    NG → See step   29

    OK: Go to next step

  10. CHECK OIL PUMP MOTOR CONTROLLER (POWER SOURCE CIRCUIT) See step   10

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  11. CHECK TRANSMISSION REVOLUTION SENSOR (SP2)
    1. Disconnect connector E55 from the hybrid vehicle control ECU.
      Fig 5: Identifying Connector E55 From Hybrid Vehicle Control ECU
      GTY133415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      E55-29 (SP2+) - E55-28 (SP2-) 68°F (20°C) 560 to 680 Ω

    NG → See step   20

    OK: Go to next step

  12. CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR)
    NOTE:

    Before disconnecting the connector, confirm that it is properly connected by checking that the locking claws are engaged and that the connector cannot be pulled out.

    1. Check the connection of the low voltage connector of the inverter with converter assembly.

      OK

      The connector is connected securely and there are no contact problems.

      HINT:

      When connecting the connector, insert it with the locking lever in the raised position. Rotate the lever downward and make sure that the connector is pulled into its socket. When the locking lever is in its fully closed position, a click will be heard as its locking claws engage. After the click is heard, pull up on the connector to confirm that it is properly connected.

    NG → CONNECT SECURELY

    OK: Go to next step

  13. CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - MOTOR RESOLVER)
    WARNING:

    Be sure to wear insulated gloves.

    1. Turn the power switch off.
      Fig 6: Identifying A77 Connector Terminals
      GTY138876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the service plug grip. Refer to PRECAUTION .
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY) unless instructed by the repair information because this may cause a malfunction.

    3. Disconnect the low voltage connector from the inverter with converter assembly.
    4. Turn the power switch on (IG).
    5. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      A77-40 (MRF) - Body ground Power switch on (IG) Below 1 V
      A77-29 (MRFG) - Body ground Power switch on (IG) Below 1 V
      A77-39 (MSN) - Body ground Power switch on (IG) Below 1 V
      A77-28 (MSNG) - Body ground Power switch on (IG) Below 1 V
      A77-38 (MCS) - Body ground Power switch on (IG) Below 1 V
      A77-27 (MCSG) - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the low voltage connector of the inverter with converter assembly disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  14. CHECK MOTOR RESOLVER
    1. Turn the power switch off.
    2. Measure the resistance according to the value(s) in the table below.
      Fig 7: Identifying A77 Connector Terminals
      GTY138876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      A77-40 (MRF) - A77-29 (MRFG) Power switch off 4.5 to 16.8 Ω
      A77-39 (MSN) - A77-28 (MSNG) Power switch off 9.3 to 27.8 Ω
      A77-38 (MCS) - A77-27 (MCSG) Power switch off 12.4 to 30.7 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      A77-40 (MRF) or A77-29 (MRFG) - Body ground and other terminals Power switch off 10 kΩ or higher
      A77-39 (MSN) or A77-28 (MSNG) - Body ground and other terminals Power switch off 10 kΩ or higher
      A77-38 (MCS) or A77-27 (MCSG) - Body ground and other terminals Power switch off 10 kΩ or higher

    NG → See step   22

    OK: Go to next step

  15. CLEAR DTC
    1. Select the following menu items: Powertrain / Hybrid Control / Trouble Codes.
    2. Read and record the DTCs and freeze frame data.
    3. Select the following menu items: Powertrain / Hybrid Control / Trouble Codes.
    4. Clear DTCs and freeze frame data.

    NEXT: Go to next step

  16. SIMULATION TEST
    1. Turn the power switch on (READY).
    2. Select the following menu items: Powertrain / Hybrid Control / Data List / Motor (MG2) Revolution, Output Shaft Speed, Output Shaft Speed Calculated by Wheel Speed.
    3. Perform a stall test and road test, and read the data list.

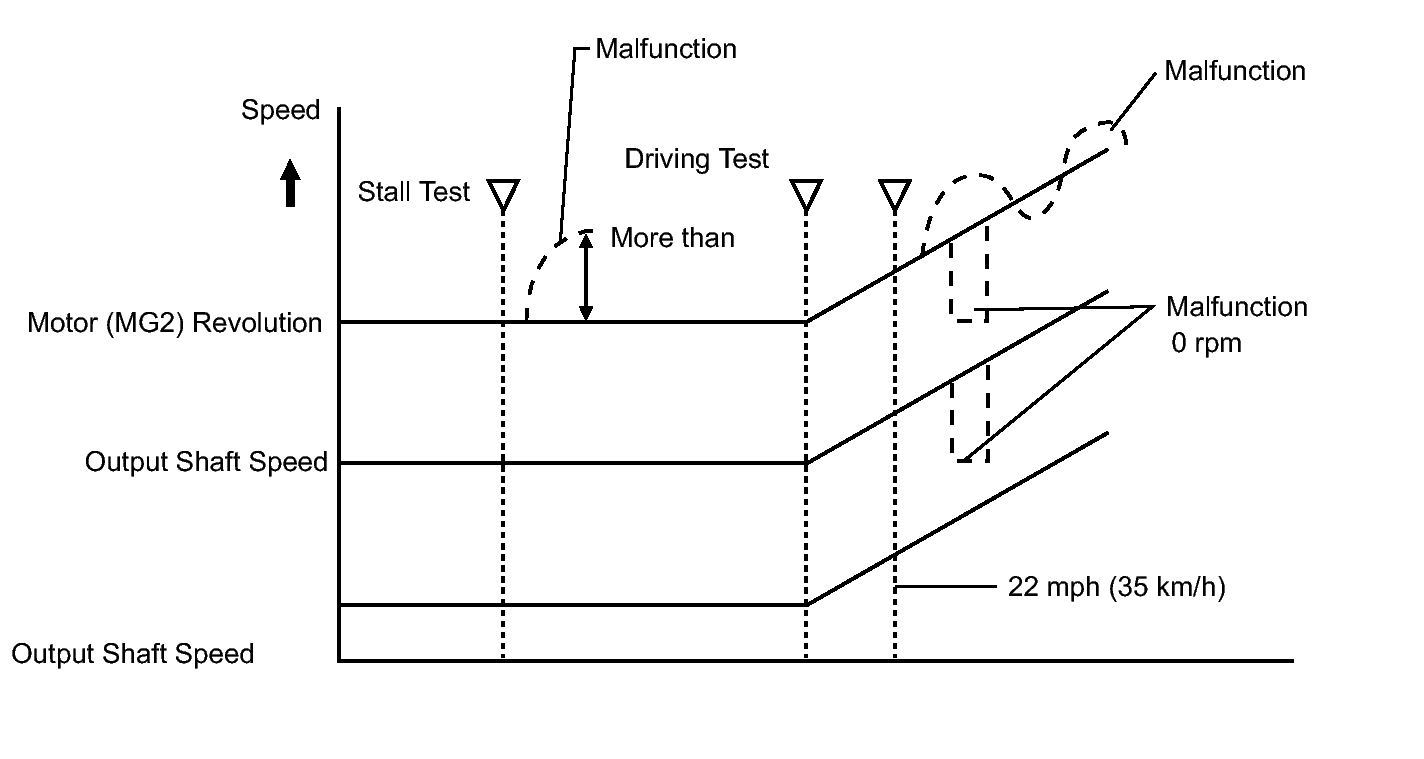

      Fig 8: Simulation Test Reference Graph For Vehicle Speed
      GTY146612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Before inspection, sufficiently warm up the engine.
      • Make sure to perform this procedure after the engine has been inspected and adjusted.
      • Do not perform a stall test for 5 or more seconds.
      • Perform a stall test on an asphalt surface or other place with a high friction coefficient (μ) in order to prevent wheel spin.

      HINT:

      • When performing a road test, the vehicle speed should be 22 mph (35 km/h) or more.
      • Avoid sudden acceleration and deceleration during a road test.

      OK

      The "Motor (MG2) Revolution" value in the data list changes normally. The "Output Shaft Speed" and "Output Shaft Speed Calculated by Wheel Speed" values should be almost equal with a vehicle speed of 22 mph (35 km/h) or more.

    NG → See step   25

    OK: Go to next step

  17. CHECK FOR INTERMITTENT PROBLEMS
    1. Check for intermittent problems. Refer to CHECK FOR INTERMITTENT PROBLEMS .

    NG → REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

    OK: Go to next step

  18. CHECK FLUID LEAKS
    1. Check for fluid leaks from the hybrid vehicle transmission assembly. Refer to ON-VEHICLE INSPECTION .

      OK

      There are no fluid leaks.

    NG → See step   28

    OK → See step   26

  19. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - TRANSMISSION WIRE)
    1. Disconnect the transmission wire connector.
      Fig 9: Identifying E61 And E55 Terminal Connectors
      GTY143503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      E55-8 (SP) - Body ground Power switch on (IG) Below 1 V
      E55-2 (SL1-) - Body ground Power switch on (IG) Below 1 V
      E55-3 (SL1+) - Body ground Power switch on (IG) Below 1 V
      E55-10 (SL2-) - Body ground Power switch on (IG) Below 1 V
      E55-11 (SL2+) - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the hybrid vehicle control ECU connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    4. Turn the power switch off.
    5. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      E55-8 (SP) - E61-4 (SP) Power switch off Below 1 Ω
      E55-2 (SL1-) - E61-13 (SL1-) Power switch off Below 1 Ω
      E55-3 (SL1+) - E61-6 (SL1+) Power switch off Below 1 Ω
      E55-10 (SL2-) - E61-12 (SL2-) Power switch off Below 1 Ω
      E55-11 (SL2+) - E61-5 (SL2+) Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      E55-8 (SP) or E61-4 (SP) - Body ground and other terminals Power switch off 10 kΩ or higher
      E55-2 (SL1-) or E61-13 (SL1-) - Body ground and other terminals Power switch off 10 kΩ or higher
      E55-3 (SL1+) or E61-6 (SL1+) - Body ground and other terminals Power switch off 10 kΩ or higher
      E55-10 (SL2-) or E61-12 (SL2-) - Body ground and other terminals Power switch off 10 kΩ or higher
      E55-11 (SL2+) or E61-5 (SL2+) - Body ground and other terminals Power switch off 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   25

  20. CHECK CONNECTOR CONNECTION CONDITION (TRANSMISSION REVOLUTION SENSOR (SP2) CONNECTOR)
    1. Check the connection of the transmission revolution sensor (SP2) connector.

      OK

      The connector is connected securely and there are no contact problems.

    NG → CONNECT SECURELY

    OK: Go to next step

  21. CHECK HARNESS AND CONNECTOR (TRANSMISSION REVOLUTION SENSOR - HYBRID VEHICLE CONTROL ECU)
    1. Disconnect the transmission revolution sensor (SP2) connector.
      Fig 10: Identifying E63 And E55 Terminal Connectors
      GTY147672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      E55-28 (SP2-) - Body ground Power switch on (IG) Below 1 V
      E55-29 (SP2+) - Body ground Power switch on (IG) Below 1 V
      NOTE:

      Turning the power switch on (IG) with the hybrid vehicle control ECU connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

    4. Turn the power switch off.
    5. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      E55-28 (SP2-) - E63-1 Power switch off Below 1 Ω
      E55-29 (SP2+) - E63-2 Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      E55-28 (SP2-) or E63-1 - Body ground and other terminals Power switch off 10 kΩ or higher
      E55-29 (SP2+) or E63-2 - Body ground and other terminals Power switch off 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   25

  22. CHECK CONNECTOR CONNECTION CONDITION (MOTOR RESOLVER CONNECTOR)
    1. Check the connection of the motor resolver connector.

      OK

      The connector is connected securely and there are no contact problems.

    NG → CONNECT SECURELY

    OK: Go to next step

  23. CHECK HARNESS AND CONNECTOR (INVERTER WITH CONVERTER ASSEMBLY - MOTOR RESOLVER)
    1. Disconnect the motor resolver connector.

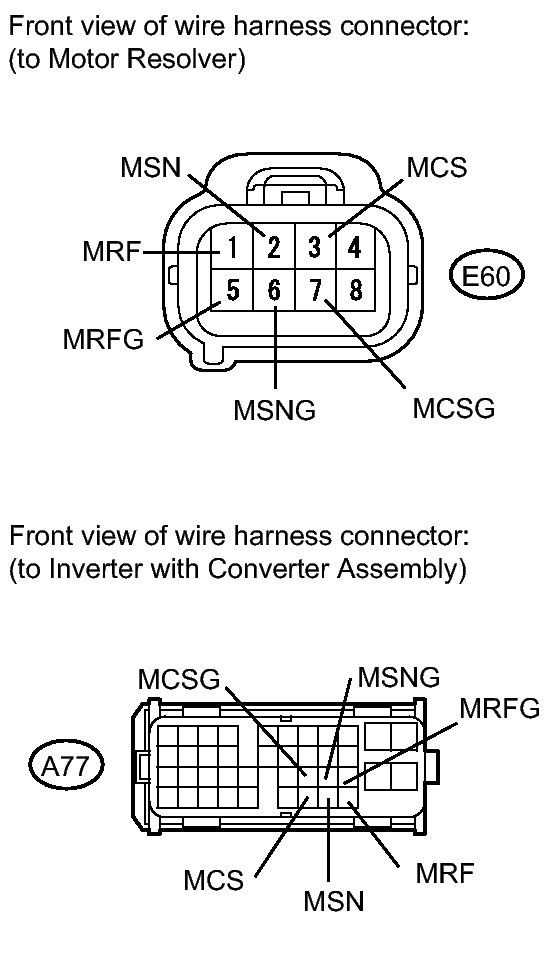

      Fig 11: Identifying E60 And A77 Terminal Connectors
      GTY133956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      A77-40 (MRF) - E60-1 (MRF) Power switch off Below 1 Ω
      A77-29 (MRFG) - E60-5 (MRFG) Power switch off Below 1 Ω
      A77-39 (MSN) - E60-2 (MSN) Power switch off Below 1 Ω
      A77-28 (MSNG) - E60-6 (MSNG) Power switch off Below 1 Ω
      A77-38 (MCS) - E60-3 (MCS) Power switch off Below 1 Ω
      A77-27 (MCSG) - E60-7 (MCSG) Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      A77-40 (MRF) or E60-1 (MRF) - Body ground and other terminals Power switch off 10 kΩ or higher
      A77-29 (MRFG) or E60-5 (MRFG) - Body ground and other terminals Power switch off 10 kΩ or higher
      A77-39 (MSN) or E60-2 (MSN) - Body ground and other terminals Power switch off 10 kΩ or higher
      A77-28 (MSNG) or E60-6 (MSNG) - Body ground and other terminals Power switch off 10 kΩ or higher
      A77-38 (MCS) or E60-3 (MCS) - Body ground and other terminals Power switch off 10 kΩ or higher
      A77-27 (MCSG) or E60-7 (MCSG) - Body ground and other terminals Power switch off 10 kΩ or higher

      HINT:

      The motor resolver is not available separately. If it requires replacement, replace the hybrid vehicle transmission assembly.

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   25

  24. GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART
  25. REPLACE HYBRID VEHICLE TRANSMISSION ASSEMBLY. Refer to  COMPONENTS
  26. REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  COMPONENTS
  27. REPLACE RELAY (OIL PMP). Refer to  COMPONENTS
  28. REPAIR OR REPLACE HYBRID VEHICLE TRANSMISSION ASSEMBLY. Refer to  COMPONENTS
  29. REPLACE OIL WITH MOTOR PUMP ASSEMBLY. Refer to  COMPONENTS
scientia non olet · About LEMON Manuals
