DTC P0748-850: Pressure Control Solenoid "A" Electrical (Shift Solenoid Valve SL1); DTC P0778-851: Pressure Control Solenoid "B" Electrical (Shift Solenoid Valve SL2): Wiring Diagram

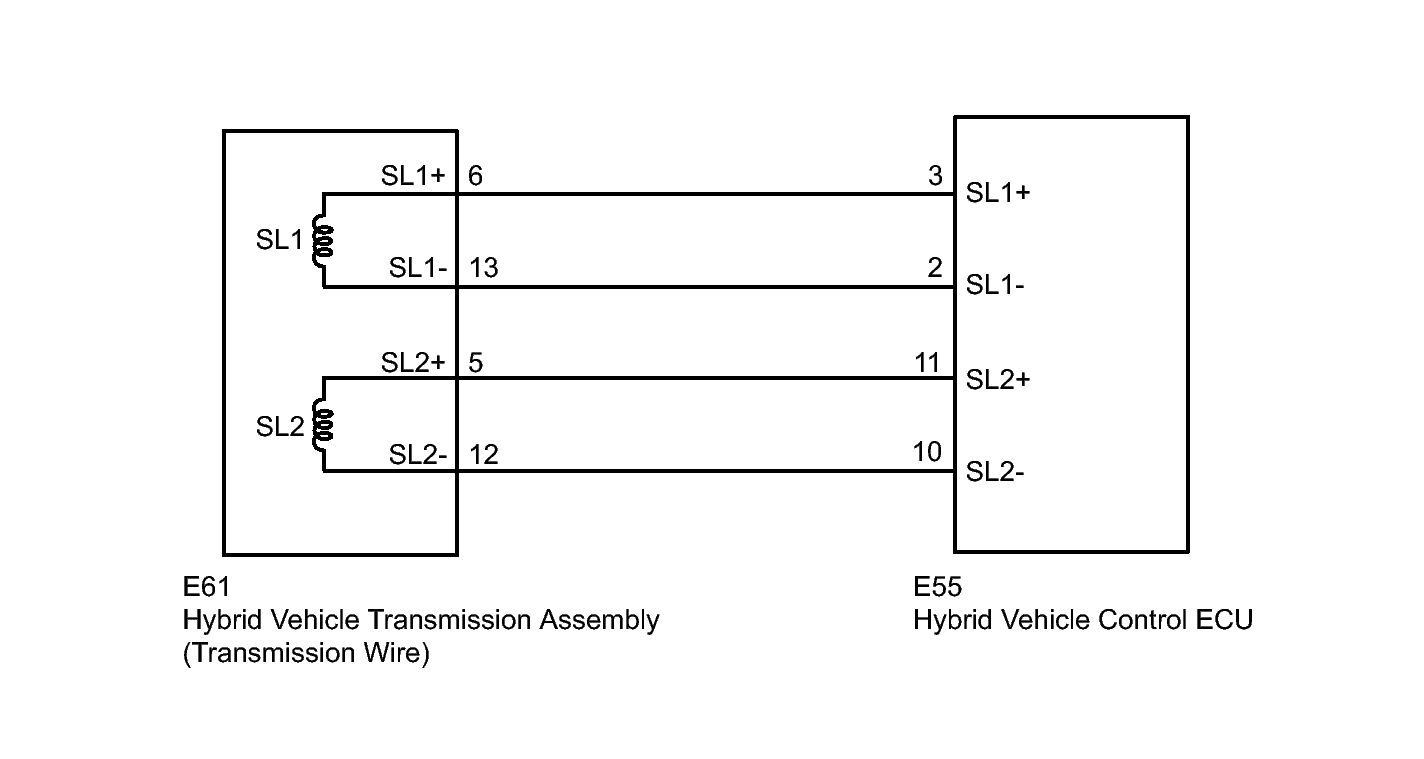

Fig 1: Hybrid Vehicle Transmission Assembly Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
