DTC P0338-885: Crankshaft Position Sensor "A" Circuit High Input: Wiring Diagram

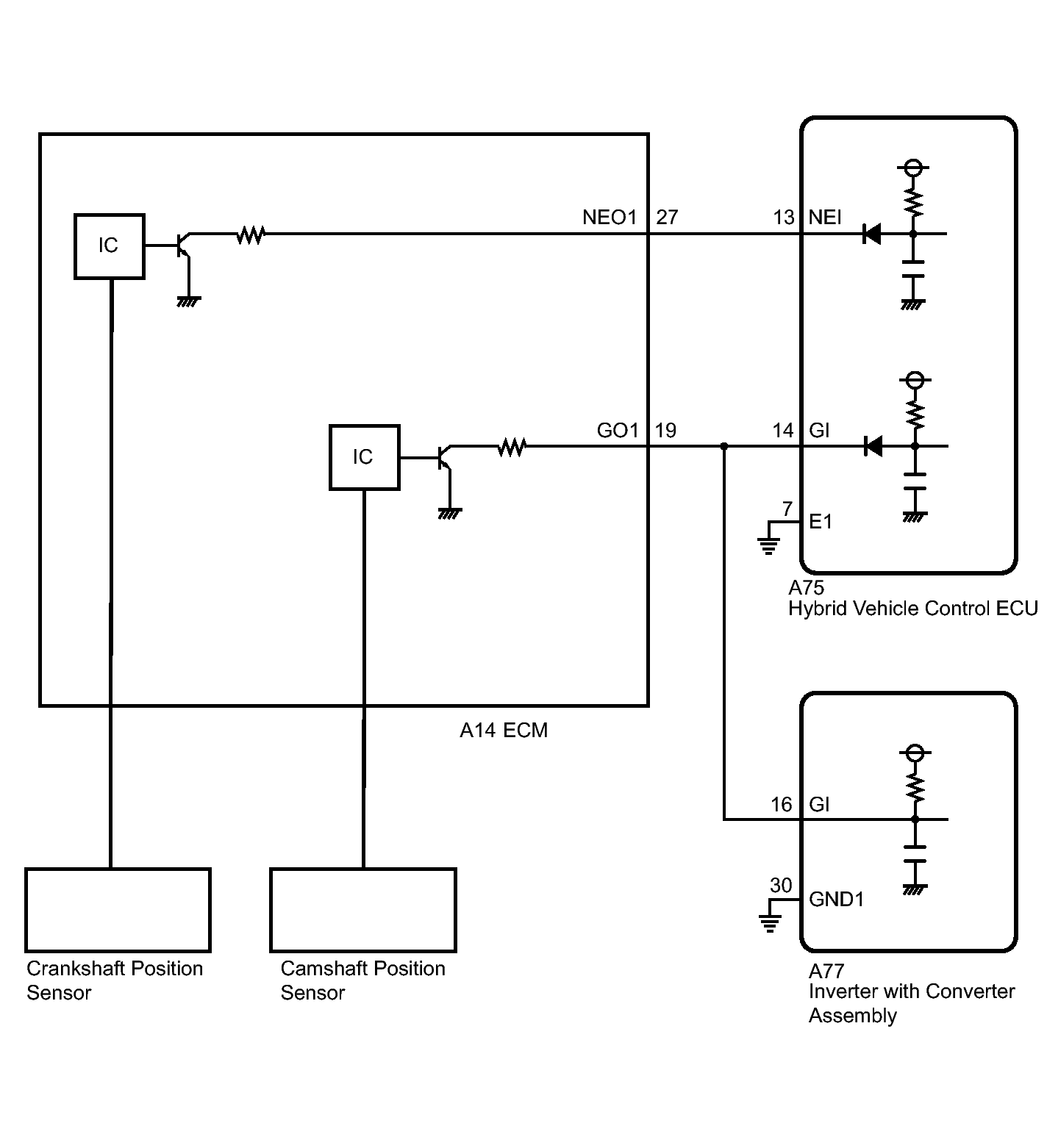

Fig 1: Crankshaft Position Sensor "A" Circuit Diagram For High Input

GTY138402

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
