Instrument Panel Safety Pad: Disassembly: Disassembly

REMOVE POWER SWITCH

Fig 1: Identifying Claws And Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Detach the 2 claws and remove the power switch.
REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

Fig 2: Identifying No. 2 Side Defroster Nozzle Duct Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the screw.
2. Detach the claw and remove the No. 2 side defroster nozzle duct.
REMOVE DEFROSTER NOZZLE ASSEMBLY

Fig 3: Identifying Defroster Nozzle Assembly Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 3 screws and defroster nozzle.
REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

Fig 4: Identifying No. 1 Side Defroster Nozzle Duct Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the screw.
2. Detach the claw and remove the No. 1 side defroster nozzle duct.
REMOVE NO. 1 INSTRUMENT PANEL PIN

Fig 5: Identifying No. 1 Instrument Panel Pin Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws and 2 No. 1 instrument panel pins.
REMOVE NO. 1 HEATER TO REGISTER DUCT

Fig 6: Identifying No. 1 Heater To Register Duct Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 3 screws and No. 1 heater to register duct.
REMOVE NO. 3 HEATER TO REGISTER DUCT

Fig 7: Identifying No. 3 Heater To Register Duct Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 3 screws and No. 3 heater to register duct.
REMOVE FRONT PASSENGER AIRBAG ASSEMBLY . Refer to REMOVAL - Step 10
REMOVE NO. 2 HEATER TO REGISTER DUCT

Fig 8: Identifying No. 2 Heater To Register Duct Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws and No. 2 heater to register duct.
REMOVE TIRE PRESSURE WARNING ECU

Fig 9: Identifying Tire Pressure Warning ECU And Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the bolt and tire pressure warning ECU.
REMOVE NO. 2 INSTRUMENT PANEL WIRE

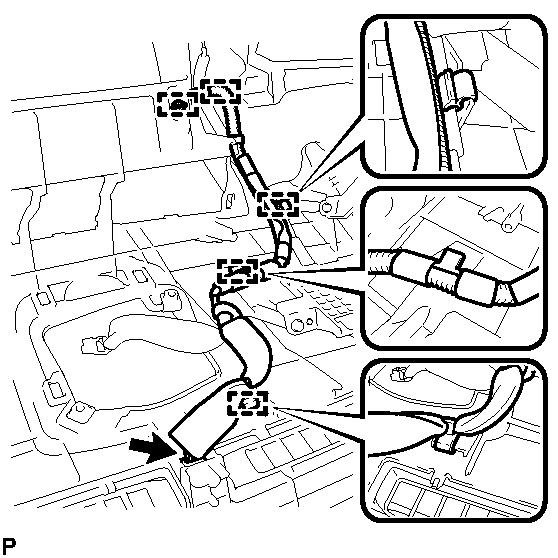

Fig 10: Identifying No. 2 Instrument Panel Wire Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the connector.
2. Detach the 5 clamps and remove the No. 2 instrument panel wire.
REMOVE NO. 2 INSTRUMENT PANEL WIRE (for Leather Covered Type)

Fig 11: Identifying No. 2 Instrument Panel Wire With Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the connector.
2. Detach the 5 clamps and remove the No. 2 instrument panel wire.
REMOVE NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System for DVD) . Refer to REMOVAL - Step 9
REMOVE NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System for HDD) . Refer to REMOVAL - Step 10
REMOVE NO. 1 METER HOOD RETAINER

Fig 12: Identifying No. 1 Meter Hood Retainer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws and 2 meter hood retainers.
REMOVE NO. 2 DEFROSTER NOZZLE GARNISH

Fig 13: Identifying No. 2 Defroster Nozzle Garnish Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Detach the 6 claws and remove the No. 2 defroster nozzle garnish.
REMOVE NO. 1 DEFROSTER NOZZLE GARNISH

Fig 14: Identifying No. 1 Defroster Nozzle Garnish Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Detach the 6 claws and remove the No. 1 defroster nozzle garnish.
REMOVE AUTOMATIC LIGHT CONTROL SENSOR

Fig 15: Removing Solar Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 claws and automatic light control sensor.
