Air Suspension (Diagnostic Codes & Circuit Tests)
>>
Air Suspension System
>>
DTC C1752: Height Control Compressor Motor Circuit Malfunction
>>
Wiring Diagram

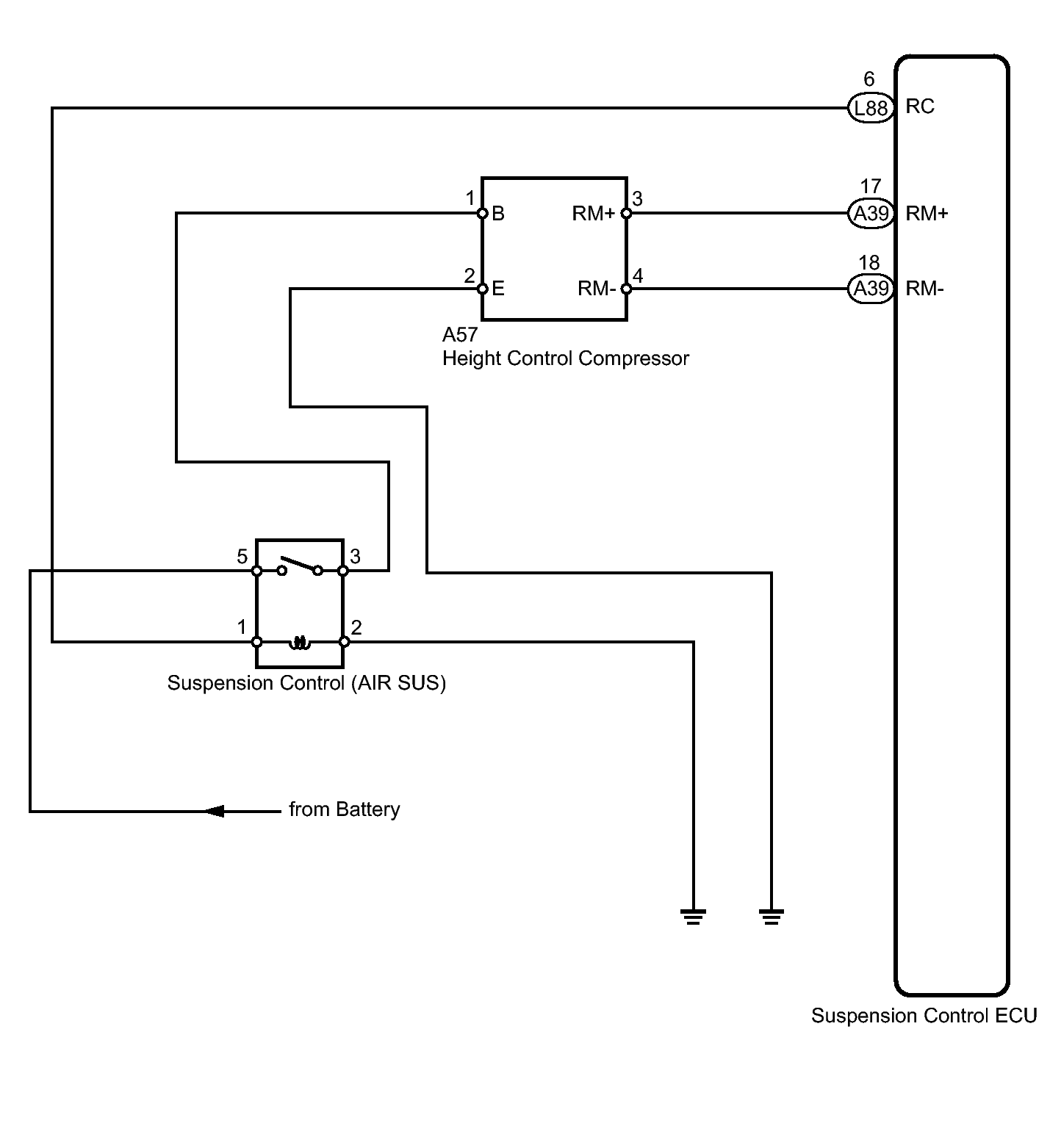

DTC C1752: Height Control Compressor Motor Circuit Malfunction: Wiring Diagram
Fig 1: Identifying Height Control Compressor Motor Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
