DTC C1745: Exhaust Solenoid Valve Circuit Malfunction: Wiring Diagram

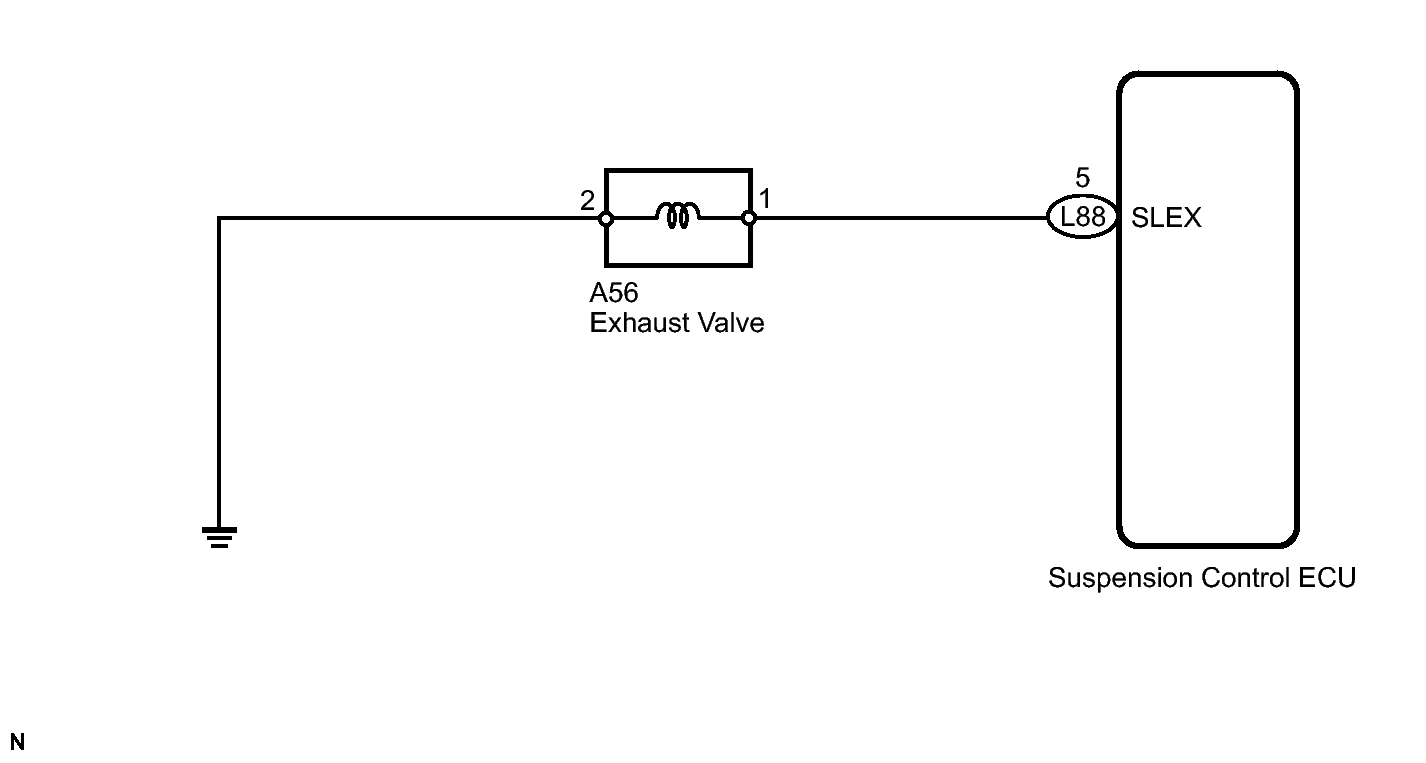

Fig 1: Identifying Exhaust Solenoid Valve Wiring Diagram

GTY272143

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
