DTC C1743: Rear Height Control Solenoid Valve RH Circuit Malfunction; DTC C1744: Rear Height Control Solenoid Valve LH Circuit Malfunction: Wiring Diagram

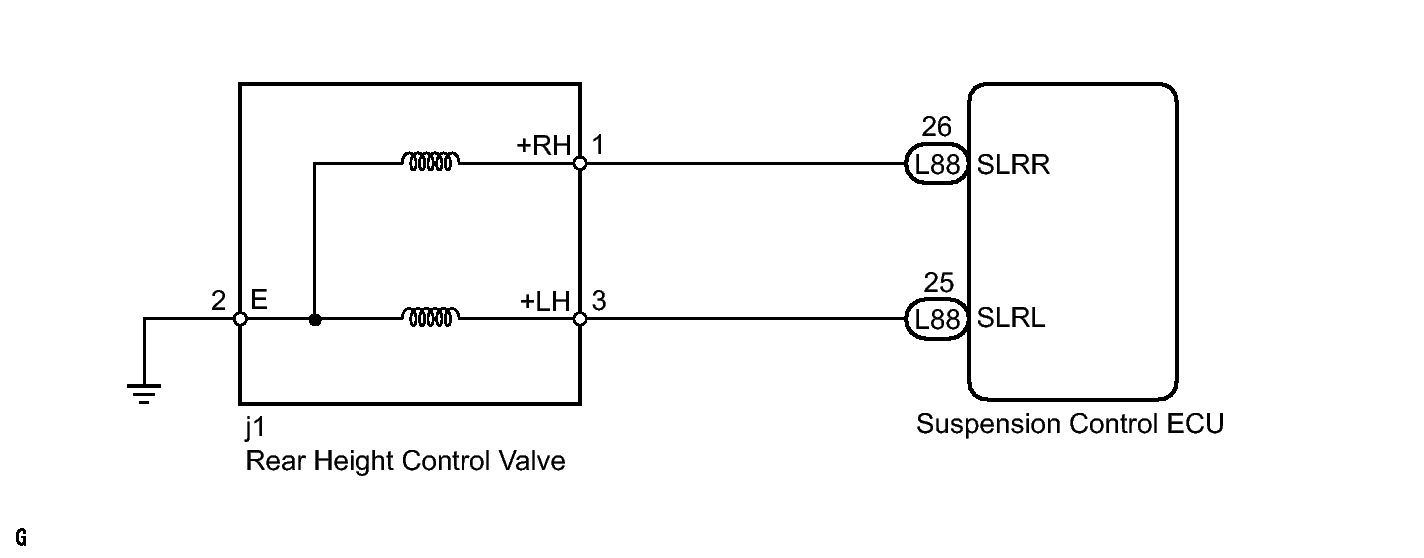

Fig 1: Identifying Rear Height Control Valve Wiring Diagram
GTY275699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
