Luggage Compartment Door Opener does not Operate: Wiring Diagram

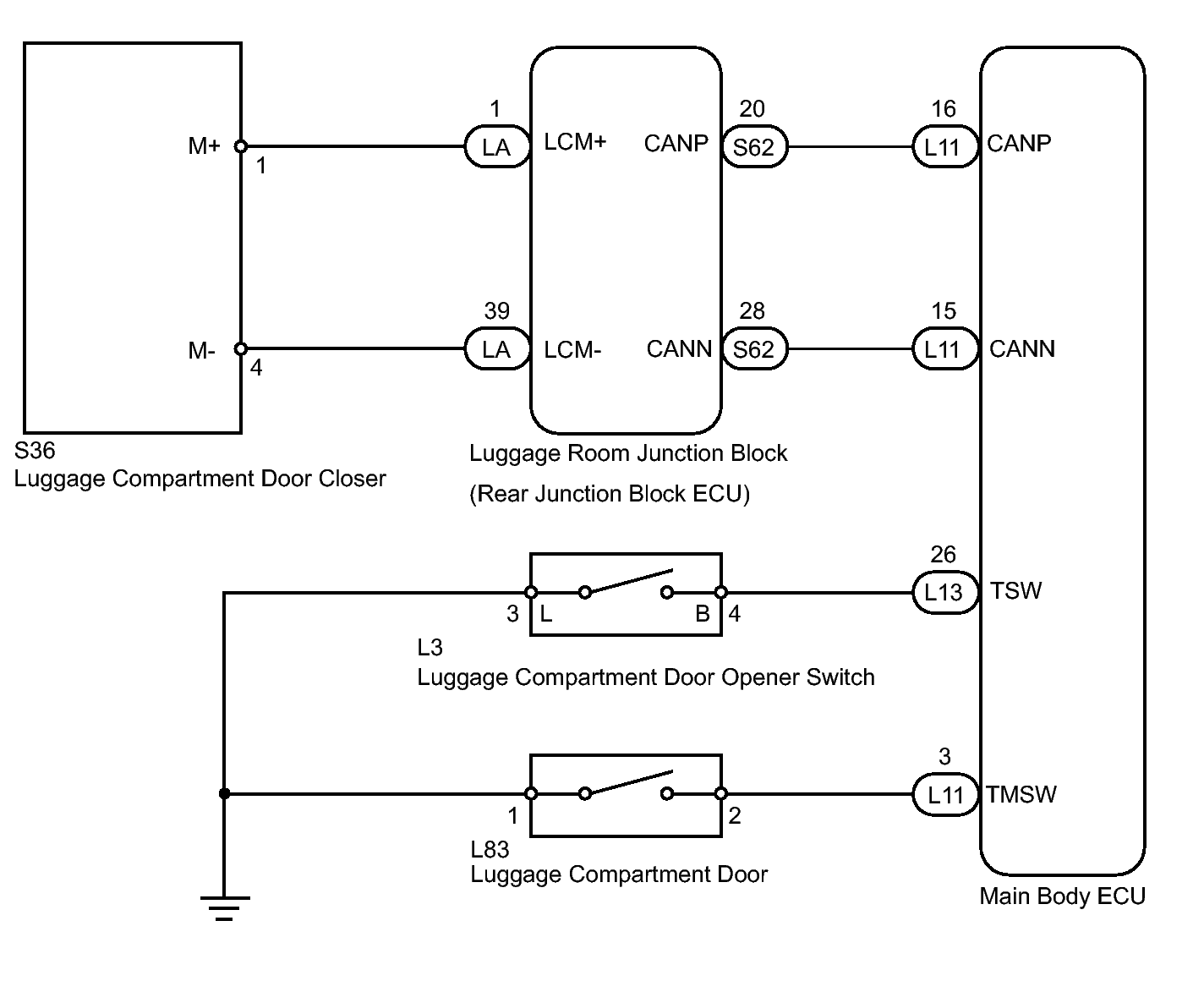

Fig 1: Luggage Compartment Door And Main Body ECU - Wiring Diagram

GTY288811

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
