Luggage Compartment Door Opener does not Operate: Procedure

1. Select the Active Test, use the Techstream to generate a control command, and then check that the luggage closer motor operates.
   BODY NO. 4 (LUGGAGE ROOM JUNCTION BLOCK)



   Tester Display	Tester Part	Control Range	Diagnostic Note
   Trunk Lid Open	Operate luggage compartment door latch release	ON or OFF	-

   OK

   Luggage compartment door latch release motor is ON / OFF.

OK → See step   4

NG: Go to next step

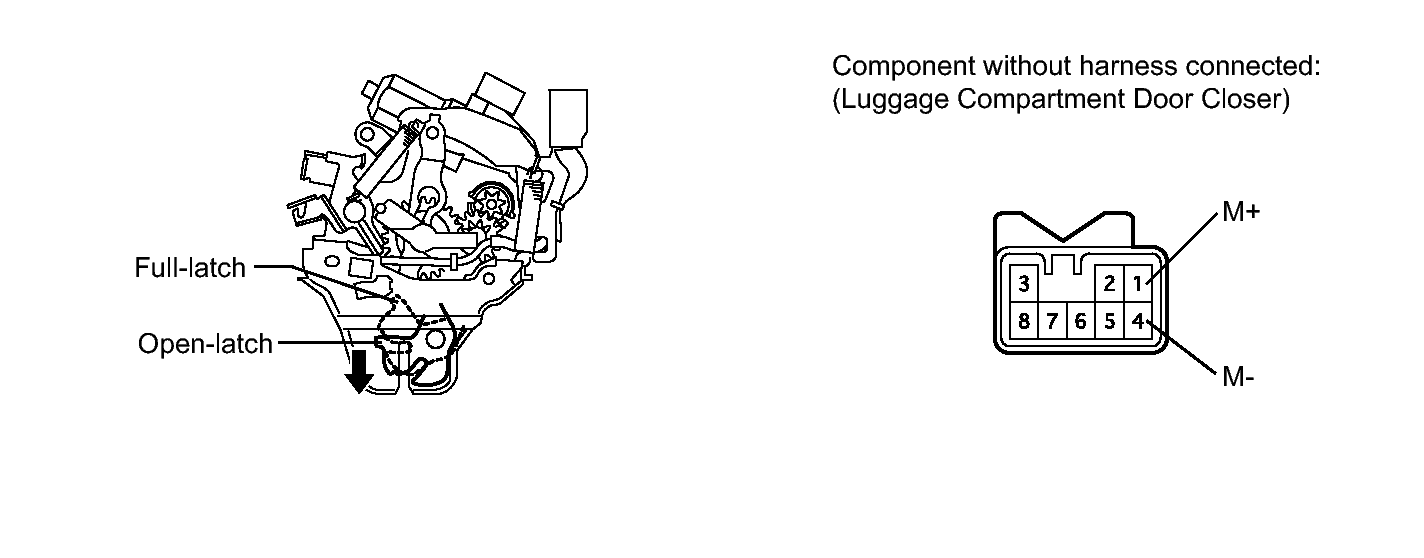

Fig 1: Identifying Luggage Compartment Door Closer Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the luggage compartment door closer. Refer to REMOVAL .
2. Set the door closer latch to the full latch position.
3. Apply battery voltage to the door closer connector and check the motor operation.

   OK

   Measurement Condition	Specified Condition
   Battery positive (+) → Terminal 1 (M+) Battery negative (-) → Terminal 4 (M-)	Luggage compartment door closer full-latch → open-latch

NG → See step   11

OK: Go to next step

Fig 2: Identifying LA Junction Block And S36 Closer Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the LA junction block connector.
2. Disconnect the S36 closer connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   LA-1 (LCM+) - S36-1 (M+)	Always	Below 1 Ω
   LA-39 (LCM-) - S36-4 (M-)	Always	Below 1 Ω
   LA-1 (LCM+) - Body ground	Always	10 kΩ or higher
   LA-39 (LCM-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE LUGGAGE ROOM JUNCTION BLOCK ASSEMBLY

1. Check the Data List for proper functioning of the luggage compartment door opener switch.
   MAIN BODY (MAIN BODY ECU)



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Trunk/BDoor Open SW	Luggage compartment door opener switch signal / ON or OFF	ON: Luggage compartment door opener switch is ON OFF: Luggage compartment door opener switch is OFF	-

   OK

   Display changes according to operation of luggage compartment door opener switch.

OK → See step   7

NG: Go to next step

Fig 3: Identifying Luggage Compartment Door Opener Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the luggage compartment door opener switch. Refer to REMOVAL .
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   3 (L) - 4 (B)	Luggage compartment door opener switch is ON	Below 1 Ω
   3 (L) - 4 (B)	Luggage compartment door opener switch is OFF	10 kΩ or higher

NG → See step   12

OK: Go to next step

Fig 4: Identifying L3 Switch And L13 ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the L3 switch connector.
2. Disconnect the L13 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   L3-4 (B) - L13-26 (TSW)	Always	Below 1 Ω
   L3-3 (L) - Body ground	Always	Below 1 Ω
   L3-4 (B) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE MAIN BODY ECU

1. Check the Data List for proper functioning of the luggage compartment door opener cancel switch.
   MAIN BODY (MAIN BODY ECU)



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Trunk Main SW	Luggage compartment door opener cancel switch signal / ON or OFF	ON: Luggage compartment door opener cancel switch is ON OFF: Luggage compartment door opener cancel switch is OFF	-

   OK

   Display changes according to operation of luggage compartment door opener cancel switch.

OK → See step   10

NG: Go to next step

Fig 5: Identifying Luggage Compartment Door Opener Cancel Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the luggage compartment door opener cancel switch. Refer to REMOVAL .
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   1 - 2	ON	Below 1 Ω
   1 - 2	OFF	10 kΩ or higher

NG → See step   13

OK: Go to next step

Fig 6: Identifying L83 Switch And L11 ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the L83 switch connector.
2. Disconnect the L11 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   L83-2 - L11-3 (TMSW)	Always	Below 1 Ω
   L83-1 - Body ground	Always	Below 1 Ω
   L83-2 - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE MAIN BODY ECU

1. Temporarily replace the luggage room junction block with a new or normally functioning one.
2. Check that the luggage door opener system is normal.

   OK

   Luggage door opener system is normal.

NG → REPLACE MAIN BODY ECU

OK → END (LUGGAGE ROOM JUNCTION BLOCK ASSEMBLY IS DEFECTIVE)
