Only Front Switch Cannot Operate Rear Sunshade: Wiring Diagram

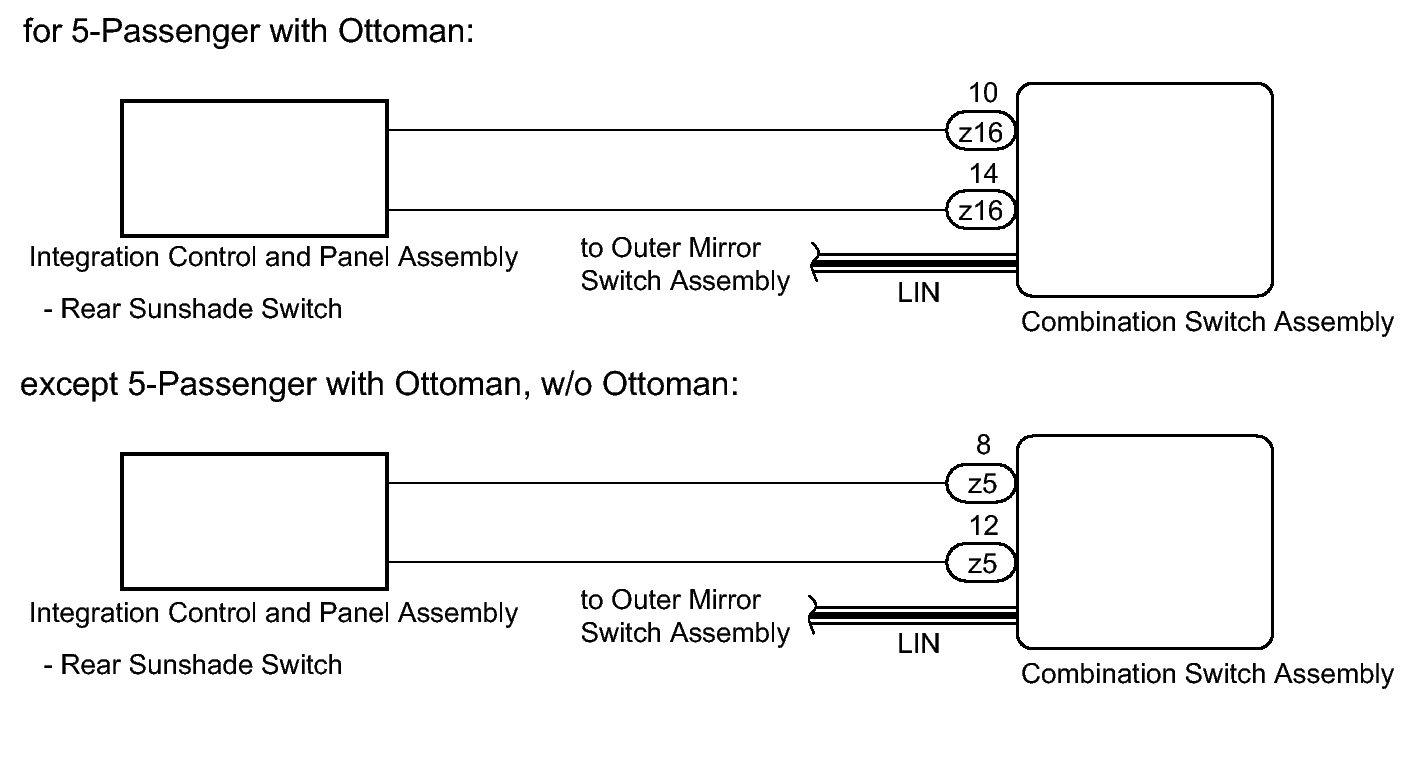

Fig 1: Only Front Switch Wiring Diagram

GTY261292

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
