Instrument Panel Safety Pad: Reassembly: Reassembly

HINT:

A bolt without a torque specification is shown in the standard bolt chart. Refer to SPECIFIED TORQUE FOR STANDARD BOLTS .

1. INSTALL AUTOMATIC LIGHT CONTROL SENSOR
   Fig 1: Installing Solar Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Attach the 2 claws to install the automatic light control sensor.
2. INSTALL NO. 1 DEFROSTER NOZZLE GARNISH
   Fig 2: Identifying No. 1 Defroster Nozzle Garnish Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Attach the 6 claws to install the No. 1 defroster nozzle garnish.
3. INSTALL NO. 2 DEFROSTER NOZZLE GARNISH
   Fig 3: Identifying No. 2 Defroster Nozzle Garnish Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Attach the 6 claws to install the No. 2 defroster nozzle garnish.
4. INSTALL NO. 1 METER HOOD RETAINER
   Fig 4: Identifying No. 1 Meter Hood Retainer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Install the 2 No. 1 meter hood retainers with the 2 screws.
5. INSTALL NO. 2 INSTRUMENT PANEL WIRE

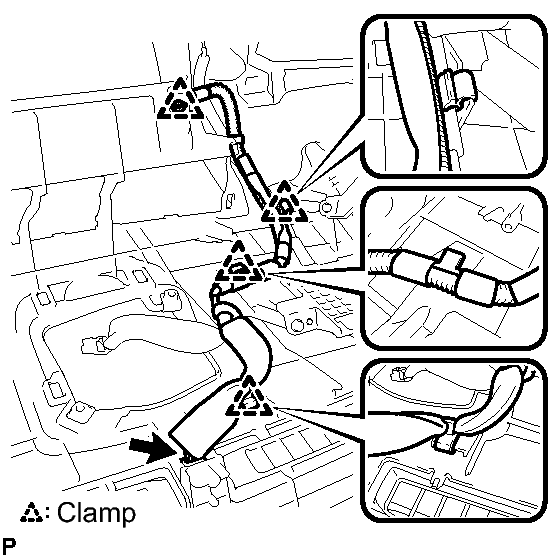

   Fig 5: Identifying No. 2 Instrument Panel Wire Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Attach the 4 clamps to install the No. 2 instrument panel wire.
   2. Connect the connector.
6. INSTALL NAVIGATION ANTENNA ASSEMBLY (for DVD)  . Refer to INSTALLATION - Step 2
7. INSTALL NAVIGATION ANTENNA ASSEMBLY (for HDD)  . Refer to INSTALLATION - Step 1
8. INSTALL TIRE PRESSURE WARNING ECU
   Fig 6: Identifying Tire Pressure Warning ECU And Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Install the tire pressure warning ECU with the bolt.
9. INSTALL NO. 2 HEATER TO REGISTER DUCT
   Fig 7: Identifying No. 2 Heater To Register Duct Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Install the No. 2 heater to register duct with the 2 screws.
10. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY  . Refer to INSTALLATION - Step 1
11. INSTALL NO. 3 HEATER TO REGISTER DUCT
    Fig 8: Identifying No. 3 Heater To Register Duct Screws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the No. 3 heater to register duct with the 3 screws.
12. INSTALL NO. 1 HEATER TO REGISTER DUCT
    Fig 9: Identifying No. 1 Heater To Register Duct Screws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the No. 1 heater to register duct with the 3 screws.
13. INSTALL NO. 1 INSTRUMENT PANEL PIN
    Fig 10: Identifying No. 1 Instrument Panel Pin Screws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the 2 No. 1 instrument panel pins with the 2 screws.
14. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT
    Fig 11: Identifying No. 2 Side Defroster Nozzle Duct Screw

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the claw to install the No. 2 side defroster nozzle duct.
    2. Install the screw.
15. INSTALL DEFROSTER NOZZLE ASSEMBLY
    Fig 12: Identifying Defroster Nozzle Assembly Screws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the defroster nozzle with the 3 screws.
16. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT
    Fig 13: Identifying No. 1 Side Defroster Nozzle Duct Screw

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the claw to install the No. 1 side defroster nozzle duct.
    2. Install the screw.
17. INSTALL ENGINE SWITCH
    Fig 14: Identifying Claws And Switch

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the 2 claws to install the engine switch.
