Luggage Compartment Door Closer does not Operate: Wiring Diagram

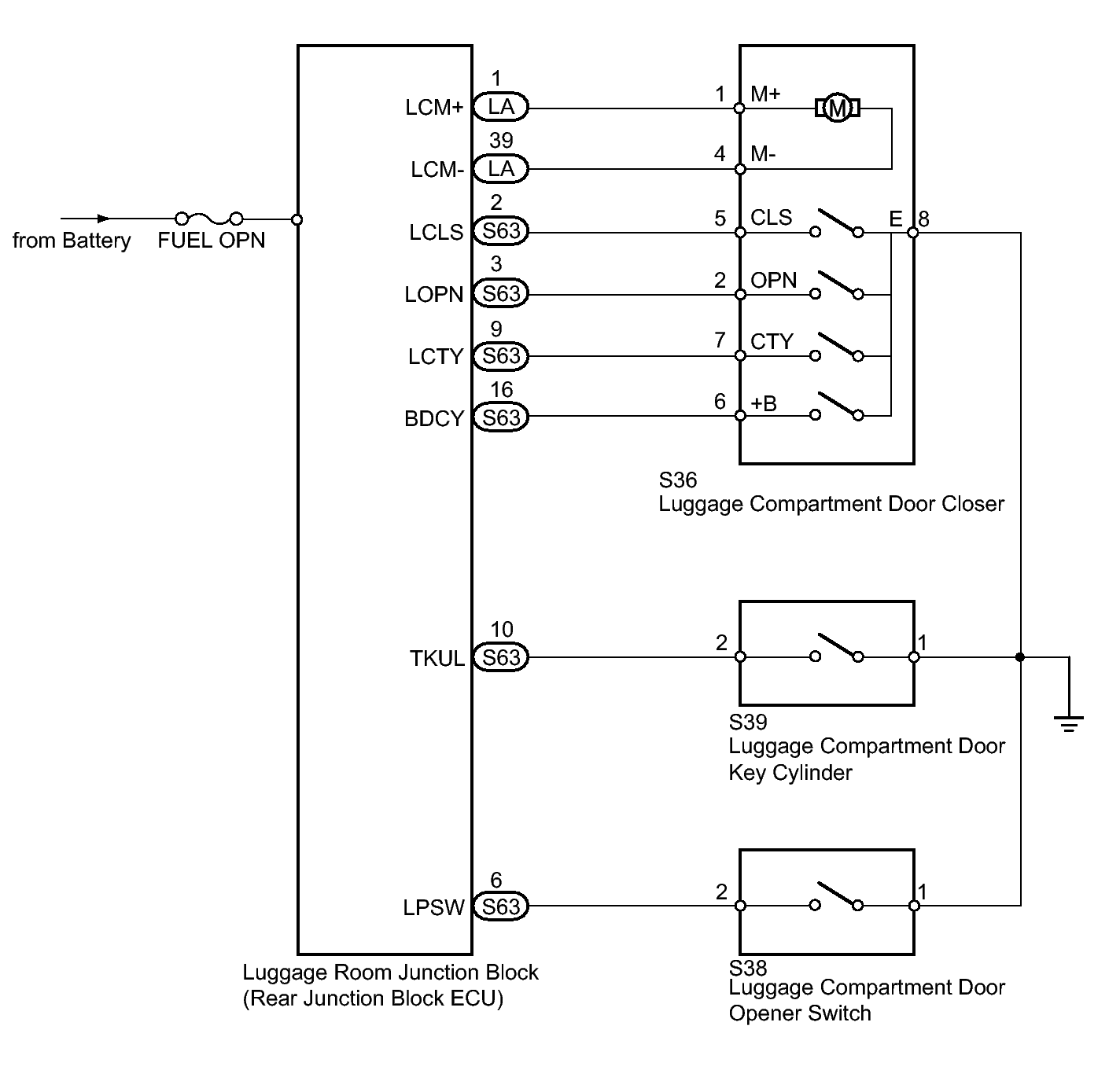

Fig 1: Luggage Compartment Door Closer - Wiring Diagram

GTY288816

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
